4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters

4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters

  • 4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters
4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-M
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Multi-function Commercial Meter Connection: Direct Connection
Com Port: RS485, Optical Port Weight: 1.5 Kg
Display: Backlit LCD 6+2 Digits And Icons Accuracy: Class 1s 2s
Terminal Cover: Short Cover Bore: 9 Mm
High Light:

digital kwh meter


amr electric meter

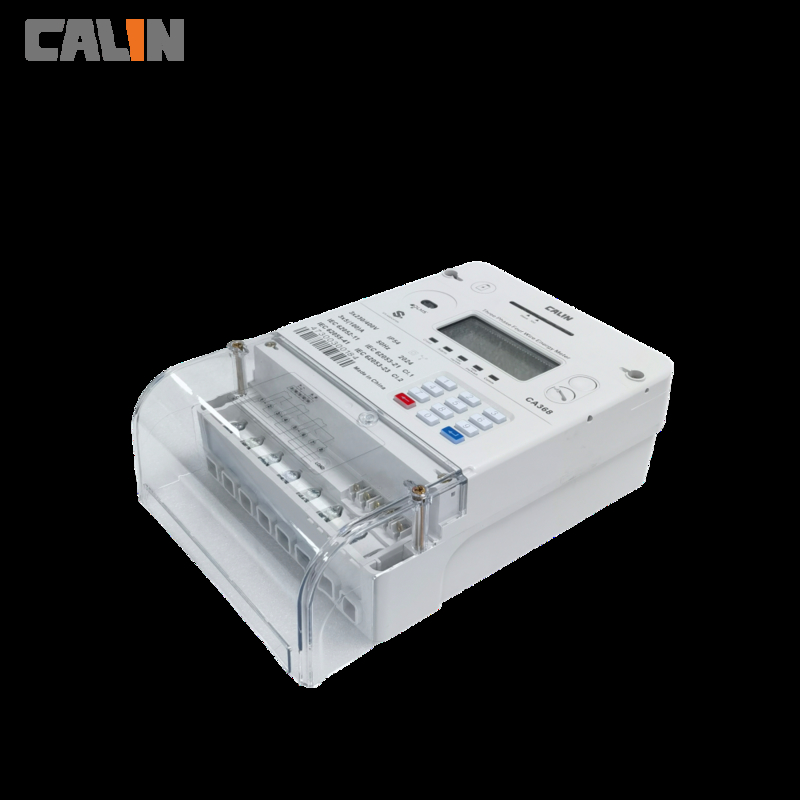

4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters


The CA368-M is an upgraded multi-function three phase four wire electric meter for light commercial and inustrial metering applications. It can record active and reactive energy consumption primarily in three phase four wire networks and provides up to four tariffs. The meter can operate in four-wire networks in one, two or three phase configurations as well as three-wire networks. The meter conforms to IEC 62053, EN 50670 (MID) in its mechanical specification and is applicable to be installed in any situation that also meets these standards.


The meter is designed to reserve space for extended functional modules and intended for AMR AMI high end functions by adding additional modules. The CA368-M is a superb bridge between the basic version of three phase and fully DLMS/COSEM compliant GSM / Ethernet high profile grid meters. It integrates the focus of measurement  and the extended data exchange features, enabling utility and service providers to not only know their customers' load status but also implement load management through intrusive controls via communication with the meter.



Featured functions

■ Wide range measurement from starting current to maximum current
■ Up to 6 rates possible
■ Large liquid crystal display with max. 8 digits for the value and high resolution
■ Button for scrolling display control
■ Optical interface
■ Optical test output



User benefits

1) Cost effective smart metering solutions

2) Wide selection of metrological values to be read both locally and remotely

3) Fraud detection and alarm for revenue protection

4) Modular design for extended metering and communication functionality

5) Low operational and inventory cost





Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage




Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant




Active energy to IEC62053‐21


Reactive energy to IEC62053‐23


Power Consumption


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Temperature range


Operation meter

25℃ to+70℃


40℃ to+85℃


Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections




Electro Magnetic Compatibility

Electrostatic discharges


Contact discharge


Air discharge


Electromagnetic RF fields


27MHz to 500MHz typical


100kHz to 1GHz typical


Fast transient burst test


Mechanical requirements


Protection Rating


Insulation Classification

Protective Class II

Maximum cable size

10 mm

4 Wire Three Phase Kilowatt Hour Meter 240V Prepayment Electricity Meters 0
