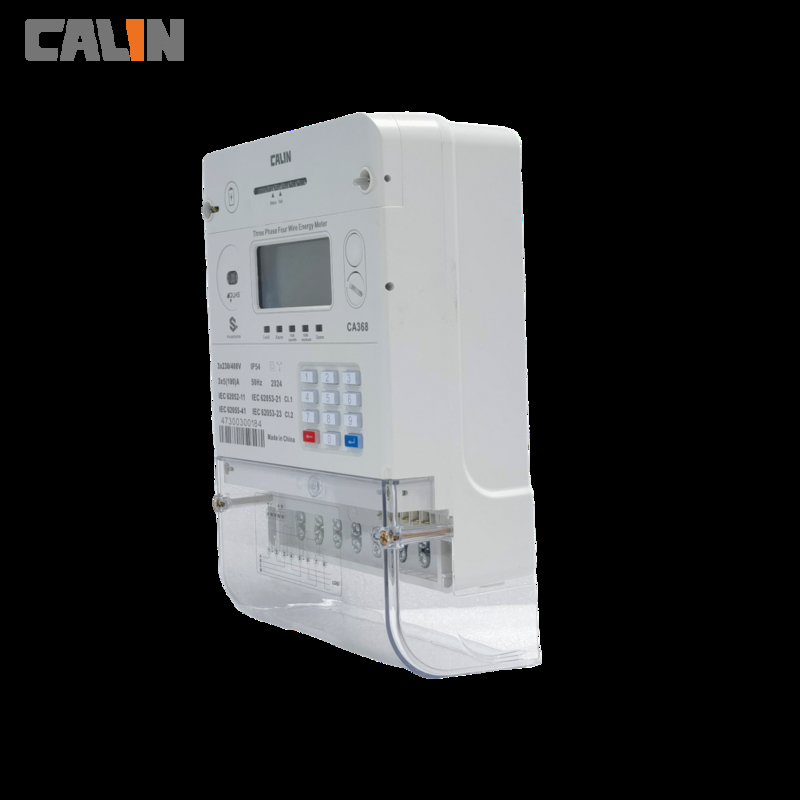

Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter

Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter

    • Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter
  • Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-DC

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Contractual Control Multi-rate Commercial Meter Connection: Direct And Transformer Connection
    Metrological: Load Profie MD Weight: 2.5 Kg
    Display: Backlit LCD 8 Digits With Icons Accuracy: Class 0.5s
    Communication: GSM Ethernet Bore: 10 Mm
    High Light:

    kwh power meter

    ,

    amr electric meter

    Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter



    The CA368-DC meter is specially built with GSM / GPRS connectivity features intended for real time data reading demand in a broad range of commercial and inustrial environments. It is a three  phase four wire electric meter in a compact BS footprint housing. The meter is compliant with IEC standard for active and reactive energy measurement and its terminal block is available for both direct whole current connection and transformer connection. The time in the meter is strictly counting as incrementing second index. This second index is synchronized with the real time in the central station server at preset interval, giving the utility maximum flexibility at system management and tariff calculation. This flexibiity offers the utility suffcient choices implementing different contractual control for each of the customer with no need to visit customer's premises from time to time.



    The GSM GPRS feature allows the meter to connect with a back-end central station for data exchange on a real time basis. This feature enables the utility and service providers to have a dynamic monitoring and control on the load in the grid and improve their  management at peak hours. The meter records grid maximum demand and load profiling data at programmed intervals and provides valuable information P, V, A, PF for the utility and customer as  well to budget their usage and balance the load.





    Features

    1) Contractual control flexibility to increase revenue protection

    2) Full compatibility and interoperability on the basis of open standard of DLMS /COSEM

    3) Modular design for extended AMI capabilities

    4) Metrological element measurement as voltage, current, power quality and harmonics.

    5) 4 channels maximum demand measurement and load profile recording

    6) Tamper protection

    7) Terminal block is available for both direct and transformer connection

    8) IEC 62056-21 and DLMS/COSEM compliant



    Key Benefits

    a) Connectivity with a back-end central station server for senoir data management

    b) Customized metrological data reading by adding additional modules

    c) Advanced load management features

    d) Low operational and inventory costs

    e) 24x7 online data exchange with the server

    f) Long life time with remote upgrade features



    Specifications:





    Electrical parameters

    Nominal voltage Un

    3x 220/230/ 240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm



    Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter 0

    Contractual Control Commercial Electric Meter Class 0.5S Three Phase Kwh Meter 1
