Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key

Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key

  • Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key
  • Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key
  • Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key
Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CAM368-K1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: 1P Three Phase BS Mounting Meter Box Mounting: British Standard 5685

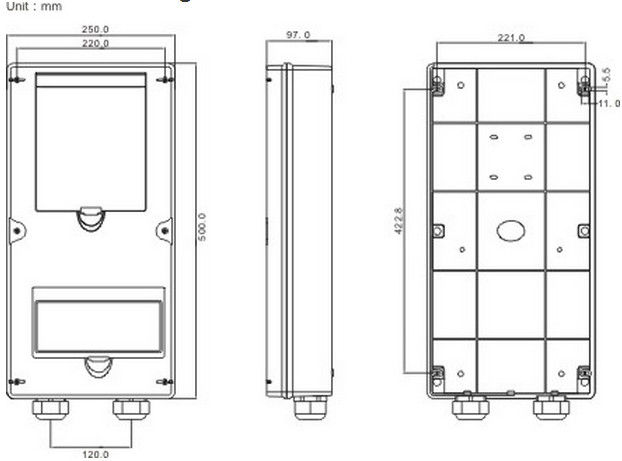

Dimension: 500x250x97 Mm Material: Polycarbonate With 10% Reinforced Glass Fiber
MCB: 1P Flame-Resistance: 960℃ Glow-wire Test As Per IEC60695-2-1
High Light:

electric service meter box

,

power meter box

Single Position Three Phase Electricity Meter Box IP54 With Hinges , Lock And Key

The CAM368-K1 Series Meter Box range is specifically designed for harsh African conditions and has a solution tailored for every location. The generous wiring room and well-located cable knockouts allow for a quick fit-off, every time. Meter Boxes come with a specially-designed hinged door, which can be removed for long bouts of maintenance or eventual door replacement. The ventilation louvers give them an IP54 rating, providing more than adequate protection from larger objects and direct water sprays into the enclosures.

 The full body covered design provides maximum security as well as safety to not only field technicians but also ordinary consumers, making the box immune to any tamper or illegal intrusion. This box type has been awarded contract in thousands of pieces in African tenders.

FUNCTIONS AND FEATURES:

• Compliant with BS5685 footprint mounting standards
• Flame resistant and fire retardant
 For both prepaid and smart meter
1P 20-60A MCB
• Easy clean and maitenance
• IP 54 protection rating
• With hinges, lock and key

User Benefit



1.      Fully covered design offers maximum security

2.      Folded edges for user safety protection and cable damage reduction

3.      Meter box door is removable and double-hinged for easy repairing and replacement

4.      Climate safe and corrosion free

5.      Rust protection and quality finish





Specifications:



Material   PC+10%GF
Display Window   Transparent
Keypad Operation

Operable (operation can be disabled upon utility’s order request)

Safety Protection

Operable breakers inside box

Flame-Resistance

Comply with requirements of 960℃ glow-wire test as per IEC60695-2-1

Fire Resistance Test

UL94-V0 Rated@1.5mm

Meter Installation

BS 5685

Insulation Level

No flashover and breakdown phenomenon under 50/60Hz sine wave 2000V/min

Heat Dissipation

Ventilation holes for cooling

Tamper Protection

Sealable with wire security seals

Climate Effect

Meter box won't crack and deform under the below temperature changes:
From high temp of 60℃±2℃for 4h to 20℃
From low temp of -30℃±3℃for 4h to 20℃

Compression
Resistance

Meter box won't crack and be damaged when a weight of 100kg with an area of 10×10cm² is put on the display window or any position for 3 minutes

Impact Resistance

With fixed screws tightening on the meter box, do the free-fall test from a height of 2m, the meter box is intact and shock resistant
