| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CAM168-B4 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 100,000pcs per month |
| Product Name: | 4P Single Phase Meter Box With Circuit Breaker | Mounting: | BS Footprint |
|---|---|---|---|
| Dimension: | 632x544x135 Mm | Material: | ABS With 10% Reinforced Glass Fiber |
| MCB: | 63A For Main 20-40A For Individual Of 4P | Insulation: | 2000V/min |
| High Light: | residential electric meter box,electric service meter box,4 Positions Electric Meter Box |
||

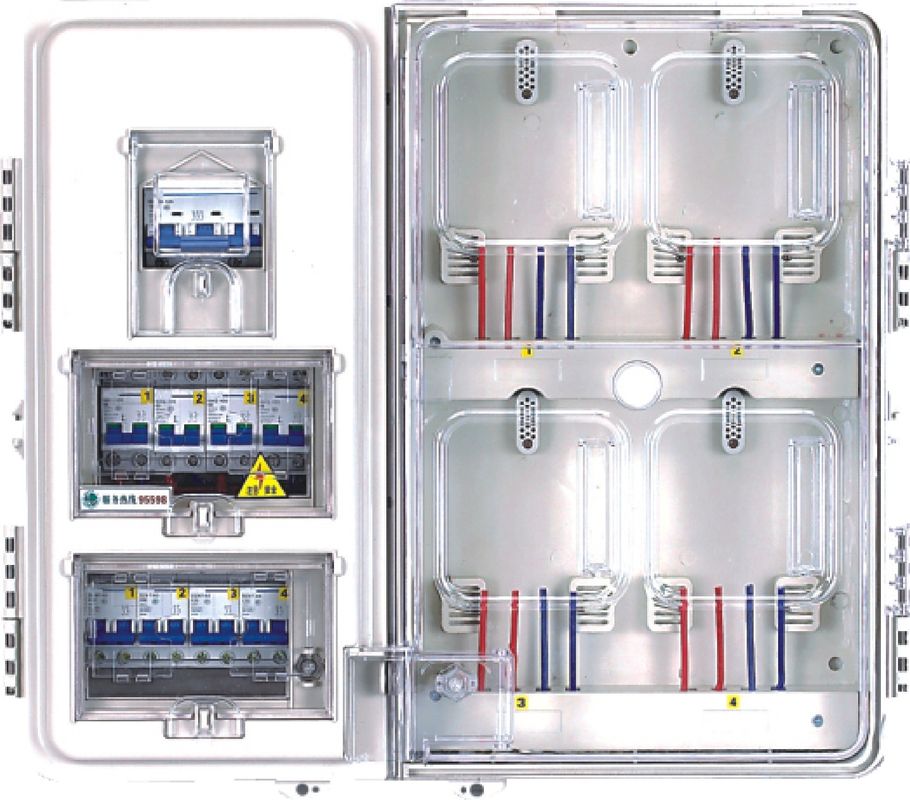

1 Phase Outside Electrical Meter Box 4 Positions For Main 20 - 40 A
The CAM168-B4 is equiped with a 63Amp main safety switch along with 20-40Amp MCBs for user safety precautions. It is a result of cost-effective concept for affordable as well as durable meter boxes.It is intended for accommodation of 4 pieces single phase electric meters either prepayment or smart. It is made of reinforced Polycarbonate (PC) engineering plastic and Glass Fiber(GF). This box has over million installations in and out of China market and has a superme reputation for its stability and durability. The CAM168-B4 is moisture-proof, impact resistant, anti-aging and corrosion, and UV-resistant, allowing to be installed in very severe environments. The sectional design of dividing meter from the MCB and main switch provides utmost safety to consumers and field technicians.
FUNCTIONS AND FEATURES:
a) British standard mounting installation
b) With wires and 4P MCB and a main switch
c) Transparent PC door
d) Fire retardant material
e) Compatible for prepay and smart meters
f) Rated IP 54 protection
g) With hinges, lock and key
h) Tamper sensor detects illegal door open
User Benefit
1) Easy installation and maintenance
2) Folded edges minimizing damages to users and cables
3) Double-hinged and removable, meter box door
4) Operatable under all climate conditions
5) Rust protection and quality finish
6) Din Rail models available
Specifications:
|
Material |
PC+10%GF |
|
Display Window |
Transparent |
|
Keypad Operation |
Operable (operation can be disabled upon utility's order request) |
|
Safety Protection |
Operable breaker inside box |
|
Flame-Resistance |
Comply with requirements of 960℃ glow-wire test as per IEC60695-2-1 |
|
Fire Resistance Test |
UL94-V0 Rated@1.5mm |
|
Meter Installation |
BS 5685 |
|
Insulation Level |
No flashover and breakdown phenomenon under 50/60Hz sine wave 2000V/min |
|
Heat Dissipation |
Ventilation holes for cooling |
|
Tamper Protection |
Seals |
|
Climate Effect |
Meter box won't crack and deform under the below temperature changes: From high temp of 60℃±2℃for 4h to 20℃ From low temp of -30℃±3℃for 4h to 20℃ |
|
Compression Resistance |
Meter box won't crack and be damaged when a weight of 100kg with an area of 10×10cm² is put on the display window or any position for 3 minutes |
|
Impact Resistance |
With fixed screws tightening on the meter box, do the free-fall test from a height of 2m, the meter box is intact and shock resistant |
