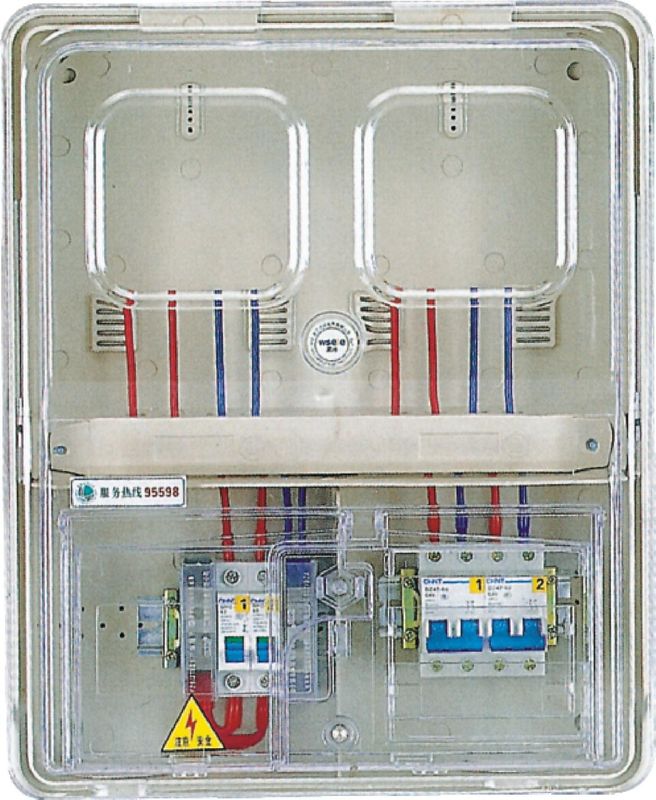

2 Positions Surface Mounted Electric Meter Box With Transparent Pc Door

2 Positions Surface Mounted Electric Meter Box With Transparent Pc Door

  • 2 Positions Surface Mounted Electric Meter Box  With Transparent Pc Door
  • 2 Positions Surface Mounted Electric Meter Box  With Transparent Pc Door
2 Positions Surface Mounted Electric Meter Box  With Transparent Pc Door
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CAM168-B2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: 2P Single Phase Meter Box Mounting: BS Footprint
Dimension: 402x211x135 Mm Material: ABS With 10% Reinforced Glass Fiber
MCB: 1P Insulation: 2000V/min
High Light:

electric service meter box

,

power meter box

,

Transparent Door Electric Meter Box

2 Positions Surface Mounted Electric Meter Box  With Transparent Pc Door



The CAM168-B2 is built up on the  cost-effective concept on the basis of CAM168-B1.It offers 2 positions for 2 pieces single phase electric meters either prepayment or smart. It is made of reinforced ABS engineering plastic and Glass Fiber(GF). This box has over million installations in and out of China market and has a high reputation for its stability and durability. The CAM168-B2 is  moisture-proof, impact resistant, anti-aging and  corrosion, and UV-resistant, allowing to be installed in very harsh environments. The sectional design of dividing meter from the MCB and circuit wire provides utmost safety to consumers and field technicians.



FUNCTIONS AND FEATURES:

a) British standard foot print installation

b) With wires and 2P MCB

c) Transparent PC door

d) Flame resistant material

e) Accommodates both prepay and smart meters

f) Easy installation and maintenance free

g) Rated IP 54 protection

h) With hinges, lock and key



User Benefit

1) Folded edges for user safety and minimizing damages to cables

2) Double-hinged and removable, meter box door

3) Tamper sensors to detect illegal intrusion

4) Operatable under all climate conditions

5) Rust protection and quality finish

6) Din Rail models available





Specifications:



Material

PC+10%GF

Display Window

Transparent

Keypad Operation

Operable (operation can be disabled upon utility's order request)

Safety Protection

Operable breaker inside box

Flame-Resistance

Comply with requirements of 960℃ glow-wire test as per IEC60695-2-1

Fire Resistance Test

UL94-V0 Rated@1.5mm

Meter Installation

BS 5685

Insulation Level

No flashover and breakdown phenomenon under 50/60Hz sine wave 2000V/min

Heat Dissipation

Ventilation holes for cooling

Tamper Protection

Seals

Climate Effect

Meter box won't crack and deform under

the below temperature changes:

From high temp of 60℃±2℃for 4h to 20℃

From low temp of -30℃±3℃for 4h to 20℃

Compression

Resistance

Meter box won't crack and be damaged when a weight of 100kg with an area of 10×10cm² is put on the display window or any position for 3 minutes

Impact Resistance

With fixed screws tightening on the meter box, do the free-fall test from a height of 2m, the meter box is intact and shock resistant
