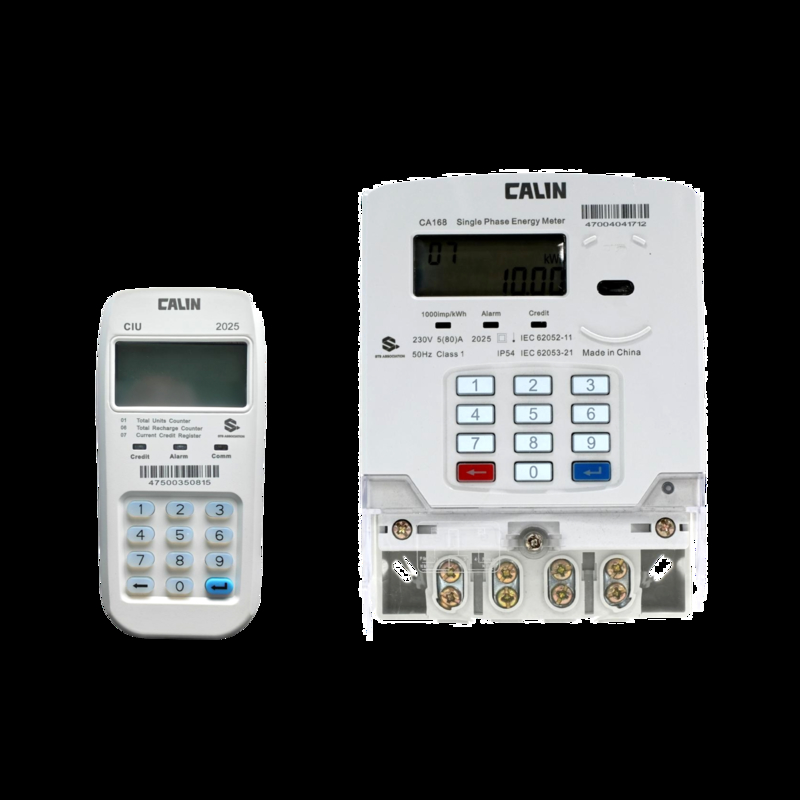

Product Name: Split Keyboard Prepayment Electricity Meter For Rural Grid Split Keypad: Optional
Dimensions: 155x120x52mm Weight: 700 G
Type: Prepaid Electricity Meter Accuracy: Class 1
Mounting: BS5685 Footprint Communication: PLC / RF
High Light:

electricity vending system

,

smart micro grid

Split Keyboard Prepayment Electricity Meter for Rural Grid

Smart Energy Meter for Mini Grid

The rural electricity system development in Africa still are confronted with many difficulties and challenges, about 500 millons people in Africa still have no access to electricity. In order to solve the problem, more and more mini grid developers start to build solar generating set in the remote area. The CA168 is special design for mini grid project with built-in international starndard prepayment algorithm, advanced keypad prepayment model, smart remotely data collection and analysis. The meter can trip automatically when the credit is used up, even though without connect with the master station, it works stand alone; Integrate with the local other payment platform for more convenient payment method; Remote connection makes monitoring power consumption in real-time or control the meter remotely.





RF & Kepad Prepayment



Revenue collection and monitor are two keys that each one of mini-grid or micro-grid developers want. Card type prepayment meter and PLC communication are frequently used solutions. However none of them fit into Mini-grid scenario.  Card type meters usually operate with its manufacturer's proprietary prepayment standard, therefore will not integrate with any other solution. Besides card meters need card contact for any top-up or data exchange, which in reality, gives a lot of trouble such as limit of POS business hours, card loss, card damage.   PLC may work in main grid. But mini-grid's unstable power flow vastly interferes PLC communication, which leads to connection loss.







AMR Solution

Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 0





Major Features

  1. Keypad prepayment
  2. Programmable under and over voltage trip
  3. Significant reverse energy measurement SRE
  4. Enhanced tamper detection
  5. Multi-Level alarm value enable setup
  6. Preset delayed reconnection
  7. IP 54 rating



 Utility benefits

  1. PLC/ RF / GPRS communication for AMR AMI features (On request)
  2. Time of Use (TOU) , multi-rate, holiday setting
  3. Easy and quick to install with exisiting wires
  4. 15 year designed life
  5. Enhanced revenue protection through flexible payment control





Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II
