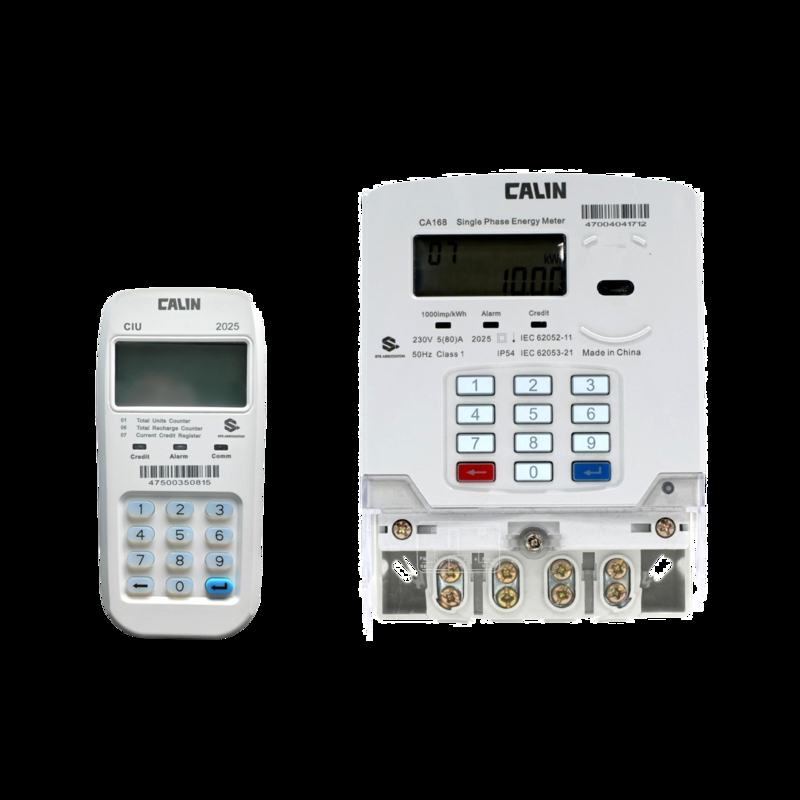

Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting

Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting

    • Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting
    • Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting
  • Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: STS/IEC/ISO
    Model Number: CA168

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Split Keyboard Prepayment Electricity Meter For Rural Grid Split Keypad: Optional
    Dimensions: 155x120x52mm Weight: 700 G
    Type: Prepaid Electricity Meter Accuracy: Class 1
    Mounting: BS5685 Footprint Communication: PLC / RF
    High Light:

    electricity vending system

    ,

    smart micro grid

    Split Keyboard Prepayment Electricity Meter for Rural Grid

    Smart Energy Meter for Mini Grid

    The rural electricity system development in Africa still are confronted with many difficulties and challenges, about 500 millons people in Africa still have no access to electricity. In order to solve the problem, more and more mini grid developers start to build solar generating set in the remote area. The CA168 is special design for mini grid project with built-in international starndard prepayment algorithm, advanced keypad prepayment model, smart remotely data collection and analysis. The meter can trip automatically when the credit is used up, even though without connect with the master station, it works stand alone; Integrate with the local other payment platform for more convenient payment method; Remote connection makes monitoring power consumption in real-time or control the meter remotely.





    RF & Kepad Prepayment



    Revenue collection and monitor are two keys that each one of mini-grid or micro-grid developers want. Card type prepayment meter and PLC communication are frequently used solutions. However none of them fit into Mini-grid scenario.  Card type meters usually operate with its manufacturer's proprietary prepayment standard, therefore will not integrate with any other solution. Besides card meters need card contact for any top-up or data exchange, which in reality, gives a lot of trouble such as limit of POS business hours, card loss, card damage.   PLC may work in main grid. But mini-grid's unstable power flow vastly interferes PLC communication, which leads to connection loss.







    AMR Solution

    Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 0





    Major Features

    1. Keypad prepayment
    2. Programmable under and over voltage trip
    3. Significant reverse energy measurement SRE
    4. Enhanced tamper detection
    5. Multi-Level alarm value enable setup
    6. Preset delayed reconnection
    7. IP 54 rating



     Utility benefits

    1. PLC/ RF / GPRS communication for AMR AMI features (On request)
    2. Time of Use (TOU) , multi-rate, holiday setting
    3. Easy and quick to install with exisiting wires
    4. 15 year designed life
    5. Enhanced revenue protection through flexible payment control





    Specifications:



    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II







    Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 1Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 2Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 3Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 4Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 5Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 6Split Keyboard Smart Micro Grid System Smart Energy Meter BS5685 footprint Mounting 7
