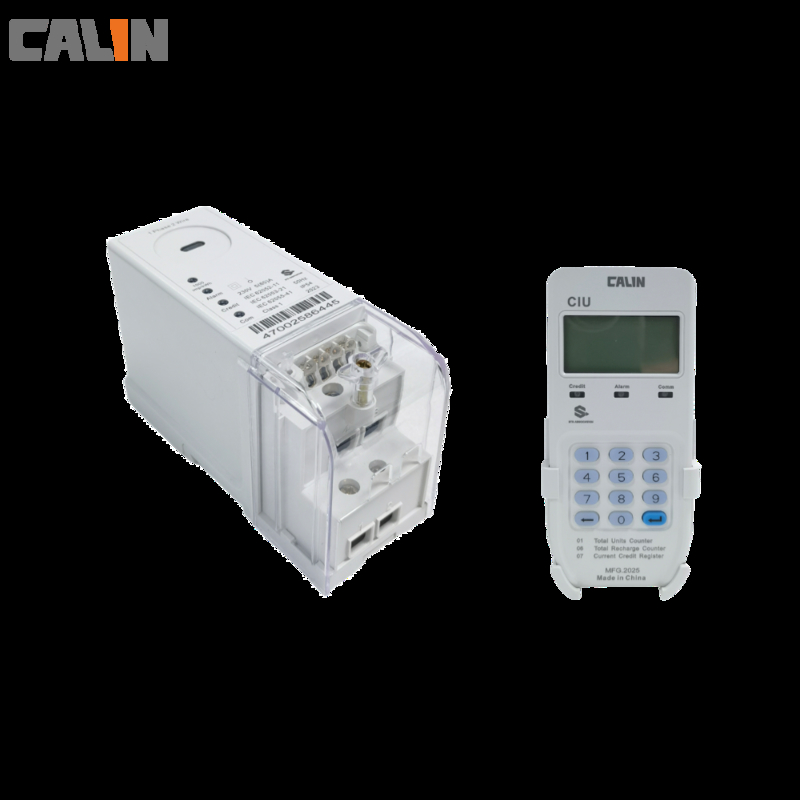

Ｍicro Grid STS Single Phase Power Meter Prepayment Keypad Electricity Meter With RF Communication

Ｍicro​ Grid STS Single Phase Power Meter Prepayment Keypad Electricity Meter With RF Communication

The CA168 is designed specifically for the Micro Grid system, consider low current in the micro grid, our single phase prepaid electricity meter support 5A, 16A, 40A, up to 60A. The CA168 is compliance with the STS (Standard Transfer Specification) prepayment system, the user need to pay for the power first, and the meter deduct the credits when the user consume the power; The meter will shut off the the power automatically when the credits be used up. The prepayment system is instrumental in your cash-flow. Furthermore, the CA168 support to implement the AMR/AMI system thanks to the built-in RF-Lora communication module, you can monitoring the comsumption of power, credit, etc.

Mobile Money Recharge Solution

Our vending system support to integrate in local mobile money platform, e-wallet, USSD, etc, lead to the users can pay online by phone, and get the Token through SMS by phone. We can provide a API port of vending software for integrating the other payment platform, our vending software will get a notice by API after the user paid, and then generate the Token according to the meter ID and recharge amount, send the Token by SMS to the user's phone. The user only need to input the Token manually.

Major Features

1. Compliance with STS (Standard Transfer Specification)
2. Detection of significant reverse energy (SRE)
3. IR communication port allowing for easy data integrrogation.
4. Disconnects on overload and no credit
5. Different tariffs for Dual power source can be setted up.
6. Programmable load limit and low credit warning
7. Terminal Cover open, reversal, black-out, etc events will be detected and record.
8. Easy to check the monthly historical consumption and last 10 token entered.

Specifications:
