35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication

35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication

    • 35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication
    • 35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication
    • 35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication
  • 35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: STS Single Phase Din-rail Split Keypad CIU Prepaid Electricity Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Connection Type: Two Wire/ PLC/ RF
    Recharge: 20 Digits Token Code
    High Light:

    electricity vending system

    ,

    smart micro grid

    Micro Grid 35mm Din Rail Keypad Prepaid Electricity minigrid offgrid rural Meter

    with RF Communication Remotely Monitoring

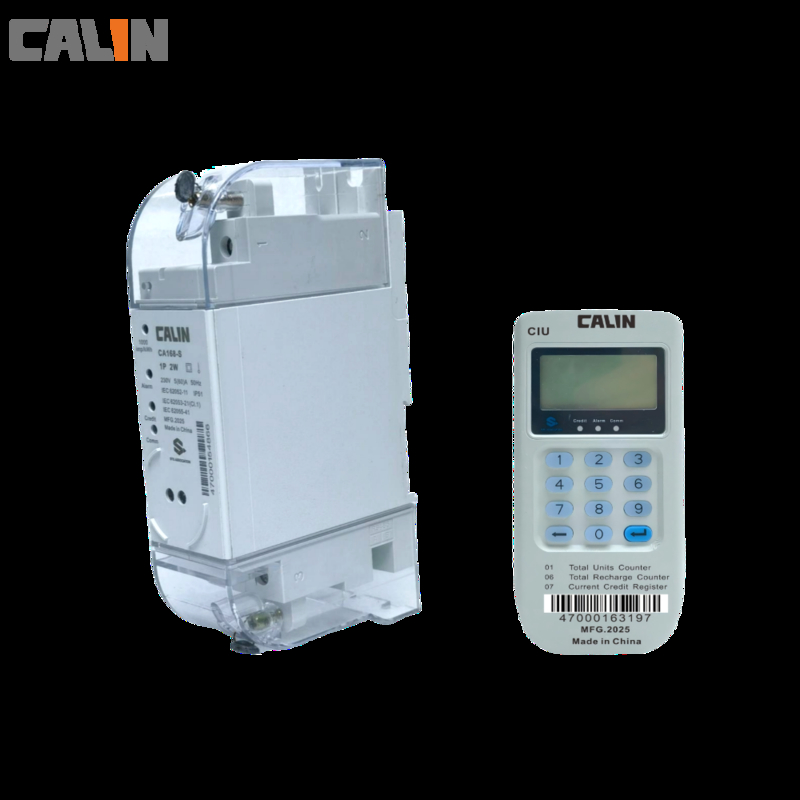

    The CA168-S is designed as split type, MCU(Main Control Unit) and UIU(User Interface Unit), connected by RF communication. It is suitable for Mini Grid (Micro Grid/Off Grid) solar PV generatation, can be used in 5A, 16A, 40A, 60A current. The meter build in prepayment algorithm which compliance with the STS (Standard Transfer Specification) protocol, the meter will shut off the power automatically when the credit is used up even though there is no any communication between meter and system.



    Due to the in-built RF communication in the MCU, the AMR management system can be developed for you to monitoring the meter consumption, collect data from the meter (Credits, consumption, events, etc) and remotely control. The DCU(Data Concentrator Unit) collect the data from the nearby meters by RF, and then upload the data to the system by GPRS.



    35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 0



    Major Features



    1. 20 digit (Standard Transfer Specification) STS encryption
    2. Up to 80A current with Class 1 accuracy
    3. Disconnects on overload and no credit
    4. Programmable power limit and low credit warning
    5. Adjustable power limit trip
    6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.
    7. Reverse energy measurement SRE
    8.  Information toggled by codes
    9.  Tamper trip protection : neutral missing



     Other Benefits

    a) Compact and slim-line design

    b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

    c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

    d) 15 year designed life

    e) Enhanced revenue protection through flexible payment control





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 135mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 2

    35mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 335mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 435mm Keypad Prepaid Din Rail Power Meter High Accuracy With RF Communication 5
