    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Mini Grid Single Phase Prepaid Kwh Meter Latch Relay: Build-in
    Dimensions: 155x120x52mm Weight: 700 G
    Consumption Rate: 1000 Imp/kWh Accuracy: Class 1
    Data Port: Infrared Optical Split Keypad: Optional
    Communication: RF
    High Light:

    electricity vending system

    ,

    smart micro grid

    Mini Grid PV Solar Generator Single Phase Prepaid Kwh minigrid offgrid rural Meter

    with Monitoring Remotely

    Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.

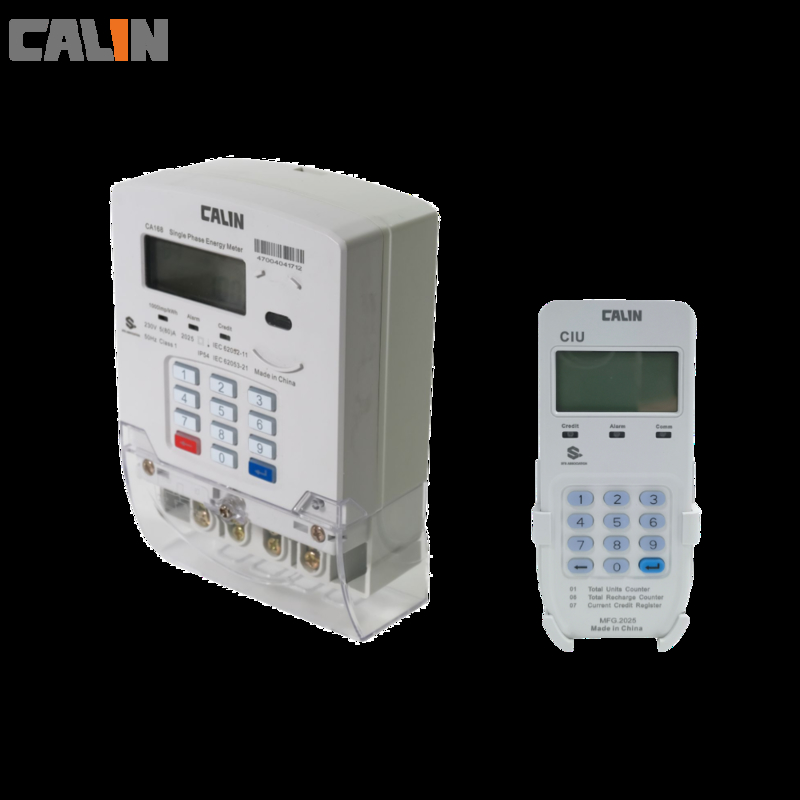

    Monitoring Remotely Smart Micro Grid System PV Solar Generator Prepaid Kwh Meter 0



    Major Features

    1. 20 digit (Standard Transfer Specification) STS encryption
    2. Detection of significant reverse energy (SRE)
    3. IEC62056-21 compliant port allowing for easy data interrogation
    4. Disconnects on overload and no credit
    5. Dual power source working on both prepaid and credit mode
    6. Programmable load limit and low credit warning
    7. Detection and record tamper event such as cover open, reversal, black-out, etc.
    8. Easy access to 12 months historical consumption data and last 5 token entered



     Utility benefit

    1. Easy connection to User Interface Unit (UIU) for split type applications
    2. RF / GPRS wireless communication with a head-end AMR/AMI server
    3. Time of Use (TOU), multi-tariff, holiday setting.
    4. Advanced load control and disconnection features





    Specifications:



    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II



     Monitoring Remotely Smart Micro Grid System PV Solar Generator Prepaid Kwh Meter 1Monitoring Remotely Smart Micro Grid System PV Solar Generator Prepaid Kwh Meter 2Monitoring Remotely Smart Micro Grid System PV Solar Generator Prepaid Kwh Meter 3





    Monitoring Remotely Smart Micro Grid System PV Solar Generator Prepaid Kwh Meter 4
