Single Phase IP54 RF Module Off Grid 35mm Din Rail

Single Phase IP54 RF Module Off Grid 35mm Din Rail

    • Single Phase IP54 RF Module Off Grid 35mm Din Rail
  • Single Phase IP54 RF Module Off Grid 35mm Din Rail

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Mini Grid STS Single Phase Din Rail Mounted Kwh Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1
    Standard: IEC/SABS Connection Type: Two Wire/ PLC/ RF
    Recharge: 20 Digits Token Code
    High Light:

    Off Grid Din Rail Meter

    ,

    35mm Din Rail

    ,

    Din Rail Kwh Meter

    Solar PV Plants for MiniGrid offGrid Rural Single Phase Din Rail Mounted Kwh Meter With Customer Interface Unit

    With extremely rapid growth of solar PV plants in Africa and South Asia, more and more remote area get electricity power. Those solar PV plants be called mini-grid, micro grid or off grid, effectively provide necessary electricity for daily usage, lighting, phone charge, radio and TV. In order to ensure that the provider of solar PV generation, it is necessary to meansure the power consumption so that the provide have enough profit to operate the plants, develop more plants, furthermore promote the prosperity of the whole Mini-Grid industry.

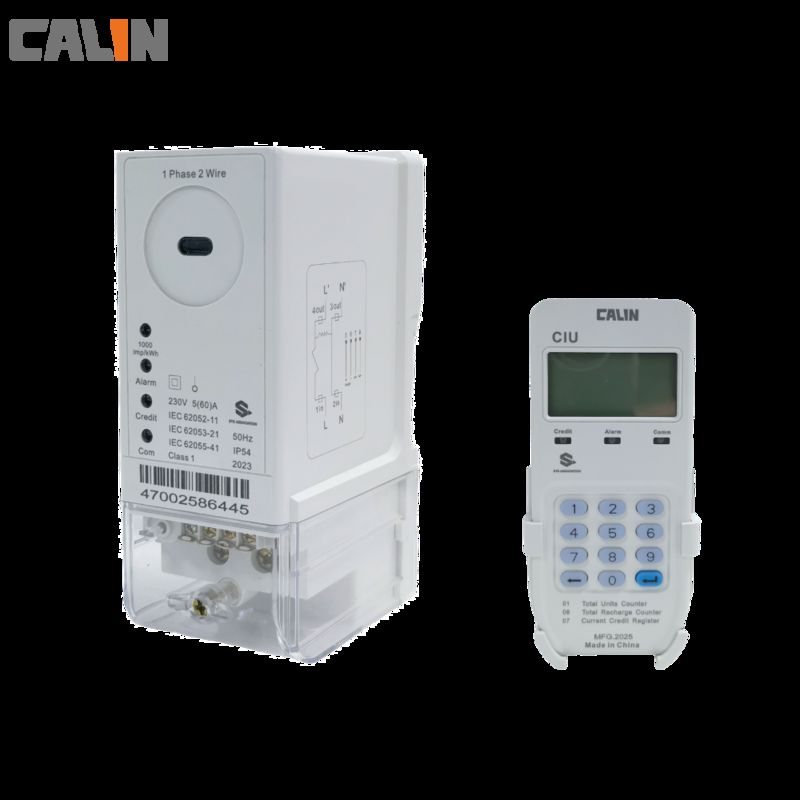

    The CA168-S is designed for accurate measurement and prepayment function. The project will have faster return of fund because of the prepayment function. As the DIN RAIL type, MCU(Main Control Unit) and CIU (Customer Interface Unit) design, The MCU (Main Control Unit) can be installed in a locked box or high electric pole, and only give the CIU to the users. The user can recharge for his meter, and query balance, recharge record and amount, etc by CIU. Also it is the most effective action for anti tamper.







    Major Features



    1. Compliance with the STS (Standard Transfer Specification) payment protocol
    2. Up to 80A current with Class 1 accuracy
    3. Automatically disconnect for overload or  no credit
    4. Programmable power limit and low credit warning
    5. Adjustable power limitation
    6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.
    7. Reverse energy measurement SRE
    8.  Information toggled by codes
    9.  Tamper trip protection : neutral missing



     Other Benefits

    a) Compact and slim-line design

    b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

    c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

    d) 15 year designed life

    e) Enhanced revenue protection through flexible payment control





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Single Phase IP54 RF Module Off Grid 35mm Din Rail 0Single Phase IP54 RF Module Off Grid 35mm Din Rail 1

    Single Phase IP54 RF Module Off Grid 35mm Din Rail 2Single Phase IP54 RF Module Off Grid 35mm Din Rail 3Single Phase IP54 RF Module Off Grid 35mm Din Rail 4
