2W RS485 LCD Display Three Phase Dual Tariff Meter

2W RS485 LCD Display Three Phase Dual Tariff Meter

  • 2W RS485 LCD Display Three Phase Dual Tariff Meter
  • 2W RS485 LCD Display Three Phase Dual Tariff Meter
2W RS485 LCD Display Three Phase Dual Tariff Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Nigeria MAP Three Phase Dual Tariff Smart Meter Asset Provider Program Standard: SANS1524-1 , IEC62056-21 , IEC62053-11
Dimensions: 272x127x77mm Weight: 2.5kg
Display: LCD Accuracy: Class 1s
Phase: Three Phase Electricity Meter Communication: RS485/PLC /RF/GSM/GPRS
Output Voltage: 220v/230v/240v Rural: Minigrid Offgrid Rural Electrification
High Light:

Three Phase Dual Tariff Meter


RS485 Dual Tariff Meter


2W Three Phase Electricity Meter

Nigeria MAP Three Phase dual tariff Smart meter asset provider program

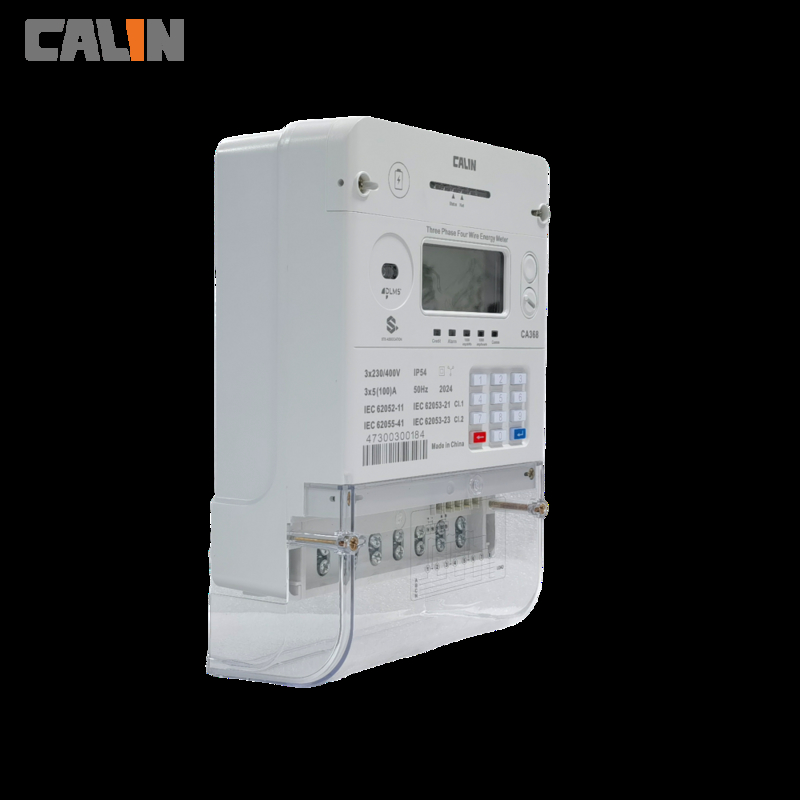

The CA368 is designed for high-power solar Mini Grid or main line measurement. The CA368 is BS footprint and three phase four wires meter, which can bear 10 A to 100 A current, the voltage of each phase is 230V (60%~120% Un). Furthermore, the CA368 is designed as STS keypad prepaid meter, operating the prepaid function based on the 20 digits STS Token, the meter will shut off the power automatically when the user consume all credits in the meter.
Built in a RF communication module for the CA368, will lead to the CA368 can support to developing a AMR management system. The data concentrator collect the data from nearby RF three phase prepaid smart meters by RF communication, and then upload the data to our cloud server by GPRS. You can remotely reading and monitoring the meters, and also can switch on/off the relay remotely.





Main Features
Compliance with STS (Standard Transfer Specification)
IR optical & RS485 port
Automatically shut off power when Credit be used up
Power limit and low credit warning can be programed flexibly.
Tamper detection and event record such as opening cover, reverse connection, black-out
Dual power source working on both prepayment and credit mode
Maximum demand measurement and load profiling (on request)
User Benefit
BS footprint, easy to install
Low operational and manintenance cost
PLC/ RF/ GPRS/GSM communication for AMR/AM I features on your request
Meter provides various valuable information by punching in Calin's short codes

Electrical parameters:

Nominal voltage Un


Limited voltage




Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant




Active energy to IEC62053‐21


Reactive energy to IEC62053‐23


Power Consumption


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Temperature range


Operation meter

25℃ to+70℃


40℃ to+85℃


Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections




Electro Magnetic Compatibility

Electrostatic discharges


Contact discharge


Air discharge


Electromagnetic RF fields


27MHz to 500MHz typical


100kHz to 1GHz typical


Fast transient burst test


Mechanical requirements


Protection Rating


Insulation Classification

Protective Class II

Maximum cable size

10 mm



2W RS485 LCD Display Three Phase Dual Tariff Meter 0

2W RS485 LCD Display Three Phase Dual Tariff Meter 1
2W RS485 LCD Display Three Phase Dual Tariff Meter 22W RS485 LCD Display Three Phase Dual Tariff Meter 32W RS485 LCD Display Three Phase Dual Tariff Meter 4
