Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |

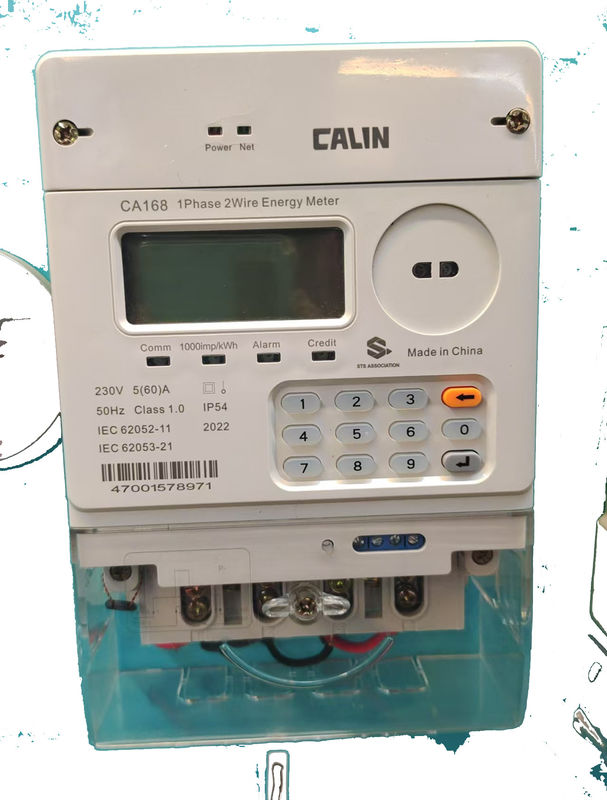

Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter |
Split Keypad: |
Optional |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Type: |
Prepaid Electricity Meter |
Accuracy: |
Class 1 |
Mounting: |
BS5685 Footprint |
Communication: |
PLC / RF |
Product Name: |
Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter |
Split Keypad: |
Optional |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Type: |
Prepaid Electricity Meter |
Accuracy: |
Class 1 |
Mounting: |
BS5685 Footprint |
Communication: |
PLC / RF |
A PLC (Power Line Communication) electricity meter is a device that measures electrical consumption and communicates data over power lines. This technology allows for the transmission of data without the need for additional wiring, utilizing existing electrical infrastructure to send information about energy usage back to a central system.
.
Major Features
Utility benefits
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
