BS Mounting Four Wire Three Phase Kilowatt Hour Meter With STS Compliant

BS Mounting Four Wire Three Phase Kilowatt Hour Meter With STS Compliant

    • BS Mounting Four Wire  Three Phase Kilowatt Hour Meter With STS Compliant
  • BS Mounting Four Wire  Three Phase Kilowatt Hour Meter With STS Compliant

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Triple Phase Keypad Prepayment Meter Mounting: British Standard 5685
    Dimensions: 265x170x77mm Weight: 2.5kg
    Display: LCD 8 Digits+icons Accuracy: Class 1s
    Com Port: Optical Infrared Cable Size: 10mm
    High Light:

    STS Prepayment meter

    ,

    sts meter

    BS Mounting Four Wire  Three Phase Kilowatt Hour Meter With STS Compliant

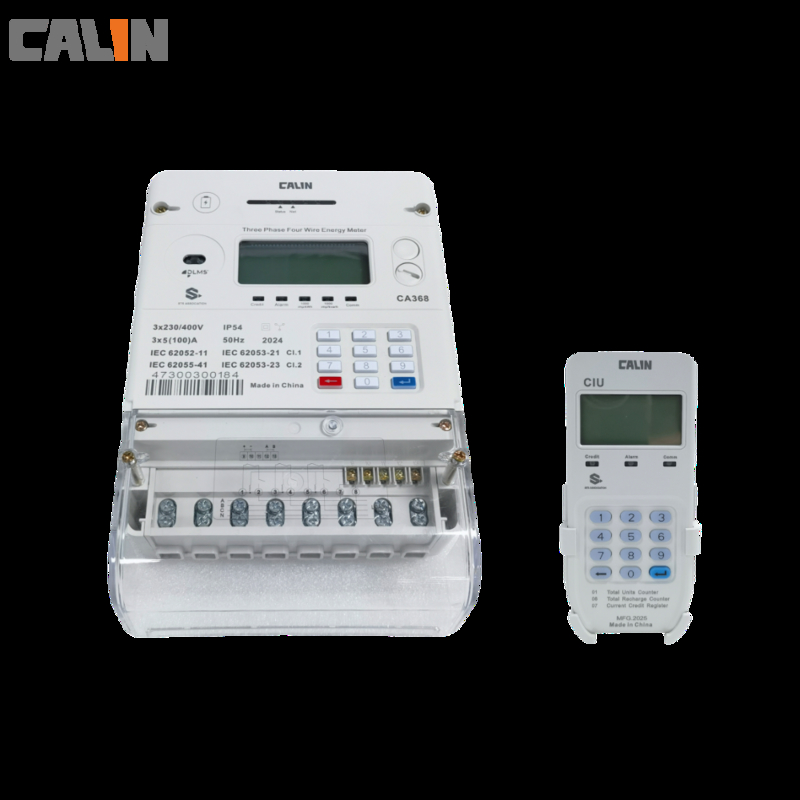

    The CA368 is  Calin's  triple phase four-wire prepayment meter. The maximum current allowed is 100 Amp per phase.  It is a  keypad based prepayment meter in a compact BS 5685 footprint mounting housing with a built-in load switch. The meter is applied for big residential houses, small commercial and industrial consumers.

    The meter is manufactured in accordance with ISO9001 standards. It is mechanical IP54 rated, working with a broad range of voltage ( Un -40% +20%) and improved RF immunity of 30V/m, allowing it to work in harsh environments. The  CA368 series provides measurement of active energy as default setting and reactive energy as optional. A 2400 bps baud rate optical communication port for data interrogation is also a standard spec.



    The CA368 is also available for a split type of connection to a customer interface unit as CU. CIU is a keypad based display unit. Meter information can be triggered and displayed by input different codes. Users can easily acquire metering data such as monthly usage, daily usage, present current and voltage, balance, and last five entered tokens.



    Major Features

    a) Standard Transfer Specification(STS) standard algorithm encryption

    b) RS485 and optical communication ports for data investigation

    c) Disconnects on overload and credit drains

    d) Adjustable load limit and low credit warning

    e) Tamper prevention and event record

    f) 12 months historical usage data and recall of last 5 sucessfully entered tokens

    g) Information display fucntion



    AMR/AMI Smart Metering Features (optional)

    1) Maximum demand measurement

    2) Operates in both prepayment and credit mode

    3) Split connection to User Interface Unit (UIU)

    4) Plug & Play PLC/ RF/ GPRS/GSM communication module for AMR/AMI applications

    5) Time of Use (TOU) / 4 tariffs /8 time divisions /100 holidays, multi-rate

    6) Advanced load control and disconnection features

    7) DLMS/COSEM , IEC62056 standard compliant









    Specifications:





    Electrical parameters:

    Nominal voltage Un

    3x220/230/240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
