Compliant Contactless IC Card Prepaid Gas Meter With Lcd Display , Lightweight

Compliant Contactless IC Card Prepaid Gas Meter With Lcd Display , Lightweight

  • Compliant Contactless IC Card Prepaid Gas Meter With Lcd Display , Lightweight
Compliant Contactless IC Card Prepaid Gas Meter With Lcd Display , Lightweight
Product Details:
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Contact Now
Detailed Product Description
Dimension: 226x203x164mm Weight: 2.1kg
Material: Steel / Aluminum On Request Compensation: Temperature
Coating: Acrylic Finish Diagram: Convoluted
High Light:

smart gas meter

,

prepayment gas meter

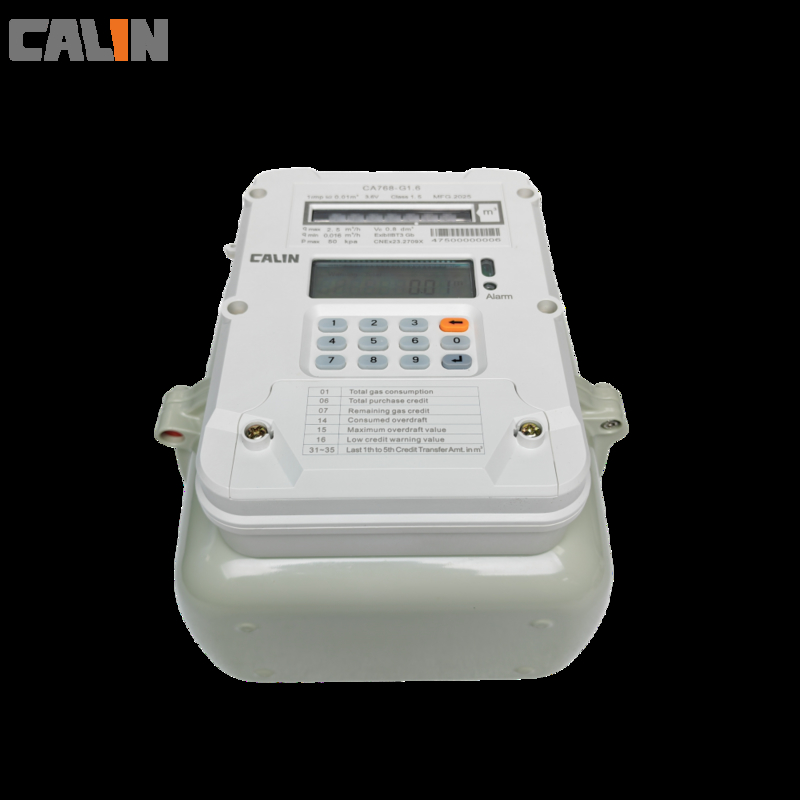

        STS Compliant Smart Contactless IC Card Prepaid Gas Meter with LCD Display



The CA768 is a prepayment gas meter adopting  contactless IC Card  to transfer recharge credit.  It is designed to accurately measure volumes of natural gas, town gas and etc. Along with continuously secured good metrology, this prepayment meter type shall serve as a revenue protection tool for service providers.



The contactless IC card is the token carrying all encrypted meter information and vending values. The encryption is built with latest STS standard. Thus the meter can be used with any STS compliant vending software loaded with proper SGC keyfiles.



Its stringent components selection meets highest demand standard in global market. I t is designed to increase customer satisfaction and save costs by providing long and reliable performance. For the past one decades, we rarely got any compliant from our customers.



Main Features

  • Molded, convoluted diaphragms for smooth operation and long life
  • Graphite-filled phenolic valves to minimize wear
  • Four chamber measurement module, 2 liters per revolution
  • Magnetically coupled index drive
  • Anti-reverse device deters tampering
  • Single coat polyester finish
  • Security seals that indicate tampering
  • Large, self-lubricating bearings
  • • Two-part epoxy primer and acrylic finish coat
  • • Automatic meter reader compatibility





Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Working Preesure Pa 0.5
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg) -10℃





Dimensions and diagram



Compliant Contactless IC Card Prepaid Gas Meter With Lcd Display , Lightweight 0
