Product Details
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Material: |
Steel |
Color: |
White |
Output: |
Pulse |
Type: |
Diaphragm |
Valve: |
Bakelite Phenolic |
Gas Type:: |
Natural Gas, Town Gas Liquefied Petroleum Gas |
Material: |
Steel |
Color: |
White |
Output: |
Pulse |
Type: |
Diaphragm |
Valve: |
Bakelite Phenolic |
Gas Type:: |
Natural Gas, Town Gas Liquefied Petroleum Gas |

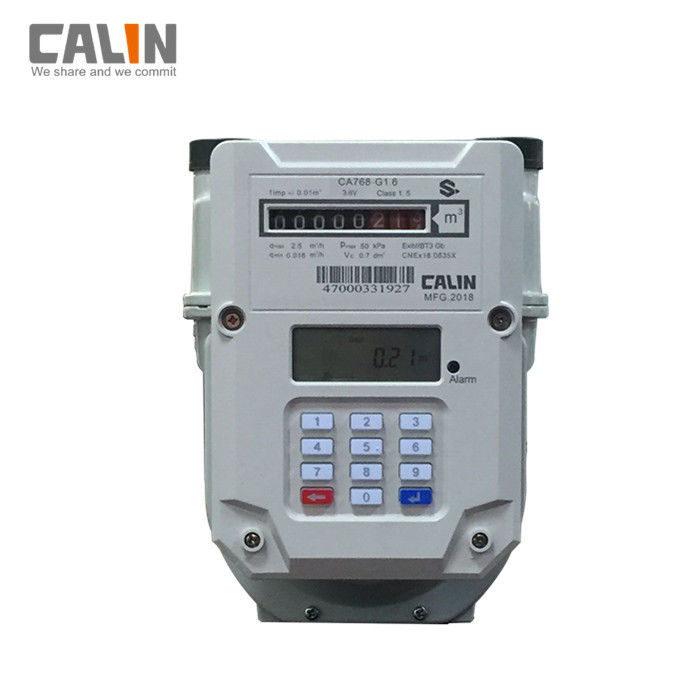

Calinmeter is a leader in STS smart prepayment metering in China. As number 47th STSA member, Calin has more than 10 years experience in STS metering. The CA768 is a successful migitation from STS electric to gas meter. The base body meter is designed to accurately measure volumes of natural gas, town gas liquefied petroleum gas etc. STS compliant electronic control unit is added as perfect revenue protection facility at the same time. Calin STS gas meter are being supplied to Iraq, Pakistan, Indonesia, Mexico, Kenya, Tanzania, and many other countries and regions.
Calin gas meter can work with a customer interface unit keypad (CIU) via wireless connection. CIU is installed within customer's premise when the meter is installed and locked away. Customer use CIU to check for balance, and topup history, and most importantly remotely enter recharge token code.
.
Main Features
Full coverage of G1.6, G2.5 and G4
Key Benefits
Parameters
| Type | G1.6 | G2.5 | G4 |
| Nominal Flow Rate m³/h | 1.6 | 2.5 | 4 |
| Maximum Flow Rate m³/h | 2.5 | 4 | 6 |
| Minimum Flow Rate m³/h | 0.016 | 0.025 | 0.040 |
| Maximum Work Preesure | 50kPa / 7 psi | ||
| Basic Error % | Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5; | ||
| Leak-Provenance kPa | No leakage below 15kPa | ||
| Pressure Loss kPa | <250 | ||
| Maximum Reading m³ | 99999.9 | ||
| Minimum Reading m³ | 0.2 | ||
| Weight(kg) | 2 kg |
||
Calin is original meter manufacturer and solution provider. We not only produce our own products but also ODM/OEM with other meter manufacturers.
