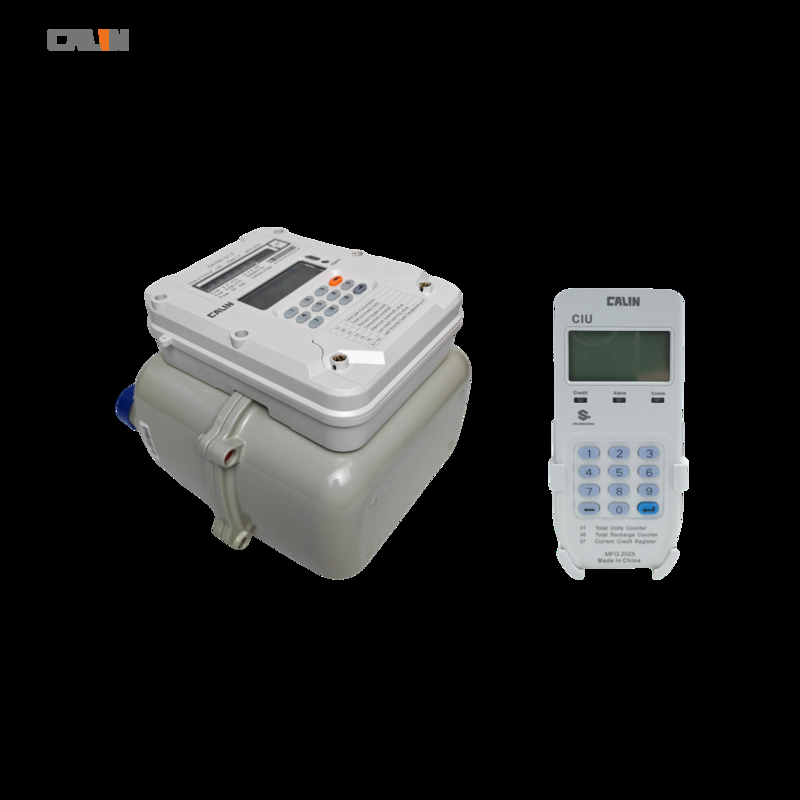

Aluminum Material Smart STS Keypad Meter , Prepay Gas Meter Low Credit Warning

Aluminum Material Smart STS Keypad Meter , Prepay Gas Meter Low Credit Warning

  • Aluminum Material Smart STS Keypad Meter , Prepay Gas Meter Low Credit Warning
Aluminum Material Smart STS Keypad Meter , Prepay Gas Meter Low Credit Warning
Product Details:
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Contact Now
Detailed Product Description
Material: Aluminum Color: Gray
Technique: Die-cast Weight: 2.3 Kg
Input: Keypad Bearings: Self-lubricating
High Light:

gas prepayment meter

,

smart gas meter

,

Smart STS Keypad Meter

          STS Aluminium Material Smart Keypad Prepaid Gas Meter with Gas Vending System



The CA768 STS Keypad Prepaid Gas meter is an unique residential gas meter designed to accurately measure volumes of natural gas, town gas liquefied petroleum gas etc. With this type you are assured of continuously good metrology and revenue protection at the same time.



Calin is the first one in gas metering industry in China who integrate the latest STS prepayment standards with gas meters. With our broad range of prepaid system solutions, you can manage this type gas meter along with your STS prepaid electricity meters.



Main Features

  1. ​  Light and easy to handle
  2.    Recharge by inputting 20 digits TOKEN in keypad.
  3.    Prepaid and post-paid mode swappable
  4.    Over 10 years’ data storage in absence of power
  5.    Prepared for AMR functions with RF, MODBUS, and RS485 (on request)
  6.    Low credit warning

Key Benefits

  • One-piece body design to eliminate the need for machined joints and gaskets, and the possibility of internal leakage
  • Molded, convoluted diaphragms for smooth operation and long life
  • Low-friction seals



Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Working Preesure Pa 0.5
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg) -10℃






Dimensions and diagram

Aluminum Material Smart STS Keypad Meter , Prepay Gas Meter Low Credit Warning 0
