| Place of Origin: | Shenzhen China |
| Brand Name: | CALIN |
| Certification: | STS, CNEX, SNI |
| Model Number: | CA768-K |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Packing |
| Delivery Time: | 6 weeks |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 500000Piece/Year |
| Color: | Gray & Blue | Type: | Diaphragm |
|---|---|---|---|
| Valve: | Bakelite Phenolic | Gas Type:: | LPG |
| Battery Life: | Up To 8 Years | LCD Language: | Arabic/Indoeasian/Enlish |
| Communication: | RF-lora | ||
| High Light: | Prepaid LPG Gas Meter,Real Time Prepaid Gas Meter,Real Time LPG Gas Meter |
||
Real Time Smart Prepaid LPG Gas Meter IoT Communication Technology
Real-Time IoT Communication Technology Smart Prepaid LPG Gas Meter

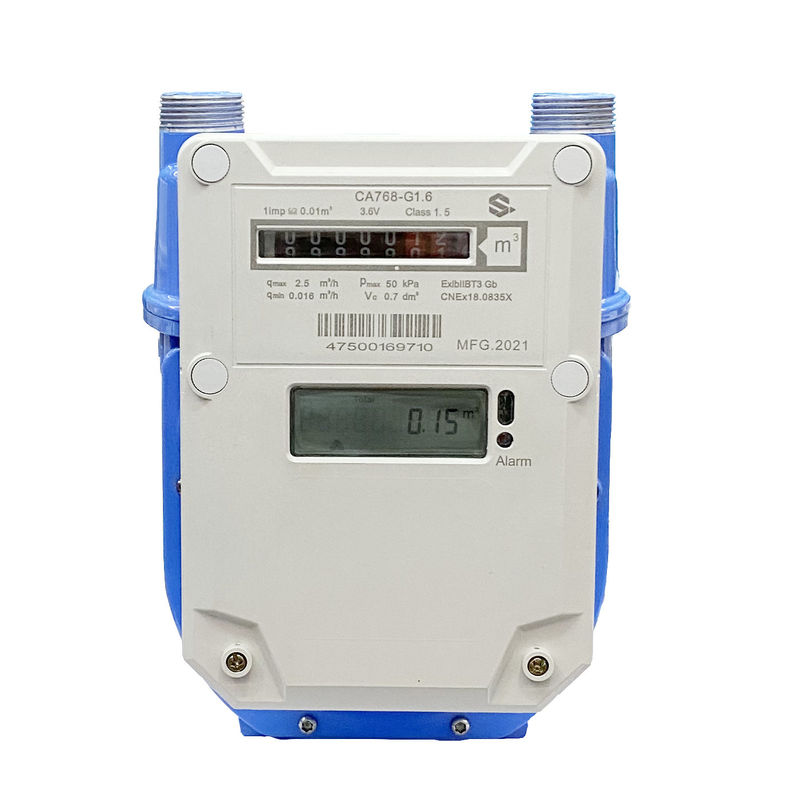

The CA768-K is our new design of smart prepaid gas meter. The body of CA768-k is cast with aluminum, which is resistant to oxidation and corrosion. Built-in high an integrated PCB board for pulse signal accurate collection, LCD display, valve control, remote communication．Based on the RF-Lora IoT communication technology, the meter support reading remotely, daily report upload, valve control from the backend.
Main Features
Supplying Domestic Usage Size: G1.6, G2.5 and G4
Integrate with mobile payment platform, getting token online.
Top up a token remotely or input manually
Comply with STS compliant
Built in 2 pieces long life lithium batteries
Anti tamper valve shut-off
Low credit warning
Low power usage and low failure rate
AMI Remote Communication Sketch
The data concentrator collects reading or other data from nearby smart gas meters by RF-Lora, and then upload the data to the cloud server by 4G or Ethernet. The repeater can extend the communication range for the DCU or avoid the obstacles between the DCU and meters.
Our system support integrates into the third platform. Other software interfaces or platforms can call data from our server by API port.
Dimensions
Parameters
|
Type |
G1.6 |
G2.5 |
G4 |
|
Nominal Flow Rate m³/h |
1.6 |
2.5 |
4 |
|
Maximum Flow Rate m³/h |
2.5 |
4 |
6 |
|
Minimum Flow Rate m³/h |
0.016 |
0.025 |
0.040 |
|
Maximum Work Preesure |
50kPa / 7 psi |
||
|
Basic Error % |
Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5; |
||
|
Leak-Provenance kPa |
No leakage below 15kPa |
||
|
Pressure Loss kPa |
<250 |
||
|
Maximum Reading m³ |
99999.9 |
||
|
Minimum Reading m³ |
0.2 |
||
|
Weight(kg) |
|
||
