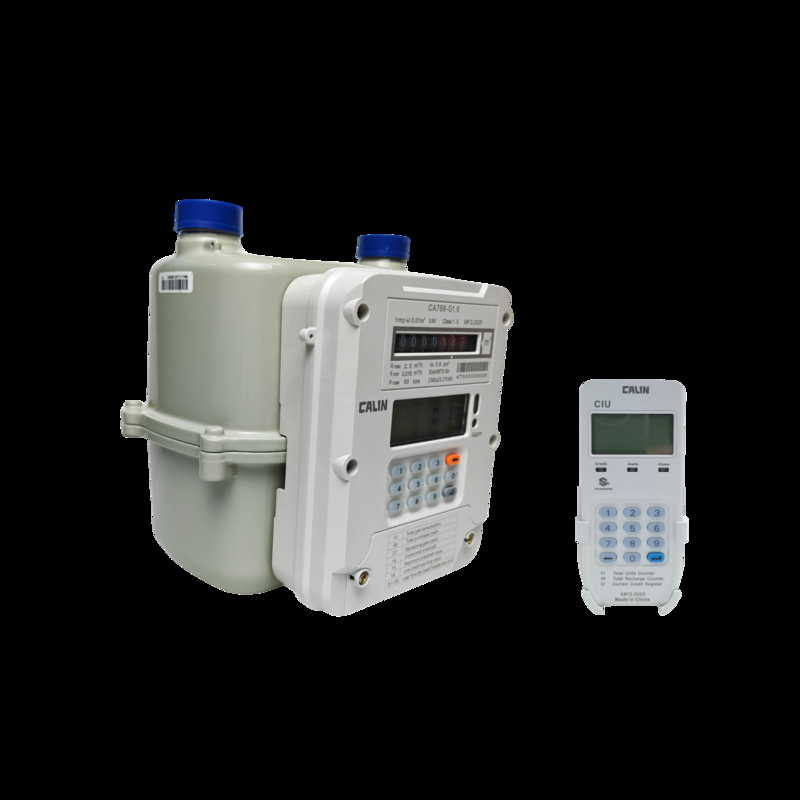

MODBUS communication Prepaid Gas Meter AMR AMI compatibility , maintenance free

MODBUS communication Prepaid Gas Meter AMR AMI compatibility , maintenance free

  • MODBUS communication Prepaid Gas Meter AMR AMI compatibility , maintenance free
MODBUS communication Prepaid Gas Meter AMR AMI compatibility , maintenance free
Product Details:
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Contact Now
Detailed Product Description
Material: Steel / Aluminum On Request Color: White
Weight: 2.0kg Dimension: 226x203x164mm
No. Of Chamber: 4 Valves: Graphite-filled Phenolic
High Light:

smart gas meter

,

prepayment gas meter



           Steel Material Smart RF Communication Remote Reading and Control Gas Meter



The CA768  is not only an unique residential gas meter applied to accurately measure volumes of natural gas, town gas liquefied petroleum gas etc,  but also AMR / AMI facility with data exchange features. The revenue protection and data mangement can be realized by utilizing this meter type in any severe circumstances, delivering high performance measurement at an economical price.



Its die-cast steel case with convoluted diaphragms enables smooth operation and long life . The chamber drum is selected with European standard materials with substantial durability. This new type bridges the former steady but standalone dumb metering with up-to-date real time data acqusition and interaction of smart metering.  Another outstanding feature is that this meter is integrated with latest STS standard and operates with 20 digits' token code. It offers utmost convenience and security to both consumers and service providers.



Main Features



   STS Algorithm compliant

​   Operate in both prepaid and postpaid mode (with AMR facilities)

   Light and free of maintenance

   Hybrid metering in both  Prepaid and post-paid mode

   Low power usage and low failure rate

   Non-volatile memory for over 10 years’ data storage in absence of power

  Compatibility for communication such as RF, MODBUS, and RS485 (on request)

   Available with EMC, ESD, EMI approval

   Low credit warning

   Anti-reverse device deters tampering





Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Working Preesure Pa 0.5
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg) -10℃







Dimensions and diagram
