Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: PLC Communication STS Prepaid Smart Meter Application: Residential And Light Commercial
Dimensions: 155x120x52mm Weight: 700 G
Display: 7 Digtis' LCD Accuracy: Class 1
Com Port: IR Optical, RS485 Communication: Power Line Carrier
High Light:

smart power meter

,

prepaid smart meters

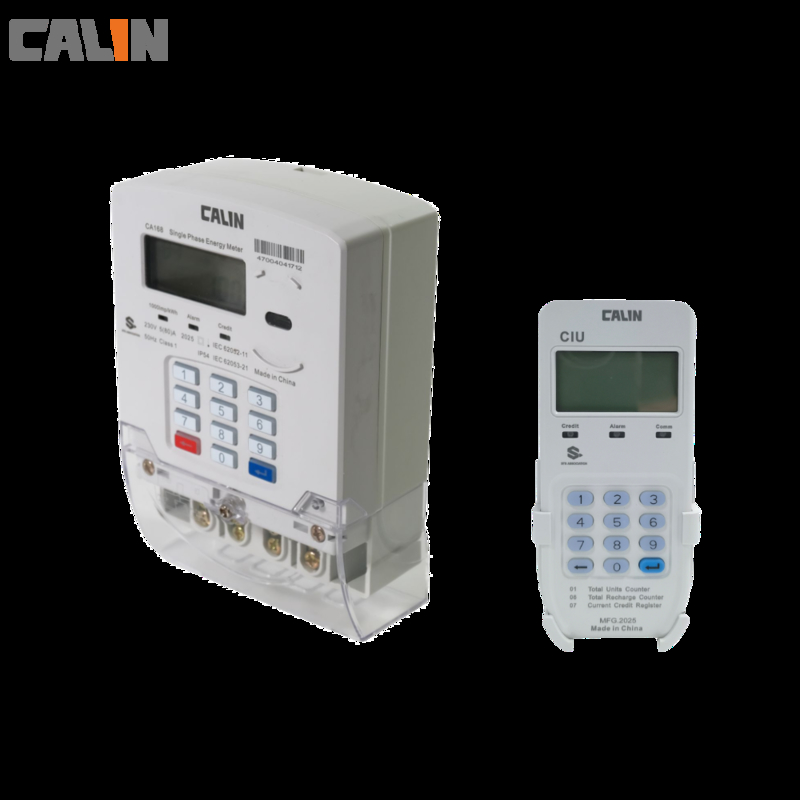

Power Line Carrier STS Prepaid Meters Tariff Control Smart Meters For Electricity





The CA168 equiped with G3-Power Line Carrier (PLC) communcation unit is able to interact and communicate with an AMR / AMI head-end server system (HES) for smart metering fucntions such as automatic meter readout, remote disconnect and reconnect meters, parameter settings, etc.  The meter is a one phase two wire , neutral missing operatable( optional) STS compliant prepayment meter, finished in a compact BS footprint mounting housing of IP54 protective rating and a surge arrestor sustaining up to 13kV lightening. It is used for a wide rang of metering applications in harsh and grid unstable environments.



The CA168 supports IEC compliant accuracy metrology and at the same time  DLMS/COSEM protocol compatible communication . The meter adopts power line carrier of G3 standard communication for data exchange and automated meter reading. It provides the utility users and service providers an efficient and low operational cost data collection and revenue protection tool.



Features

1) Operate in STS prepayment and post-payment mode

2) Measurement of significant reverse energy (SRE)

3) IEC62056-21 compliant optical & RS485 port

4) Trips on no credit and overload

5) Surge safe and low voltage operateble at -60%~+30% V

6) Programmable power limit , free basic unit and repayment policy

7) Anti-tamper features: cover open, reverse connection, magnetic field detection, neutral missing etc



 User benefits

a) Easy and quick installation especially for retrofitting due to BS footprint using existing wires

b) Smart metering features offers real-time data and remote intrusive load control

c) Time synchronization allows for multi-rate and Time of Use (TOU) tariff plans and holiday settings

d) Low operational and inventory cost



Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II
