Din Rail Smart Electric Meters Remote Control Single Phase Watt Hour Meter
The CA168-S is a 35 mm Din Rail mounting one phase two wire smart electric meter. It is built for applications of limit space but sound AMR/AMI facilities. The meter operates with broad metrology range as 5(60)A (80A on request), and -40% ~+30% V and maintains the rugged RF immunity withstand of 30Vm, ideal for residential, light commercial and industrial applications in very harsh and unstable grid supply areas.

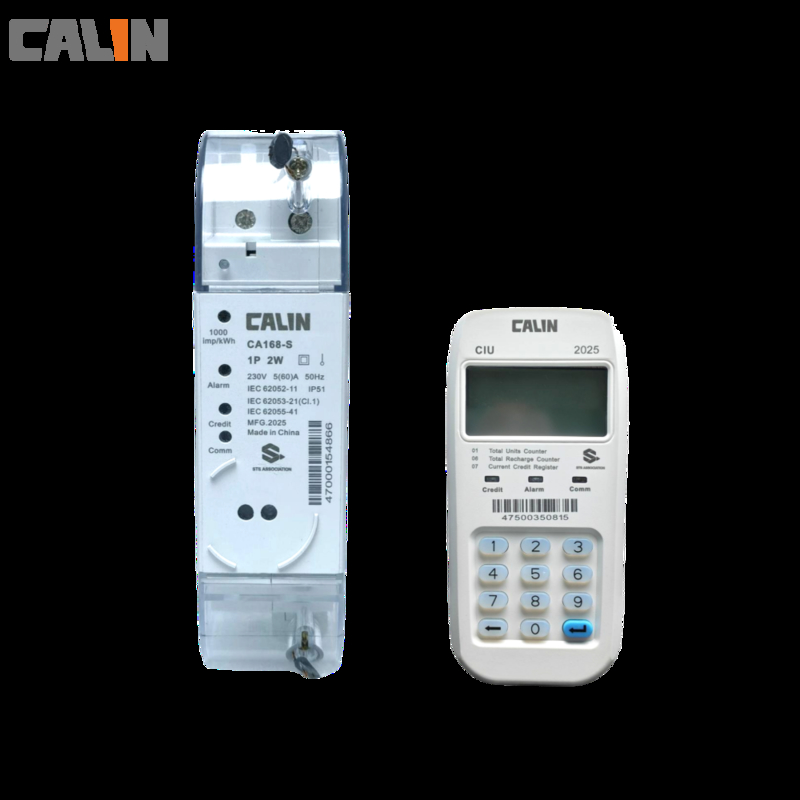

The CA168 -S operates in two parts. A customer interface unit (CIU), and a metering and control unit (MCU). A CIU is a tactile and audible keypad based display installed within consumers homes wherever there is a electrical socket. A MCU is the main meter, installed away from consumer's home in a pavement kiosk, meter box or a pole-mounted enclosure .MCU communicates with CIU via wireless communication such as Power Line Carrier (PLC), Radio Frequency(RF), and LoRa. This wireless features makes the MCU immune to any tamper with the CIU and at the same time facilitates the utility and service provider's inspection with no need entering consumers' premises.
Major Features
a) IEC standard Class 1 accuracy measurement
b) Disconnects on no credit or preset balance level
c) Disconnect on tamper detected and reconnect as programmable key press
d) Uni-directional measurement for reverse energy( SRE )
e) Tamper detection features
f) Wide operating range guaranttees the meter's performance in brownouts and voltage dips
g) The CIU is unique and exclusive to the MCU
User Benefits
1) Quick and easy to install
2) Slim-line compact design requires little space and reduce the installation cost
3) Meter allows setting for power limit, emergency credit, debt collection, surchages, etc
4) Two way communication with AMR AMI server(on request)
5) Meter provides information by inputting short codes
Specifications:
Nominal voltage Un |
220/230/240 V |
Limited voltage |
70%~120%Un |
Nominal frequency fn |
50-60Hz+5% |
Basic current(Ib) |
5-10A |
Maximum current(Imax) |
60-100A |
Starting current(Ist) |
20mA |
Active energy constant |
1000imp/kWh |
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
Power consumption in Voltage circuit |
<2W <8VA |
Power consumption in current circuit |
<1VA |
Operating temperature |
25℃ to+70℃ |
Storage temperature |
40℃ to+85℃ |
Insulation level |
4kV rms for 1min |
Impulse voltage withstand |
8kV, 1.2/50 μs |
Air discharge |
16kV |
Immunity to HF fields |
|
80MHz to 2GHz with load |
10V/m |
100kHz to 1GHz without load |
30V/m |
Fast transient burst test |
4kV |
Meter shell Protection Rate |
IP54(IEC60529) |
Insulation System Classification |
Protective Class II |
