STS IP54 Prepaid Electricity Meter with 80 A Max Current and IEC 62052-11 Compliance

Name: STS IP54 Prepaid Electricity Meter with 80 A Max Current and IEC 62052-11 Compliance
Brand: Shenzhen Calinmeter Co,.LTD
SKU: CA168-F44
Price: 50.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China, China

Brand Name: CALIN

Model Number: CA168-F44

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $30-70

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                STS IP54 Prepaid Electricity Meter, 80 A Max Current Smart Electric Meter, IEC 62052-11 Compliant STS Meter


Accuracy Class:	1.0	Max Current:	80 A
Energy Range:	0-10000000 KWh	Phase:	Single Phase
Rated Current:	5 A	Basic Current:	5 A
Dimensions:	166mmx120mmx56mm	Display Type:	LCD
Operating Temperature:	-25℃～70℃	Output Voltage:	220v/230v/240v
Frequency:	50/60Hz	Energy Constant:	1000 Imp/kWh
Cable Size:	8mm	Weight:	456g
Starting Current:	0.4% Ib

Accuracy Class:	1.0
Max Current:	80 A
Energy Range:	0-10000000 KWh
Phase:	Single Phase
Rated Current:	5 A
Basic Current:	5 A
Dimensions:	166mmx120mmx56mm
Display Type:	LCD
Operating Temperature:	-25℃～70℃
Output Voltage:	220v/230v/240v
Frequency:	50/60Hz
Energy Constant:	1000 Imp/kWh
Cable Size:	8mm
Weight:	456g
Starting Current:	0.4% Ib

STS IP54 Prepaid Electricity Meter with 80 A Max Current and IEC 62052-11 Compliance

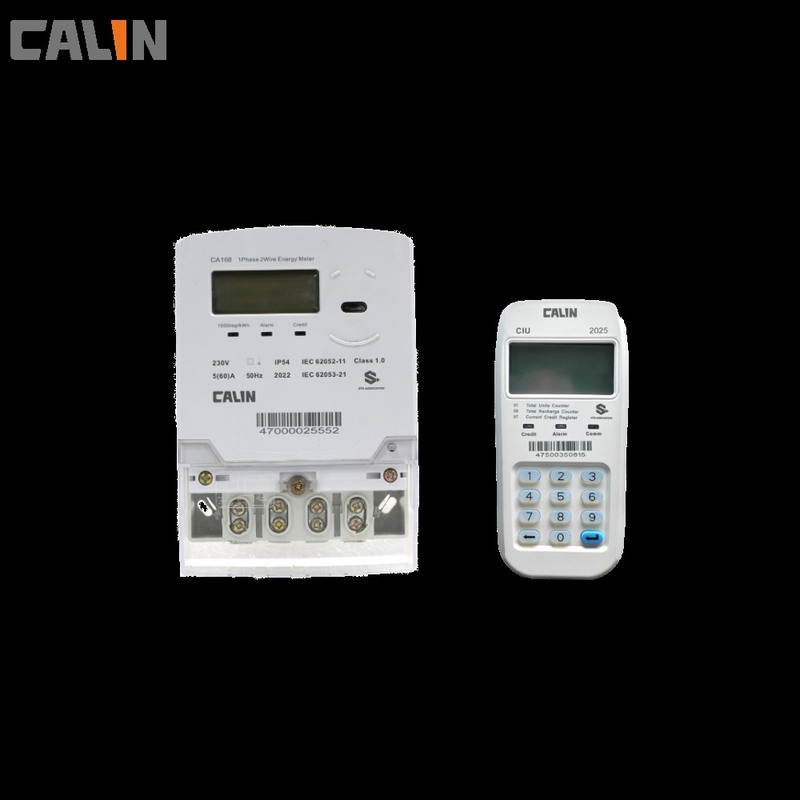

Factory Priced STS IP54 AMR AMI System Current Loop Communication Prepaid Electricity Meter with CIU

Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our meters feature robust anti-tamper protection and are available in single-phase configurations, including off-grid solar power compatibility.

Key Benefits

Extendable to split type configuration with CIU
Current loop communication capability with AMR/AMI server
Time of Use (TOU) based consumption recording
Supports prepayment, credit mode, and hot swap functionality

Technical Parameters

Parameter	Specification
Nominal voltage Un	220V/230V/240V
Limited voltage	70%~120%Un
Nominal frequency fn	50-60Hz
Basic current(Ib)	5A
Maximum current(Imax)	80A
Starting current(Ist)	0.4% Ib
Active energy constant	1000imp/kWh
Accuracy as Active energy to IEC62053‐21	Class1.0
Power consumption in Voltage circuit	<1W <8VA
Power consumption in current circuit	<1VA
Operating temperature	-25℃ to +70℃
Storage temperature	-40℃ to +85℃

Main Features

SRE detection
20 digit STS encryption
Tamper detection and record
IEC 62052-11 IEC 62053-21 compliant optical port
Double CT for Phase and Neutral line

Frequently Asked Questions

Q: Are you a trade company or a manufacturer?

A: We are an original meter manufacturer and solution provider, offering comprehensive support.

Q: Do you provide samples for testing, free or extra?

A: Samples are available for a reasonable cost.

Q: What payment terms do you accept?

A: We accept Paypal, West Union, T/T, and L/C. For payments ≤USD2000, 100% in advance. For payments >USD2000, 30% in advance by T/T with balance before shipment.

Q: How long is your delivery time?

A: Typically 5-10 days for stock items, or 15-30 days based on order quantity.
