Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: GPRS 1 Phase STS Prepayment Electric Meter Network: GSM GPRS EDGE EVDO
Dimensions: 160x112x58mm Mounting: British Standard(BS) 5685
Display: Backlit LCD 6 Digits Accuracy: Class 1s
Payment Mode: Credit And Prepayment Mode Selectable Material: ABS Blend With Fire Retardant
High Light:

smart power meter

,

wireless smart meters

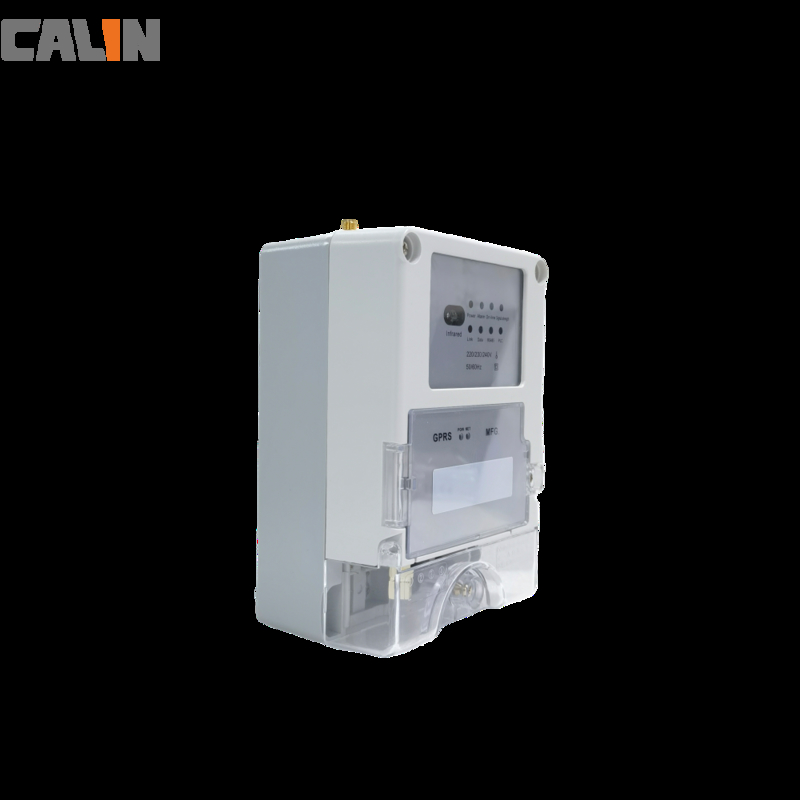

Single Phase Smart Electric Meters Two Wire Commercial STS Keypad Meter



The CA168-G is a high end newly upgraded  generation of smart electric meter that integrates high precision metrology  with non-wired communication and contractual control principles. It is a single phase two wire electric Watt-hour meter that operates in prepayment and credit mode. The payment mode can be altered remotely by the command transmitted from head-end server. The meter displays full house metering data including V, A, PF, total consumption, balance and last 5 successfully entered tokens. It also records load profiling data at preset interval periods.



GSM GPRS connectivity allows CA168-g to transmit data real-time to the head-end server and utility to audit and control the meter remotely. This wireless solution adds value and benefits to both service providers and consumers.



Main Features

a) Operates in prepayment or credit mode

b) Two way communication

c) Tamper detection, magnetic immunity, data retention in outage, cover open detection

d) TOU with multi-rate and multi billing cycles

e) IEC 62056-21 and DLMS/COSEM compliant

f) STS standard encryption

g) Online monitoring and upgrade





 Utility benefits

1) Build in load switch allows for dynamic load management remotely

2) Reduce operational and maintenance cost

3) Remote load management features

4) Revenue protection by remote tariff plan settings

5) Long life time design with easy upgrade features



Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II





Single Phase Smart Electric Meters Two Wire Commercial STS Keypad Meter 0
