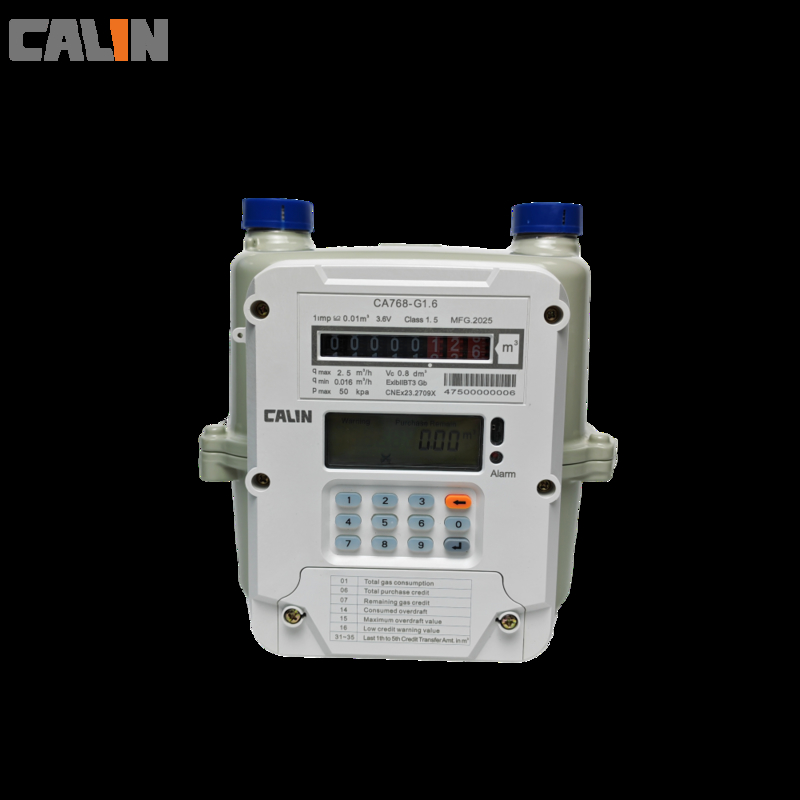

STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection

STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection

  • STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection
  • STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection
  • STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection
STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection
Product Details:
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Contact Now
Detailed Product Description
Meter Body: Steel Color: White
Display: 5+3 Mechanical / 6+2 LCD Chamber: 4
Capacity: 1.2 Litre Accuracy: 3%
High Light:

gas prepayment meter

,

smart gas meter

                STS Steel Material Smart Keypad Prepaid Gas Meter with Gas Vending System Tamper Protection



The CA768 is the new standard for residential compact metering, delivering high performance measurement at an economical price.It operates with the latest STS standard and takes the topping up tokens generated from Calinpay vending software. Calinmeter is the first meter company in China succesfully integrate STS algorithm with gas metering. We help protect your revenue and generate more added value to your business.





Main Features

  • Die-cast aluminum case
  • Molded, convoluted diaphragms for smooth operation and long life
  • Graphite-filled phenolic valves to minimize wear
  • Four chamber measurement module, 2 liters per revolution
  • Magnetically coupled index drive
  • Anti-reverse device deters tampering
  • Single coat polyester finish
  • Security seals that indicate tampering



Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Working Preesure Pa 0.5
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg)

-10℃




Dimensions and diagram

STS Steel Material Smart Keypad Prepaid Gas Meter With Gas Vending System tamper protection 0
