| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | STS Certificates |
| Model Number: | CA768-K |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Packing |
| Delivery Time: | 6 weeks |
| Payment Terms: | Western Union, Paypal,T/T, L/C |
| Supply Ability: | 500000Piece/Year |
| Design: | Galvanized Steel, Die-casting Aluminum | Maximum Reading M³: | 99999.9 |
|---|---|---|---|
| Minimum Reading M³: | 0.2 | Weight(kg): | 2 Kg |
| Leak-Provenance KPa: | No Leakage Below 15kPa | Maximum Work Preesure: | 50kPa / 7 Psi |
| High Light: | STS Gas Prepayment Meter,Anti Magnetic Interface STS Prepayment Meter,galvanized steel Gas Prepayment Meter |
||

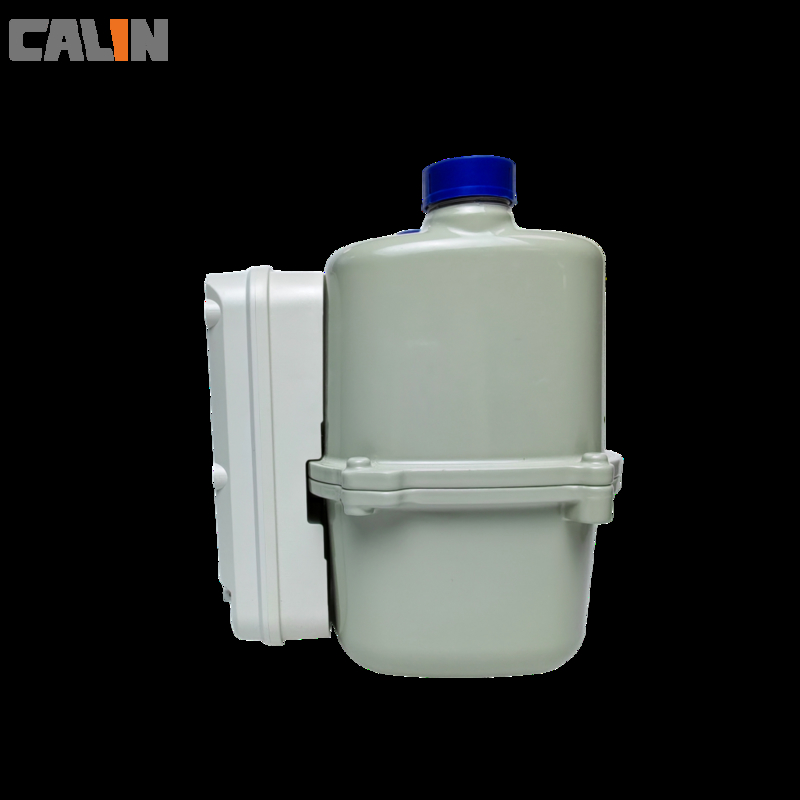

Anti Magnetic Interface STS Gas Prepayment Meter Aluminum Body
Smart Aluminum Body STS Keypad Prepaid Gas Meter
The CA768 is a perfect integration of STS prepayment standard and classic high precision diaphragm gas meter, designed for various gas media. The meter is built with galvanized steel and die-casting auminum and maximum corrosion resistance, The gas meter is manufactured by stringent international standards and the central measurement unit has beed supplied and proven by over 50 milion service connections in the past 10 years as an ideal revenue protection and customer mannagement controller.
Main Features
Meter body approved in accordance with MID by CMI.
Full coverage of G1.6, G2.5 and G4
Compatible with mobile money, e-cash
Recharge by inputting a 20 digits token code input via keypad
Over 10 year's data storage in absence of power
Long battery life, up to 10 years
Anti tamper valve shut-off
Optional Valve Leakage Warning
Reading through LORAWAN, NB-IOT and the system of GPRS/3G (on request)
Low batgtery alarm and Low credit warning
Low power usage and low failure rate
Key Benefits
Highly secured STS standard
Tamper-proof, anti-magnetic interface
Instant investment back, sufficient cash flow
Long life and smooth operation molded, convoluted diaphragms
IP67 protection
Parameters
|
Type |
G1.6 |
G2.5 |
G4 |
|
Nominal Flow Rate m³/h |
1.6 |
2.5 |
4 |
|
Maximum Flow Rate m³/h |
2.5 |
4 |
6 |
|
Minimum Flow Rate m³/h |
0.016 |
0.025 |
0.040 |
|
Maximum Work Preesure |
50kPa / 7 psi |
||
|
Basic Error % |
Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5; |
||
|
Leak-Provenance kPa |
No leakage below 15kPa |
||
|
Pressure Loss kPa |
<250 |
||
|
Maximum Reading m³ |
99999.9 |
||
|
Minimum Reading m³ |
0.2 |
||
|
Weight(kg) |
2 kg |
||
Dimensions and diagram
