Four Quadrant Smart Prepayment Meter Instantaneous Values Industrial Power Meter

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA368-G

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

smart power meter

,

wireless smart meters

Product Name:
GSM Commercial Smart Electric Meter
Standard:
IEC62053, DLMS
Dimensions:
265x170x77mm
Weight:
2.5kg
Material:
Polycarbonate Fire Retardant
Accuracy:
Class 1s
Mounting:
BS 5685 Footprint
Bore:
10mm
Product Name:
GSM Commercial Smart Electric Meter
Standard:
IEC62053, DLMS
Dimensions:
265x170x77mm
Weight:
2.5kg
Material:
Polycarbonate Fire Retardant
Accuracy:
Class 1s
Mounting:
BS 5685 Footprint
Bore:
10mm
Four Quadrant Smart Prepayment Meter Instantaneous Values Industrial Power Meter

Four Quadrant Smart Prepayment Meter Instantaneous Values Industrial Power Meter

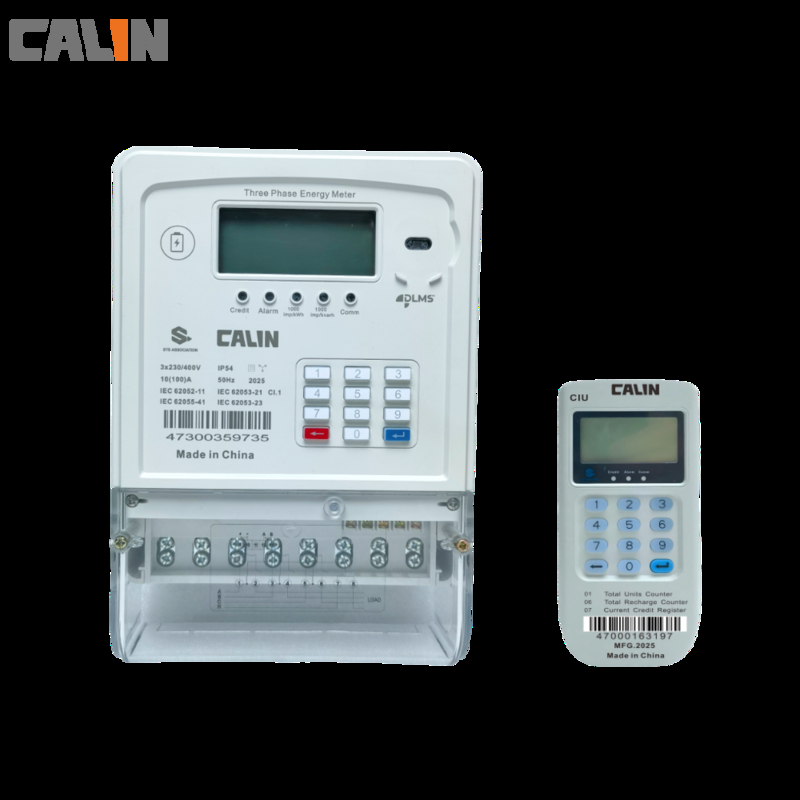

As being smart meter, the core principle is getting connected, the CA368-G operates with GSM connection to the back-end server system. It is a new generation of three phase four wire prepayment watt-hour meter, allowing a maximum 100 Amp current for each phase. It is a widely applicable for light commercial and industrial prepayment applications. The meter supports  load profile recording in 4 channels at adjustable interval period as well as classic metering functions. Payment mode can be altered from head-end server between prepayment mode and post-payment mode.



The meter is manufactured in accordance ISO9001 standards, allowing it to work in very harsh outdoors and indoors environments, thanks to its wide range ( Un -40% +20%) of voltage with  RF immunity of 30V/m. The CA368-G series is also able to measure both active and reactive energy. A 2400 bps baud rate optical port for data interogation is also a standard configuration.



The GSM features of CA368-G enables the meter to connect with  the head-end server  in a two-way communication through local point-to-point GSM / GPRS networks.  This design makes installation and fitting simpler and faster. A utility or service provider can read and collect metering data remotely  by setting scheduled task with head-end server station with no need to pay extra to setup accessories they will not use at all. Meter information can be triggered to display by punching in different info codes..



 Key Features

a) Instantaneous metering data as KW, V, A, PF

b) Available with both direct connection and CT connection type

c) Hybrid payment mode

d) Disconnect load on demand and no credit

e) Tamper proof, magnetic immunity, data retention in power failure, cover open detection

f) Multi-rate and multi billing cycles, Time of Use tariff



 Utility benefits

1) Interoperability on the basis of IEC 62056-21 and DLMS/COSEM compliance

2) Reduce non-technical loss by monitoring the circuit for precaution

3) Reduce operational and managementcost

4) Real-time monitoring online

5) Enhanced revenue protection by flexible contractual control

6) Build in load switch

7) Over 15 years' life span



Specifications:





Electrical parameters

Nominal voltage Un

3x220/230/240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

  IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm



Four Quadrant Smart Prepayment Meter Instantaneous Values Industrial Power Meter 0
