Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output

Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output

  • Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output
  • Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output
  • Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output
Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output
Product Details:
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS, CNEX, SNI
Model Number: CA768-K
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500000Piece/Year
Contact Now
Detailed Product Description
Material: Aluminum & PCBA & PC Color: Gray
Output: Pulse Type: Diaphragm
Valve: Bakelite Phenolic Gas Type:: Natural Gas, Town Gas Liquefied Petroleum Gas
Battery Life: Up To 8 Years LCD Language: Arabic/Indoeasian/Enlish
High Light:

gas prepayment meter

,

smart gas meter

Domestic LPG Silicone Button Aluminum Body

STS Keypad Prepaid Gas Meter

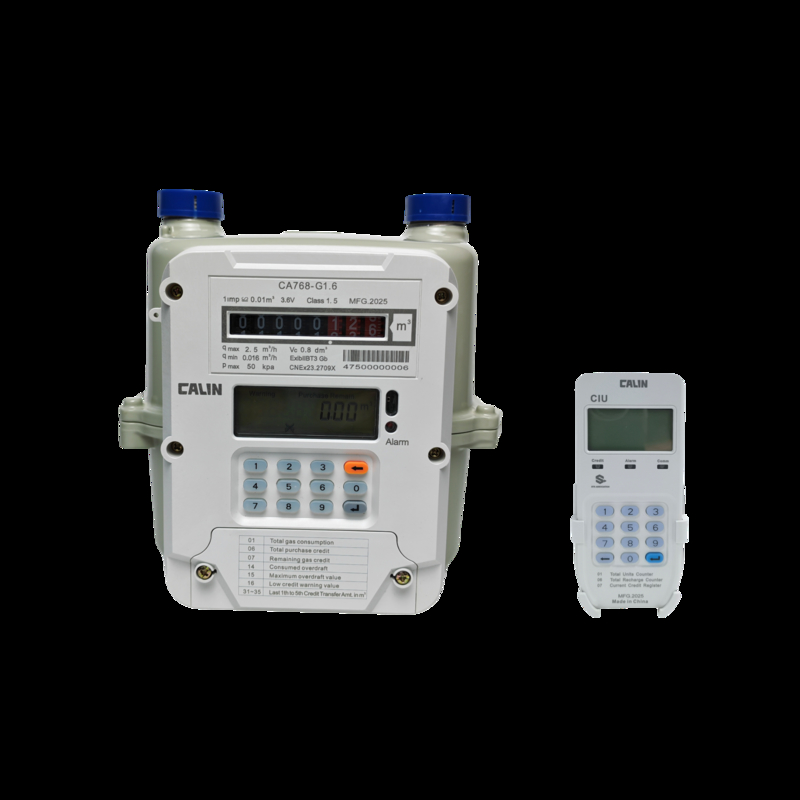

The CA768-K redefines the prepaid terms for the gas meter, instead of the IC card or RFID card prepaid gas meter, the users just can recharge the credits by inputting a 20-digits Token codes which generate through Calin-pay software. The Calin-pay can also integrate the mobile payment, such as M-pesa, Pay-as-you-go, etc. The users can recharge the credits and acquire the Token by Phone.



The gas meter is manufactured by stringent international standards and the central measurement unit has been supplied and proven by over 50 million service connections in the past 10 years as an ideal revenue protection and customer management controller. Retrofittable with LoraWan communication unit, the meter is prepared for AMR/AMI remote readout and control.



Main Features



  •    Full coverage of G1.6, G2.5 and G4
  •    Compatible with mobile money, e-cash
  •    Recharge by inputting a 20 digits token code input via keypad
  •    STS compliant
  •    Long battery life, up to 8 years
  •    Anti tamper valve shut-off
  •    Optional Valve Leakage Warning
  •    LoRa TM sementech prepared for AMR/AMI smart metering setup
  •    Low credit warning
  •    Low power usage and low failure rate



Key Benefits

  •    Highly secured STS standard
  •    Tamper-proof, anti-magnetic interface
  •    Instant investment back, sufficient cash flow
  •    Long life and smooth operation molded, convoluted diaphragms
  •    IP67 protection



Aluminum Body Prepaid Gas Meter STS Keypad Domestic LPG Silicone Button Pulse Output 0



Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Maximum Work Preesure 50kPa / 7 psi
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg)
2 kg




Dimensions and diagram
