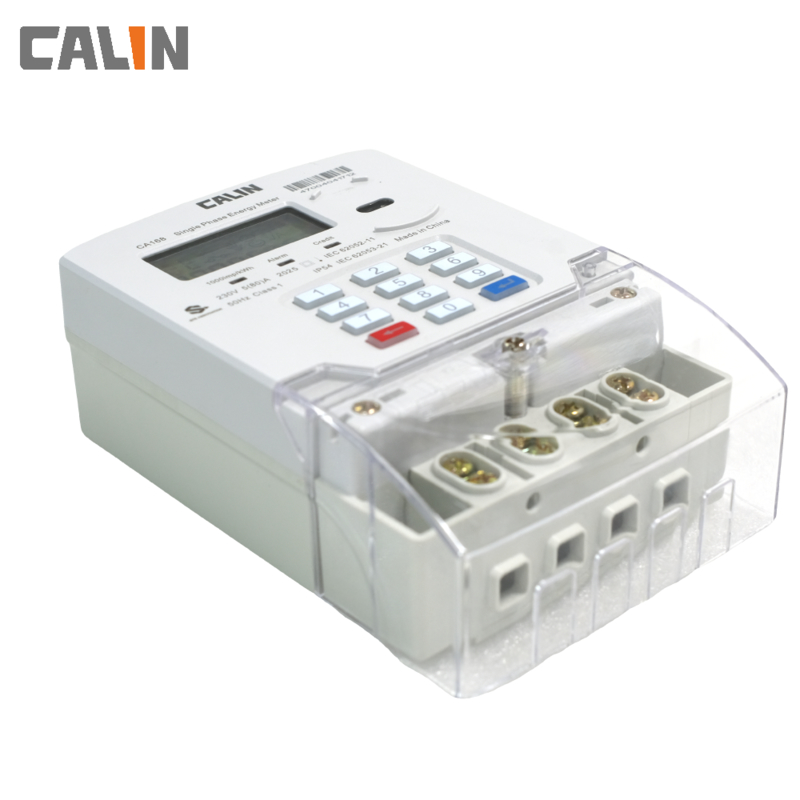

Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment Meter

Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment Meter

  • Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
  • Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
  • Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
  • Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
  • Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: BS Footprint Keypad Electric Meter Mounting: BS5685
Dimensions: 155x120x52mm Constant: 1000 Imp/kWh
Accuracy: Class 1s Standard: IEC/SABS
Cover Type: Flush Straight Designed Life: 15 Years
Communication: Power Line Carrier Display: LCD
Date Exchange: Meter Reading Application: Residential
Tamper Protection: Cover Open ,Reverse Connection ,Earthing
High Light:

Sts Keypad Meter

,

sts meter

Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment Meter



Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features . The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .



As meter manufacturers, we not only produce BS mounting devices, 35mm DIN RAIL is also one of our most popular meters. Both types can work with a customer interface unit as CIU and gives consumers great convenience inquring their usage without steppiing out of their homes.



The CA168 combines IEC compliant accuracy metrology and DLMS/COSEM standard compatible communication technology.The feature rich device provides enhanced tamper protection, thermal shutdown, as well as programmable under and over voltage and reverse energy measurement.



.



Features

1) Programmable under and over voltage trip

2) Enhanced tamper detection

3) Reverse energy measurement

4) Large-capacity magnetic latching relay control, measure energy in security mode

5) Tamper shutdown protection

6) Load control, over-load switching automatically

7) IP 54 rated





 Key benefits

a) PLC/ RF / GPRS communication (On request)

b) Time of Use (TOU) , multi-tariff, holiday setting

c) Easy connection to User Interface Unit (UIU) for split type applications

d) 15 year designed life

e) Balance alarm can be set by user according to his own need





Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II



Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter 0

Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment  Meter 1
