Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |
BS Footprint Keypad Electric Meter |
Mounting: |
BS5685 |
Dimensions: |
155x120x52mm |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Cover Type: |
Flush Straight |
Designed Life: |
15 Years |
Communication: |
Power Line Carrier |
Display: |
LCD |
Date Exchange: |
Meter Reading |
Application: |
Residential |
Tamper Protection: |
Cover Open ,Reverse Connection ,Earthing |
Product Name: |
BS Footprint Keypad Electric Meter |
Mounting: |
BS5685 |
Dimensions: |
155x120x52mm |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Cover Type: |
Flush Straight |
Designed Life: |
15 Years |
Communication: |
Power Line Carrier |
Display: |
LCD |
Date Exchange: |
Meter Reading |
Application: |
Residential |
Tamper Protection: |
Cover Open ,Reverse Connection ,Earthing |

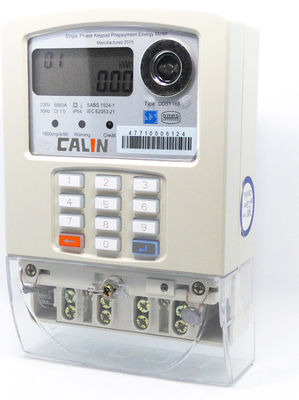

Monophase STS Prepaid Meters , Build - In Load Swtich Electricity Smart Prepayment Meter
Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features . The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .
As meter manufacturers, we not only produce BS mounting devices, 35mm DIN RAIL is also one of our most popular meters. Both types can work with a customer interface unit as CIU and gives consumers great convenience inquring their usage without steppiing out of their homes.

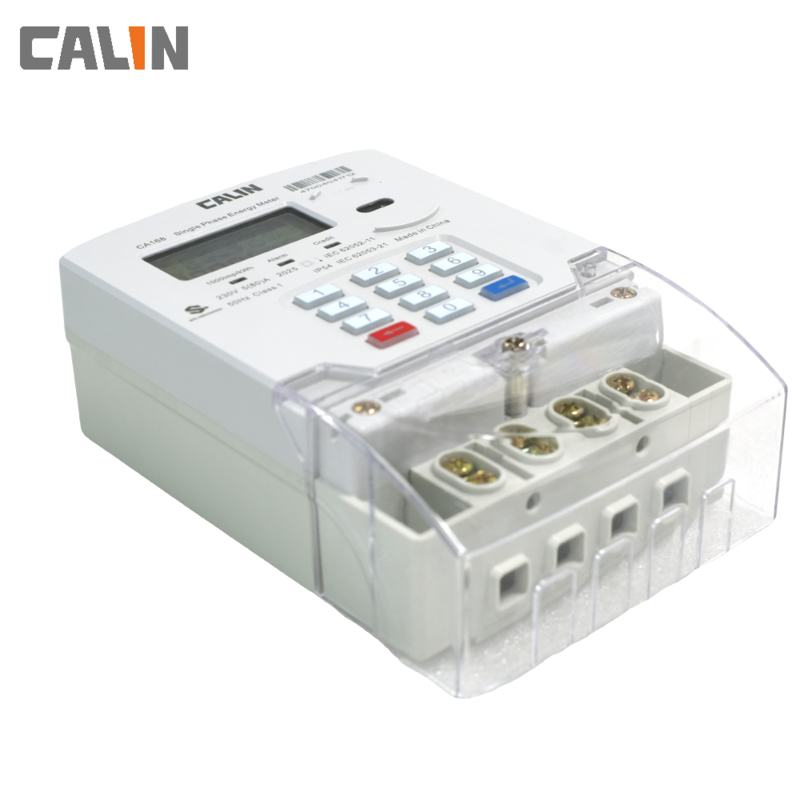

The CA168 combines IEC compliant accuracy metrology and DLMS/COSEM standard compatible communication technology.The feature rich device provides enhanced tamper protection, thermal shutdown, as well as programmable under and over voltage and reverse energy measurement.
.
Features
1) Programmable under and over voltage trip
2) Enhanced tamper detection
3) Reverse energy measurement
4) Large-capacity magnetic latching relay control, measure energy in security mode
5) Tamper shutdown protection
6) Load control, over-load switching automatically
7) IP 54 rated
Key benefits
a) PLC/ RF / GPRS communication (On request)
b) Time of Use (TOU) , multi-tariff, holiday setting
c) Easy connection to User Interface Unit (UIU) for split type applications
d) 15 year designed life
e) Balance alarm can be set by user according to his own need
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
