Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof

Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof

    • Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof
  • Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-I

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Features: Low Cost Tamper Proof Product Name: 1 Ph STS Prepaid Meter For Indonesian Standard
    Dimensions: 205x120x52mm Weight: 600 G
    Cost: Low For Entry Level Accuracy: Class 1s
    Cover Type: Extended Flush Straight Cable Size: 8mm
    High Light:

    STS Prepayment meter

    ,

    Sts Keypad Meter

    Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof





    The DDSY168-I is exclusively designed  for Indonesian market and therefore produced strictly in accordance with Indonesian standards for energy meters. This meter type has been supplied in milllions to Indonesian government and  It is the lowest cost and cheapest  STS keypad prepayment meter of minimum defective rate. The meter  has all standard function features of STS prepaid meters,such as keypad , 20 digits' encryption, tamper detection, power limit setting and class 1 metrology accuracy.



    DDSY168-I is a compact  design in a BS5685 footprint standard housing and maintains IP54 rating, allowing it to be deployed in very harsh environments. The meter  serves as a secured utility dispenser with enhanced revenue protection features.



    DDSY168  STS prepaid meter provides a compact solution for energy measurement and prepayment. Credit dispensing. The management data is transferred from a point of sales (POS) to the meter via a 20-digit numeric token that is generated using the Standard Transfer Specification (STS) encryption protocol. The meter keypad is used to punch in the token codes and information toggle codes.

    .

    DDSY168is an upgrade of highly successful DDSY range Single Phase keypad electricity meter. It is tailored to meet the international demand for STS standard. Feedback received from customers for DDSY range over the last 10 years has been blended into the design of the meter, making DDSY168 a reliable and robust product that exceeds customer requirements and expectations.





    Features

    a) Significant reverse energy measurement SRE

    b) IEC62056-21 compliant optical communication port

    c) Operates in prepayment and credit mode

    d) Disconnects on overload and credit exhausts

    e) Adjustable power limit and low credit warning

    f) Tamper protection against opening cover, reverse connection, black-out and etc.







    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

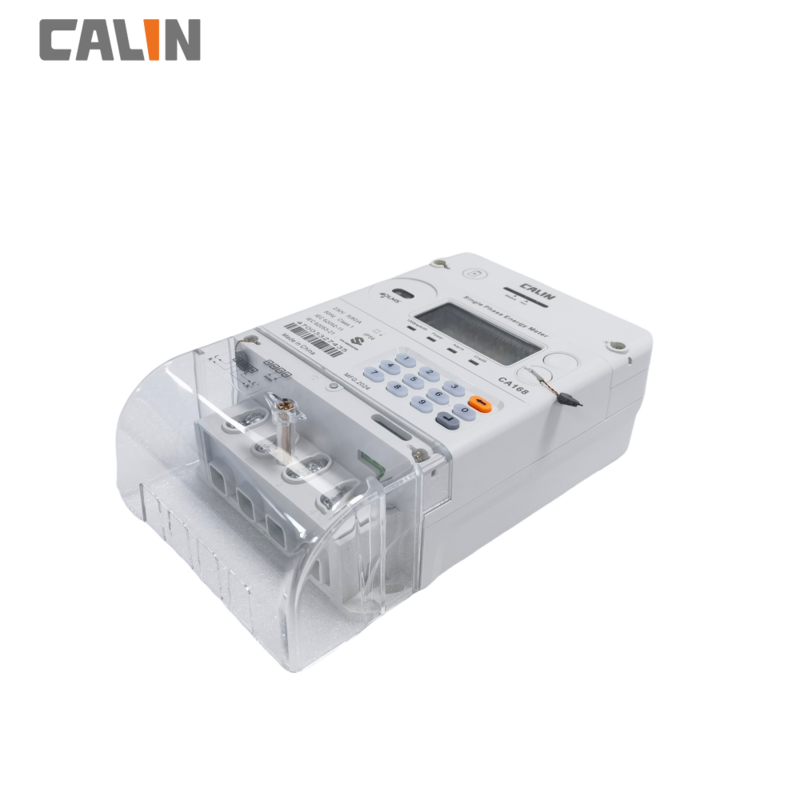

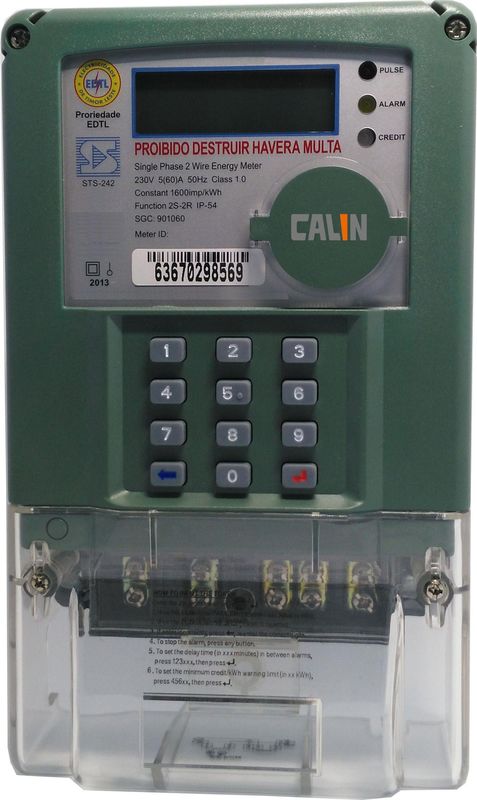

    Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof 0Indonesia Standard STS Prepaid Electricity Meters 5 Wires Tamper Proof 1
