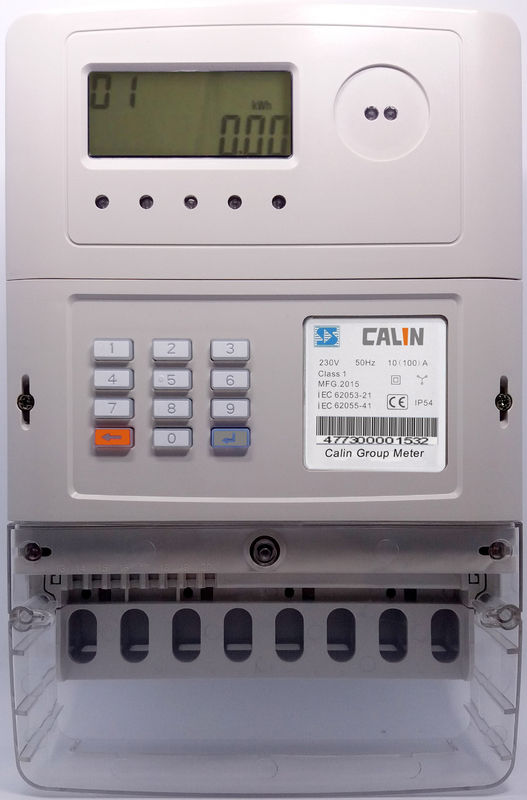

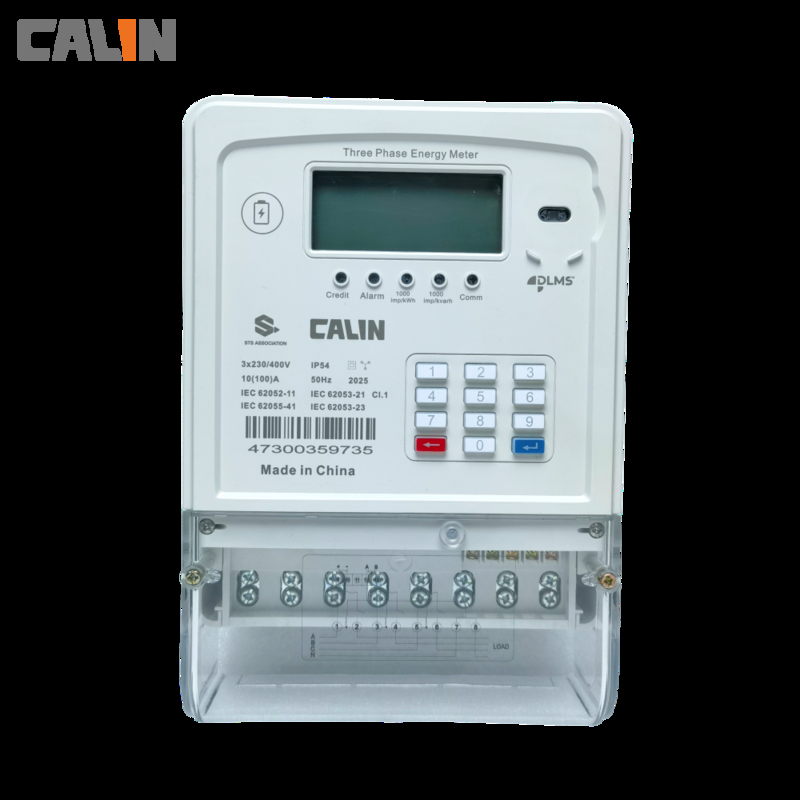

Lightening protection STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter

Lightening protection STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter

    • Lightening protection 	STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter
  • Lightening protection 	STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Lightening Protection Poly Phase STS Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053-21
    Dimensions: 265x170x77mm Weight: 2.5kg
    Display: 8 Digits Backlit LCD Accuracy: Class 1s Active Class 2s Reactive
    Com Port: Optical Cable Size: 10mm
    High Light:

    STS Prepayment meter

    ,

    Sts Keypad Meter

    Lightening protection STS Prepaid Meters , Backlit LCD 3 Phase Kwh Meter



    The CA368 offers options for extended surge protection for lightening up to 16kV with a build-in  8kA VDR. It is intended for unstable grid voltage envrionment such as African and Central American continent. The meter works in a three phase four wire or three wire (optional) network with 100 Amp per phase, and 30 Vm withstand of RF immunity, allowing it to operate in very severe envrionments. It is a perfect revenue protection device for submetering of residential, light commercial and industrial applications.



    The CA368 allows a utility and service provider to make flexible payment control settings such as free basic unit, emergency overdraft credit, low credit waring, repayment rules. This feature enables the service providers to secure their revenue through dynamic contractual control.





    Featured functions

    a) Surge safe meter

    b) 20 digit STS standard compliant encryption

    c) IR optical and RS485 com port for data exchange

    d) Disconnects on overload and zero credit

    e) Programmable power limit

    f) Tamper protection against opening cover, reverse connection, black-out

    g) Recall 12 months historical usage data and last 5 successfully entered token

    h) Maximum demand measurement and load profiling record (optional)

    i) Operates in prepayment and credit mode

    j) Access to information via Calin's short code



    User Benefits

    1) Low maitenance cost due to surge safe design

    2) Meters can be extended to Split type with UIU

    3) Available with choices of PLC/ RF/ LoRa/ GSM wireless communication with AMR AMI server

    4) Consumpton record on Time of Use (TOU) basis

    5) Multi-rate with programmable billing cycles

    6) DLMS/COSEM , IEC62056 protocol compliant interoperability



    Specifications:



    Default Electrical parameters

    Nominal voltage Un

    3x240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
