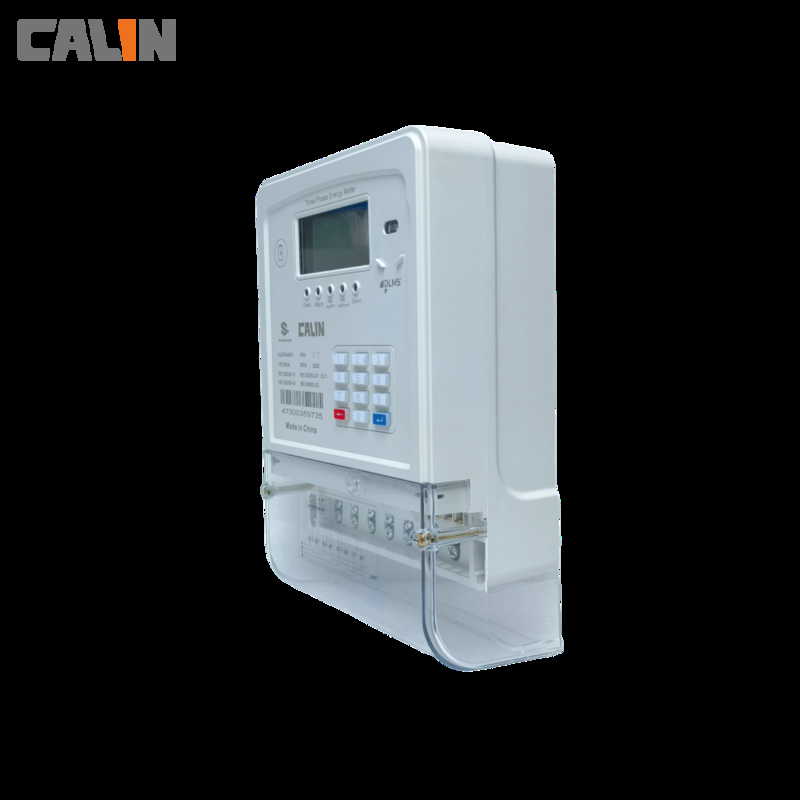

Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based

Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based

  • Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
  • Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
  • Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
  • Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
  • Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-g
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 3 Phase Gprs STS Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053
Dimensions: 265x170x77mm Weight: 2.5kg
Display: Backlit LCD 8 Digits Plus Icons Accuracy: Class 1s
Com Port: Optical RS485 Cable Size: 10mm
High Light:

STS Prepayment meter

,

sts meter

Optical RS485 3 Phase Electric Meter 10mm Cable STS Prepayment Meter Keypad Based



Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features .The CA368-G series is available with measurement of both active and reactive energy, and 2400 bps baud rate optical port for data extraction.



The CA368-G is the non-wired model of Calin's three phase prepaid meter. It is a four-wire, 100 Amp per phase, keypad based prepayment meter finished in a compact BS5685  footprint housing. The meter is manufactured in accordance with  ISO9001 standards and IP54 rated protection class, in a wide voltage range ( Un -40% +20%) and improved RF immunity of 30V/m, allowing it to work in very harsh environments.



The GPRS feature of CA368-G enables the meter to connect to the back-end server via TCP/IP or vpn through point-to-point communication networks. Metering data and grid supply parameters can be remotely read and collected into the head-end server automatically as scheduled task. The meter Information can be toggled by punch in different combinations of codes.. Users can easily retrieve metering data from the display screen such as daily usage, monthly usage, present current and voltage, balance, and last five entered tokens.









Features

a) 20 digit (Standard Transfer Specification) STS standard encryption

b) Disconnects on overload and credit exhausts

c) Communication ports for easy data interrogation

d) Preset power limit and low credit warning level

e) Tamper protection and event record such as opening cover, reverse connection, black-out

f) Recall 12 months historical usage data and last 5 successfully entered token

g)Wide voltage range ( Un -40% +20%) and improved RF immunity of 30V/m

h) ISO9001 standards and IP54 rated protection class





        AMR/AMI Smart Metering Features (optional)

1) Split connection with User Interface Unit (UIU)

2) PLC/ RF/ GPRS/GSM communication with a head-end AMR/AMI server

3) Time of Use (TOU) / mutil-rates and holiday settings

4) Advanced load management and disconnection features

5) DLMS/COSEM , IEC62056 protocol compliant





Specifications:





Electrical parameters:

Nominal voltage Un

3x240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm
