Three Phase STS Keypad Prepaid Meters With Bs Mounting GPRS Communication

Three Phase STS Keypad Prepaid Meters With Bs Mounting GPRS Communication

  • Three Phase STS Keypad Prepaid Meters With Bs Mounting  GPRS Communication
Three Phase STS Keypad Prepaid Meters With Bs Mounting  GPRS Communication
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Three Phase Keypad Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053
Dimensions: 265x170x77mm Weight: 2.5kg
Display: Backlit LCD Accuracy: Class 1.0s Active Class 2.0s Reactive
Com Port: IR Optical RS485 Cable Size: 10mm
High Light:

prepaid power meters

,

prepay electric meters

Three Phase STS Keypad Prepaid Meters With Bs Mounting GPRS Communication

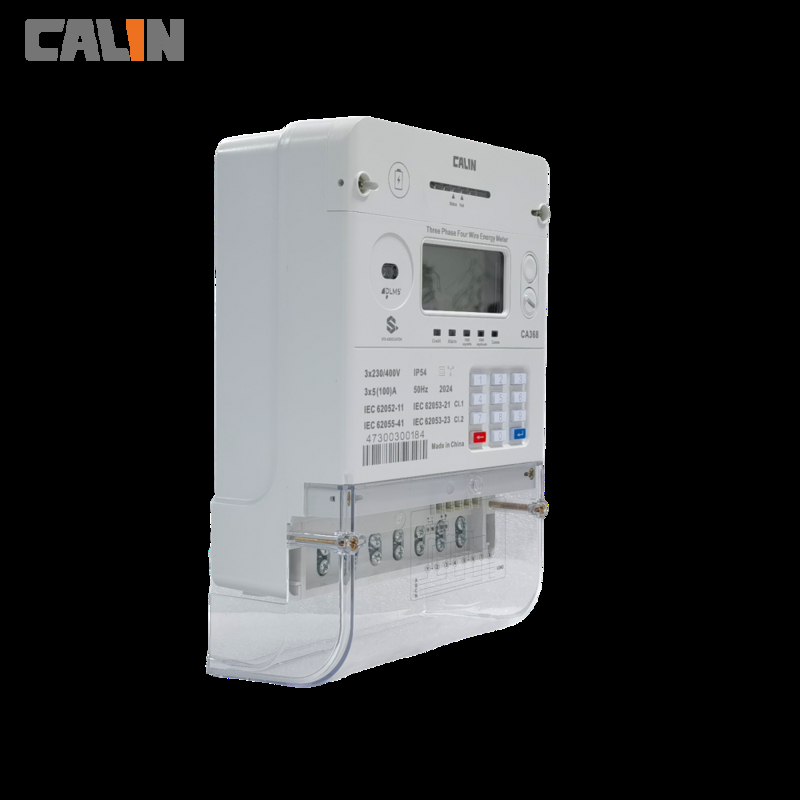

The CA368 is  Calin's triple phase prepaid meter. It is a four-wire, three phase  of 100 Amp per phase, keypad based prepayment meter in a BS standard mounting housing. The meter is designed for large residential houses, small commercial and industrial metering applications.

The product is manufactured by  ISO9001 standards. IP54 rated protection, a broad range of voltage ( Un -40% +20%) and 30V/m RF immunity , allow it to work in harsh environments. The  CA368 provides  both active and reactive energy measurement, and a 2400 bps baud rate infrared optical port for data extraction and investigation.



The CA368 can also work with a user interface unit as UU. UIU is a display unit with keypad . Meter information can be toggled by different combination of short codes. Users can easily search and display metering data such as monthly usage, daily usage, present current and voltage, balance, and last five entered tokens.



As the orginal designer of CA368, Calin is also supplying to other NON-STS member meter manufacturers.



Major Features



1)     Standard Transfer Specification(STS) standard

2)     Infrared optical and RS485 ports for interrogation

3)     Disconnects on overload, tamper and credit zero

4)     Programmable load limit and low credit warning level

5)     Tamper prevention and event record

6)     Recall 12 months historical usage data and last 5 entered token

7)     Operates in both prepayment and credit mode

8)      Maximum demand measurement





        AMR/AMI Smart Metering Features (optional)



1)     Split connection to User Interface Unit (UIU) wire or wireless

2)     Plug & Play PLC/ RF/ GPRS/GSM communication module for AMR/AMI applications

3)     Multi-rate and holiday settings

4)     Advanced load control and disconnection features

5)     DLMS/COSEM , IEC62056 standard







Technical data spreadsheet:





Electrical parameters:

Nominal voltage Un

3x220/230/240V

Limited voltage

60%~120%Un

Frequency

50 / 60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm
