Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Product Name: Nigeria MAP Single Phase Smartmeter Asset Provider Program Latch Relay: Build-in
Dimensions: 155x120x52mm Nominal Voltage Un: 220/230/240 Volt
Consumption Rate: 1000 Imp/kWh Accuracy: Class 1
Split Keypad: On Request Communication: RF_LoRa
High Light:

240V Single Phase Prepaid Meter

,

230V Single Phase Prepaid Meter

,

IP54 Single Phase Electricity Meter

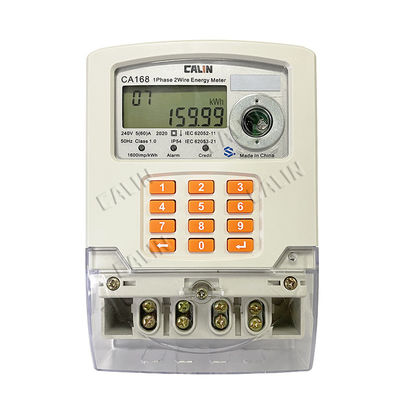

Rual Electrification 240V Single Phase Prepaid Meter Smart Electricity Meter



RF Module Off Grid Single Phase Smart Prepaid Electricity Meter For Rual Electrification

Along with the development of off-grid, mini-grid projects worldwide, the demand for accurate prepaid smart metering is getting robust each day. Calin CA168 single phase smart prepaid electric meter operates with STS IEC62052, the only international standard for prepayment metering.  It is applicable for any off grid / mini-grid metering and revenue collection scenarios, especially for the places where the communication network is not reliable or zero since the meter can trip on tamper or credit finishes on its own without connection with the back-end server. The meter is built with SANS, IEC standards, the same as the ones supplied to the main grid power companies.



On top of the metrology features, Calin Single Phase Smart Prepaid Electricity Meter has built-in RF module that enable the meter to communicate with data concentrator and the back-end server system. This means the meter can be monitored and controlled remotely at the back-end side.  Data dashboard is available for statistic analysis.





Major Features

  1. STS encryption compliant
  2. Significant reverse energy (SRE) decrement credit as in positive current flow
  3. DLMS-COSEM standardized com port
  4. Overload and no credit disconnections
  5. Hybrid prepaid and credit mode
  6. Preconfigured load limit and low credit warning
  7. Tamper proof



 Main Benefit

  1. Wirelessly connected User Interface Unit (UIU)
  2. Smart metering  AMR  AMI features
  3. Time of Use (TOU), multi-tariff, holiday settings.
  4. Debt collection





Specifications:



Nominal voltage Un 220/230/240V Operating temperature 25℃ to+70℃
Limited voltage 70%~120%Un Storage temperature 40℃ to+85℃
Nominal frequency fn 50-60Hz+5% Insulation level 4kV rms for 1min
Basic current(Ib) 5-10A Impulse voltage withstand 8kV, 1.2/50 μs
Maximum current(Imax) 60-100A Air discharge 16kV
Starting current(Ist) 20mA Immunity to HF fields
Active energy constant 1000imp/kWh 80MHz to 2GHz with load 10V/m
Accuracy as Active energy to IEC62053‐21 Class1.0 100kHz to 1GHz without load 30V/m
Power consumption in Voltage circuit <2W <8VA Fast transient burst test 4kV
Power consumption in current circuit <1VA Meter shell Protection Rate IP54(IEC60529)
    Insulation System Classification Protective Class II



 Rual Electrification 240V Single Phase Prepaid Meter Smart Electricity Meter 0Rual Electrification 240V Single Phase Prepaid Meter Smart Electricity Meter 1
