Product Details
Place of Origin: Shenzhen China
Brand Name: CALIN
Certification: STS Certificates
Model Number: CA768
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packing
Delivery Time: 6 weeks
Supply Ability: 500000Piece/Year
Material: |
Stee / Aluminum On Request |
Color: |
Gray |
Communication: |
RF LoRa/ NB-IOT |
Index: |
English / Metric |
Valve: |
Bakelite Phenolic |
Material: |
Stee / Aluminum On Request |
Color: |
Gray |
Communication: |
RF LoRa/ NB-IOT |
Index: |
English / Metric |
Valve: |
Bakelite Phenolic |

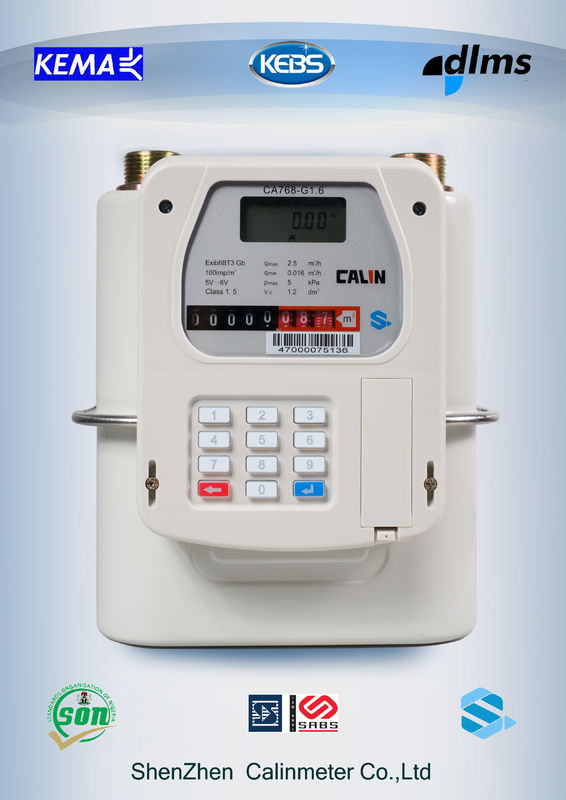

Mobile payment M-PESA Prepayment Gas Meter Diaphragm Type 5 year above battery life
Why STS over card or any other prepaid solution ? STS meters work with 20 digits' code, which means all information and topup is transferred with no physical contact. Mobile payment such as M-PESA, Airtel, Tigo-PESA can be integrated with vending system to generate recharge tokens via mobile money. Calinmeter 's STS gas meter is the latest successful migitation from STS prepaid electric meter. We are the 47th registered STS association member, and over 10 years experience in the field entitled Calin leader position in STS metering industry in China. The meter can be used for various gas . Over one million base meter installations have long proven its finest quality and stablility. Immediate cashflow as well as reveue protection against tamper and arrear are provided to utility service providers as key value in their daily operations. Calin gas meter is now proudly serving customers from Iraq, Pakistan, Indonesia, Mexico, Kenya, Tanzania, and many other countries and regions.

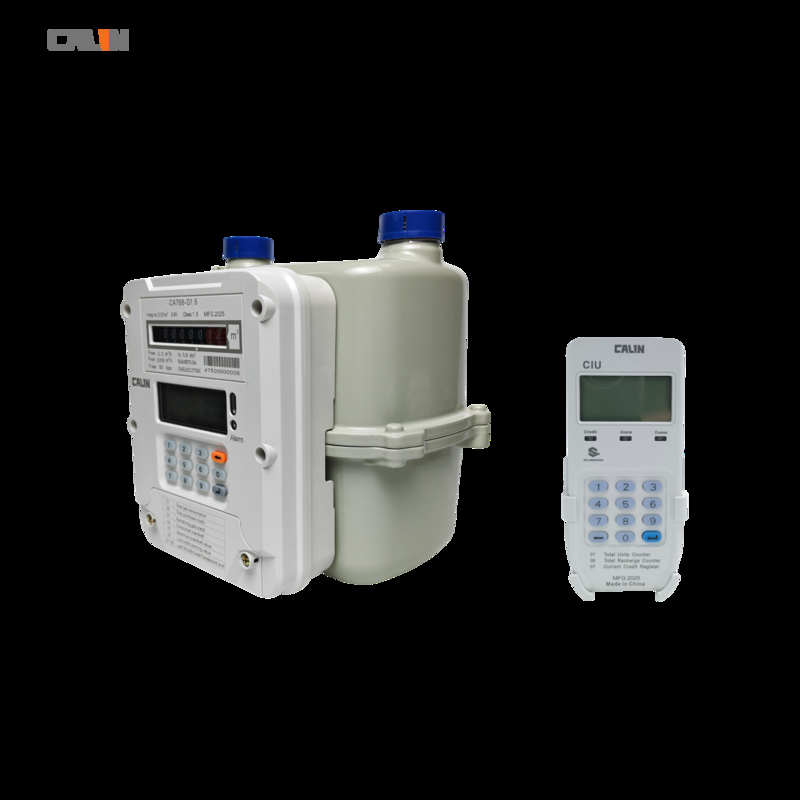

Split installation is another brilliant feature of Calin gas meter. The customer interface unit keypad (CIU) is offered as an extension to be installed within customer's premise when the meter is installed and locked away. A CIU can be used for balance check, history search, and most importantly topup.
Main Features
Operate with 20 digits token for recharge and topup
Low battery alarm and low credit alarm
Die-cast steel case (alumium case availabe on request)
Up to 7 years' battery life and replacable battery
Security seals are applied for tamper prevention
Auto valve shut-off on tamper detection
Gas leakage detection ( sensors required / optional)
Size in G1.6, G2.5 and G4
Key Benefits
Compatible with mobile money and third party payment gateways
STS compliant and fit into any STS management system
Quick money back and instant cash flow
LoRa TM technology prepared for AMR / AMI smart functions (optional)
Easy installation and free of maintenance
Wireless connection to Customer Interface Unit(CIU) for split type applications
Parameters
| Type | G1.6 | G2.5 | G4 |
| Nominal Flow Rate m³/h | 1.6 | 2.5 | 4 |
| Maximum Flow Rate m³/h | 2.5 | 4 | 6 |
|
Minimum Flow Rate m³/h |
0.016 | 0.025 |
0.040 |
| Maximum Work Preesure | 50kPa / 7 psi | ||
| Basic Error % | Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5; | ||
| Leak-Provenance kPa | No leakage below 15kPa | ||
| Pressure Loss kPa | <250 | ||
| Maximum Reading m³ | 99999.9 | ||
| Minimum Reading m³ | 0.2 | ||
| Weight(kg) | 2.3 kg |
||
