Product Name: |
STS Single Phase Din-rail Split Keypad CIU Prepaid Electricity Meter |
Mounting: |
35mm Din Rail |
Dimensions: |
155x120x52mm |
Weight: |
800 G |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Connection Type: |
Two Wire/ PLC/ RF |
Recharge: |
20 Digits Token Code |
Product Name: |
STS Single Phase Din-rail Split Keypad CIU Prepaid Electricity Meter |
Mounting: |
35mm Din Rail |
Dimensions: |
155x120x52mm |
Weight: |
800 G |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Connection Type: |
Two Wire/ PLC/ RF |
Recharge: |
20 Digits Token Code |

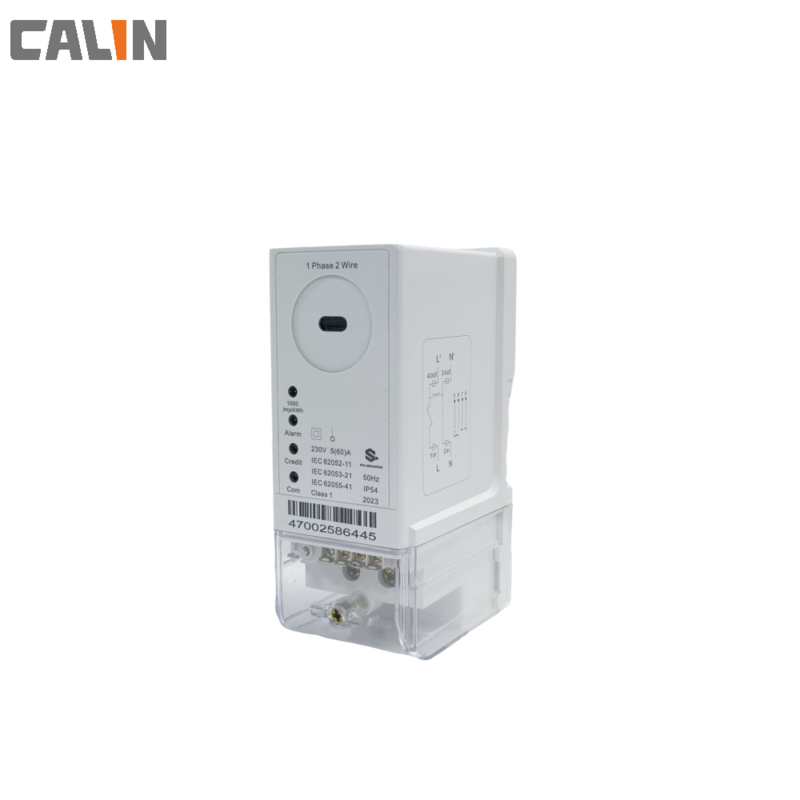

The CA168-S Meter is a split-type compact DIN-Rail mounted Class 1 accuracy single phase electricity meter built in 35mm international standard housing made of poly-carbonate flame retardant materials. Galvanic isolation wire is basic connection between the meter and keypad. Double circuit measurement and relay are also available on request for reinforced tamper prevention.
With an improved dynamic range enabling a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features, CA168 -S works with a user interface unit as UIU, UIU U is a keypad based display to be installed within consumers homes when the main meter, MCU, Metering and Control Unit, is installed away from the consumers' premises. This split setup offers utility users and service providers great convenience and enhanced revenue protection for inspecting and maintenancing meters without entering consumers' houses.
As meter manufacturers, Calin not only provide 35mm DIN RAIL, BS footprint mounting KWH meter, is also one of our most popular products. Both types connect to a CIU with a galvanically isolated communication cable while non-wired solution for PLC, RF, MBUS are also available on request. This wireless setup will greatly reduce the installation and operational cost, narrow down the payback period, and most importantly curb the potential tamper .
Major Features
Other Benefits
a) Compact and slim-line design
b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)
c) Time of Use (TOU) , multi-rate, tariff control, holiday setting
d) 15 year designed life
e) Enhanced revenue protection through flexible payment control
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
