Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control

Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control

    • Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control
  • Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Single Phase Din Rail STS Prepaid Watt Hour Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Connection Type: Power Line Carrier
    High Light:

    din rail power meter

    ,

    din rail electric meter

    Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control



    The CA168-S is an international standard 35 mm Din Rail mounted prepaid watt-hour meter . It has a broad current range starting from 5 to a maximum of 80Amp and maintains 30 Vm withstand of the rugged RF immunity, which allows it to operate in most harsh environments.The meter is used for a broad range of  prepayment metering applications in submetering and tenants environments. Calin is now supplying this meter and design to many other NON-STS meter manufactuers.

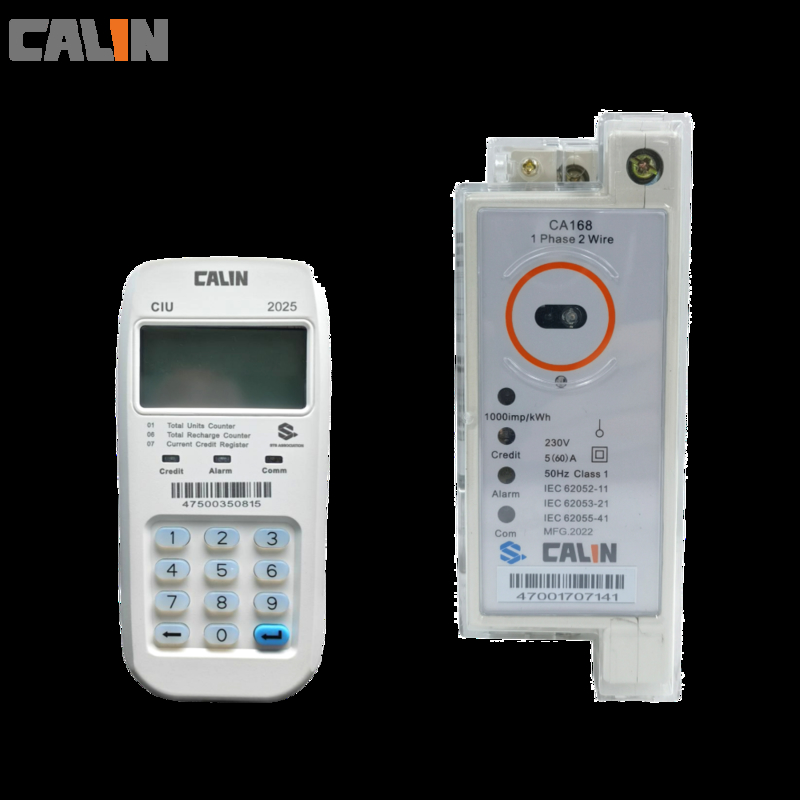

    The CA168 -S operates with a keypad based display namely customer interface unit (CIU) to be installed within consumers premises when the main body meter, MCU, Metering and Control Unit, is installed outside. This split  setup offers utility users and service providers great convenience for inspecting and maintenancing meters without entering consumers' houses.



    The MCU connects with the CIU via PLC( Powerline Carrier Communication).  This wireless connection  greatly reduces the cost as well as complexity of installation and deployment., and most importantly prevent the potential tamper.





    Major Features

    a) STS standard compliant

    b) Programmable power limit

    c) Preset and changeable emergency credit

    d) Full range of metrological value measurement

    e) Reverse energy measurement SRE

    f) Enhanced fraud protection against magnetic field, reverse connection, cover open, etc.

    g) Multi-rate and usage register on Time of Use (TOU) basis



     User Benefits

    1) Compact and slim-line design

    2) Two way communication with AMR AMI server(On request)

    3) Flexible contractual control through various element settings: emergency credit, debt collection, etc.

    4) 15 year designed life





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Compact Single Phase Kwh Meter Din Rail Digital Electric Meter Remote Control 0
