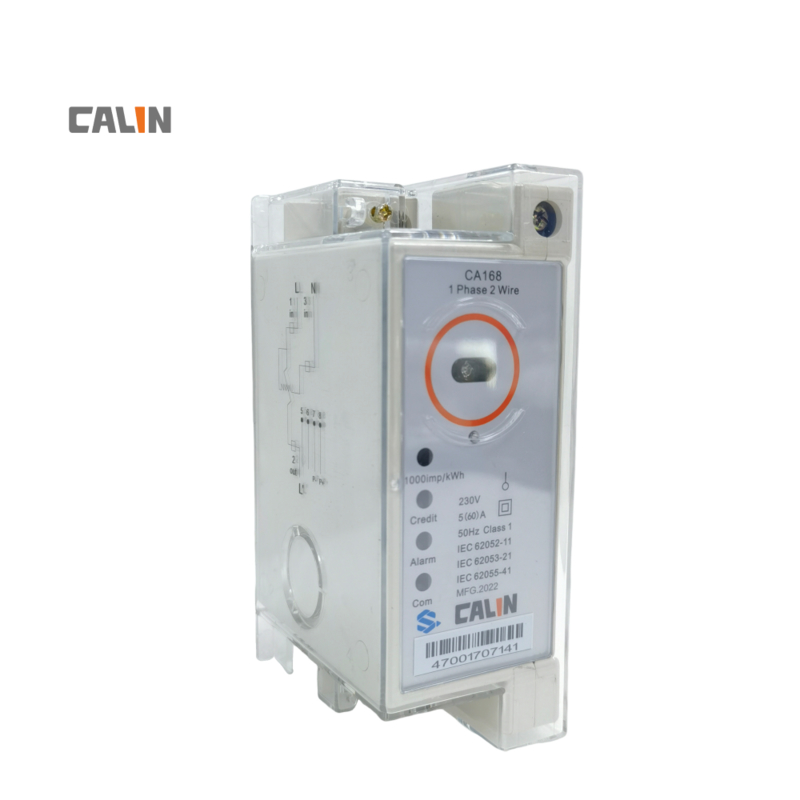

Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters

Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters

    • Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters
  • Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Din Rail STS Prepaid Anti-tamper Kilo Watt-hour Meter Application: Body Corporates, Property Investors, Landlords And Letting Agents
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Connection Type: Commnication Wires
    High Light:

    din rail mounted kwh meter

    ,

    din rail electric meter

    Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters



    The CA168-S  is a single-phase 60A (80A optional) SABS approved split meter in a DIN rail-mount housing. Ideal for new reticulation where housing is informal and the prepayment meters are mounted in a pole-top enclosure with respective customer interface units conveniently mounted in the dwellings below. Due to the small size and DIN rail housing, multiple Power-Rail meters can be mounted in a small enclosure thereby making installation cost effective.It is ideal for installation in Granny Flats, Individual Rented Units, Shops, Stores and Sporting Facilities.



     The meter consists of two parts: the Customer Interface Unit(CIU) and the Meter. The Customer Interface Unit is a compact unit with user-friendly display and keypad that can be installed in any convenient location inside the consumer’s premises. Connection to the remotely installed meter is via a pair of communications wires. The meter contains all critical metering, number decryption and load control functionality. It operates independently of the customer interface unit and is immune to any form of tampering on the customer interface.



    The meter is usually installed in a secure, locked enclosure - typically a pavement kiosk or pole-mounted equivalent. It is outside the consumer’s premises to facilitate easy inspection by the utility at any time, thus reducing the possibility of tampering.



    Major Features

    1) Compact meter design, with DIN rail-mount layout for high density stacking

    2) Programmable operating mode - Energy Limiting Mode, Prepayment or Credit metering

    3) Programmable software power limit

    4) Programmable monthly allocation of energy (MAE)

    5) Significant Reverse Energy (SRE) detection

    6) LED indicator of consumption and meter status

    7) High surge withstand capability for areas prone to lightning or other line surges

    8) High temperature withstand capability

    9) SABS 1524 and IEC 62052-11, IEC 62053-21 compliant





    Benefits for Landlords and Property Managers

    a) Easy to install and maintenance

    b) Ensure that tenants are paying for electricity before consuming it.

    c) Easily resolve disputes on the amount of electricity consumed.

    d) If rent is unpaid the owner can use the sale of recharge vouchers as a bargaining tool and thuscreate an huge incentive for the tenant to pay on time.



    Benefits for  Tenants:

    1) Are able to monitor their consumption by checking the CIU and adjusting their usage accordingly.

    2) Can be sure that they are paying for the correct amount of electricity they are using







    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-80A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Slim - Line Din Rail Kwh Meter Tariff Charge Prepaid Electricity Meters 0
