Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter

Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter

    • Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter
  • Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase Din Rail STS Prepaid PLC Meter Mounting: 35mm Din Rail
    Dimensions: 155x120x52mm Weight: 800 G
    Constant: 1000 Imp/kWh Accuracy: Class 1s
    Standard: IEC/SABS Com Port: Optical And Interrogation Port
    High Light:

    din rail power meter

    ,

    din rail electric meter

    Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter



    CA168-S PLC meter is a new generation of STS prepaid electric meter finished in a compact, single-phase, keypad based closure. It operates with  60Amp (80 Amp optional) per phase in a BS 5685 standard housing. Communication between the meter and the customer interface unit adopts G3 Power Line Carrier technology. (PLC).

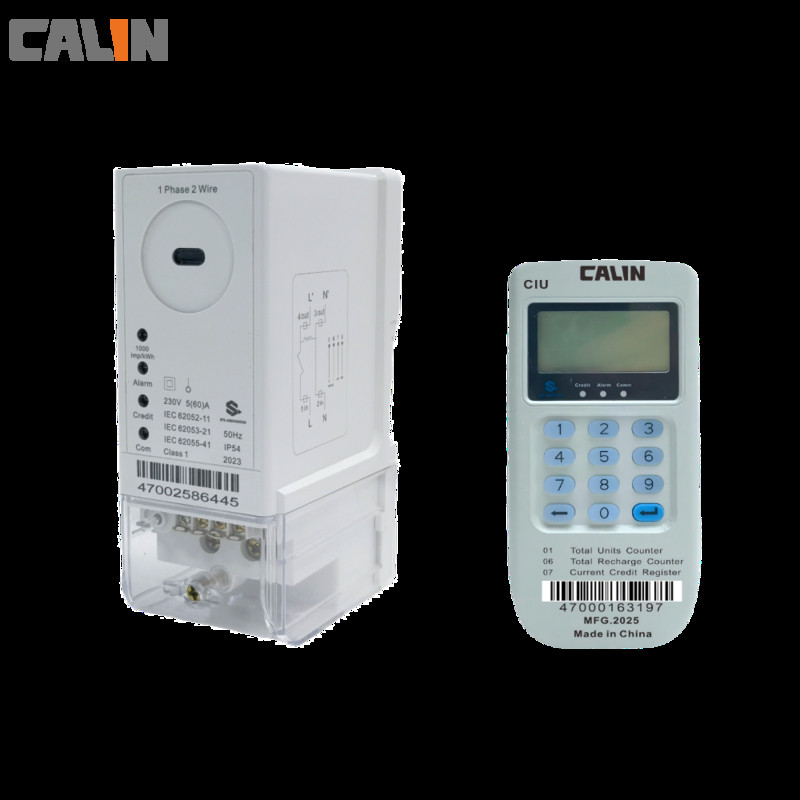

    The split prepayment meter consists of two parts, the meter and the customer interface unit. The meter is installed using existing household wiring; - no additional communication wires are required.

    The customer interface unit is a compact unit with a user-friendly keypad and display. It may be installed in any convenient location in the consumer’s home where there is an electrical plug point. The main meter(MCU) contains all critical metering, number decryption and load control functionality. It operates independently and is immune to any form of tampering on the customer interface unit.

    The meter is usually installed in a secure, locked enclosure, typically a pavement kiosk or pole-mounted equivalent. It is outside the consumer’s home to facilitate easy inspection by the utility at any time and to reduce the opportunity of fraud by tampering.



    The PLC wireless feature allows the meter to work with AMR AMI systematci solution for high end smart metering applications. A utility or a service provider can remotely interrogates meters as individual or in groups control, input settings for emergency unit, free basic unit, repayment policy, power limit threshold, TOU tariff, etc.,  making the CA168-S a superb revenue protection device.



    Major Features

    1) STS Compliant

    2) G3 PLC communication from meter to data concentrator for AMR AMI features

    3) Optical IR port for alternative communication

    4) Quick and easy to install - uses existing household wiring

    5) Fraud detection, neutral missing

    6) Significant Reverse Energy (SRE) detection

    7) Programmable power limit and low power warnings

    8) Prepayment or credit metering modes selectable

    9) Language independent user interface

    10) Diagnostic LED’s on the meter

    11) Backlighting on customer interface display, audible and visual low credit alarm,

    12) High surge withstand capability for areas prone to lightning or other line surges





    User Benefits

    a) Ideal for retrofitting or replacement of conventional meters in apartment blocks and housing estates

    b) Compact and slim-line design makes installation quick and low cost

    c) IEC 62056-21 compliant optical allows utility to access information stored inside the meter

    d) Allows landlords, complex manager or utility to input charge, tariff, debt collection settings

    e) The meter can be switched between prepayment and credit mode

    f) Two way communication for remote access







    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    Transparent Din Rail Mounted Kwh Meter 800g Single Phase Electric Meter 0
