Shenzhen Calinmeter Co,.LTD
products
products
Home > products > Din Rail KWH Meter > Mozambique Din Rail KWH Meter , Single Phase Prepaid Electricity Meter With Split CIU

Mozambique Din Rail KWH Meter , Single Phase Prepaid Electricity Meter With Split CIU

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA168-S

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

din rail power meter

,

din rail electric meter

Mounting:
35mm Din Rail
Dimensions:
155x120x52mm
Weight:
700 G
Constant:
1000 Imp/kWh / 1600 Imp/kWh
Accuracy:
Class 1
Communication:
Two Wire/ PLC/ RF/RS485/optical Port
Mounting:
35mm Din Rail
Dimensions:
155x120x52mm
Weight:
700 G
Constant:
1000 Imp/kWh / 1600 Imp/kWh
Accuracy:
Class 1
Communication:
Two Wire/ PLC/ RF/RS485/optical Port
Mozambique Din Rail KWH Meter , Single Phase Prepaid Electricity Meter With Split CIU

Mozambique Din Rail Single Phase Prepaid Electricity Meter with split CIU

The CA168-S Din Rail prepaid electricity meter is an STSA certified meter, compliant with the SANS1524 series standards. This meter type is widely used in  African counties such as Kenya, Mozambique, Malawi, Ethiopia, South Africa, Angola, Botswana, and etc.  The Din Rail mounting design is for saving space and multi-metering clusters, and most applicable for multi-dweller complex or apartment buildings.



The split design is designed  for maximum security against fraud, while retaining the customer's convenience. The main measurement and control unit (MCU) is in Din-Rail structure. The MCU is mounted inaccessible for the user while the CIU is installed at a point of convenience within the customer's premises. The customer can always check his/ her  power usage and related information by the customer interface unit (CIIU). The communication between MCU and CIU is performed by the power line carrier (PLC), current loop, RF or other communication definded by the costomer.



With MCU centralized installation, service providers will not need to enter customers' premises during the process of checking and maintenance, which greatly reduces the management cost and improves efficiency.



Major Features



  1. Support Bi-directional and Uni-directional measurement
  2. Neutral current measurement
  3. Prepayment/post-payment mode switch
  4. programmable auto scroll display item
  5. Adjustable power limit trip
  6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.
  7. Reverse energy measurement SRE
  8.  Information toggled by codes
  9.  Tamper trip protection : neutral missing



 Benefits for service providers or land lords

a) Compact and slim-line design

b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

d) 15 year designed life

e) Enhanced revenue protection through flexible payment control





Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II

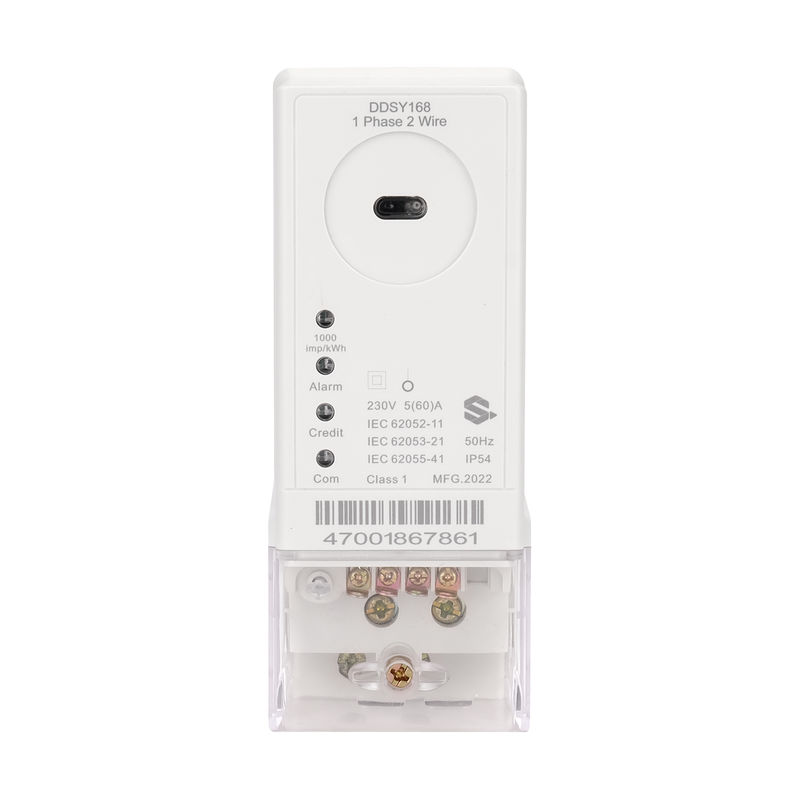

Mozambique Din Rail KWH Meter , Single Phase Prepaid Electricity Meter With Split CIU 0

Mozambique Din Rail KWH Meter , Single Phase Prepaid Electricity Meter With Split CIU 1
