Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |
Mini Grid Single Phase Prepaid Kwh Meter |
Latch Relay: |
Build-in |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Consumption Rate: |
1000 Imp/kWh |
Data Port: |
Infrared Optical |
Communication: |
RF |
Output Frequency: |
50/60Hz |
Product Name: |
Mini Grid Single Phase Prepaid Kwh Meter |
Latch Relay: |
Build-in |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Consumption Rate: |
1000 Imp/kWh |
Data Port: |
Infrared Optical |
Communication: |
RF |
Output Frequency: |
50/60Hz |

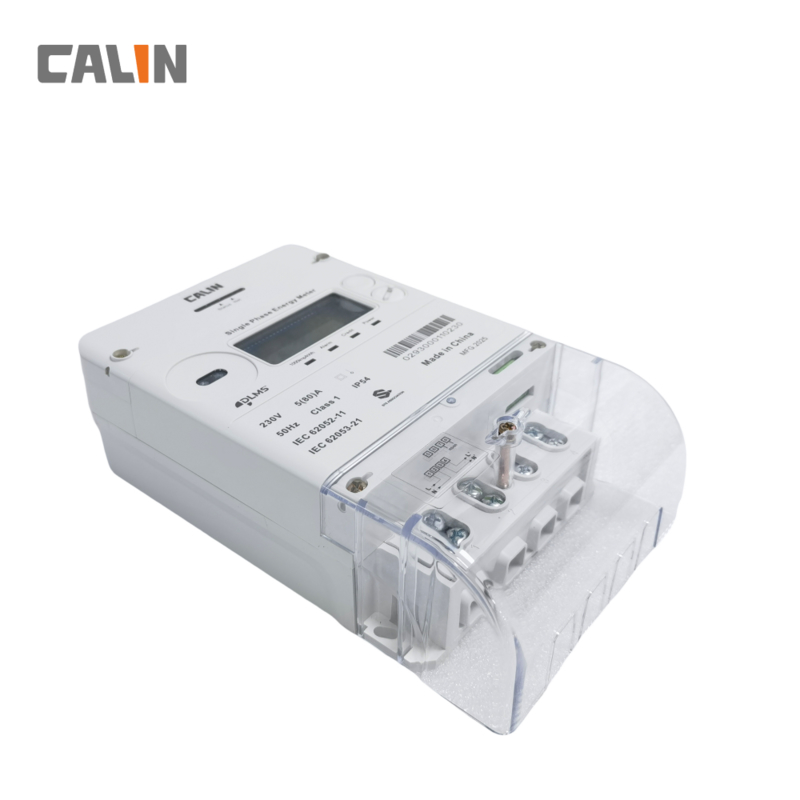

20 Digit CE SABS IEC Prepaid Electricity Meters With Plug In Modem
20 Digit Single Phase Smart Prepaid Kwh Meter with plug-in modem
Utility benefit
Easy connection to User Interface Unit (UIU) for split type applications
RF / PLC/ GPRS wireless communication with a head-end AMR/AMI server
Time of Use (TOU), multi-tariff, holiday setting.
Advanced load control and disconnection features
Specifications:
| Nominal voltage Un | 220/230/240 V |
| Limited voltage | 70%~120%Un |
| Nominal frequency fn | 50-60Hz+5% |
| Basic current(Ib) | 5-10A |
| Maximum current(Imax) | 60-100A |
| Starting current(Ist) | 20mA |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | 25℃ to+70℃ |
| Storage temperature | 40℃ to+85℃ |
| Insulation level | 4kV rms for 1min |
| Impulse voltage withstand | 8kV, 1.2/50 μs |
| Air discharge | 16kV |
| Immunity to HF fields | |
| 80MHz to 2GHz with load | 10V/m |
| 100kHz to 1GHz without load | 30V/m |
| Fast transient burst test | 4kV |
| Meter shell Protection Rate | IP54(IEC60529) |
| Insulation System Classification | Protective Class II |
Major Features
20 digit (Standard Transfer Specification) STS encryption
Detection of significant reverse energy (SRE)
IEC62056-21 compliant port allowing for easy data interrogation
Disconnects on overload and no credit
Dual power source working on both prepaid and credit mode
Programmable load limit and low credit warning
Detection and record tamper event such as cover open, reversal, black-out, etc.
Easy access to 12 months historical consumption data and last 5 token entered
FAQ
1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.
2. Are OEM and ODM available?
* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.
Q: What are your main products?
A:Our main products are Electricity Meters.
4. How about your product warranty?
* We offer one-year warranty upon delivery.
5. How about the aftersales support?
* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
