Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: DIN RAIL Energy Meter Latch Relay: Build-in
Dimensions: 155x120x52mm Weight: 700 G
Consumption Rate: 1000 Imp/kWh Data Port: Infrared Optical
Communication: RF/RF Output Frequency: 50/60Hz
High Light:

IEC Prepaid Electricity Meters


SABS Prepaid Electricity Meters


SABS IEC DIN Rail Energy Meter

CE SABS IEC Prepaid Electricity Meters PLC RF Wireless Communication

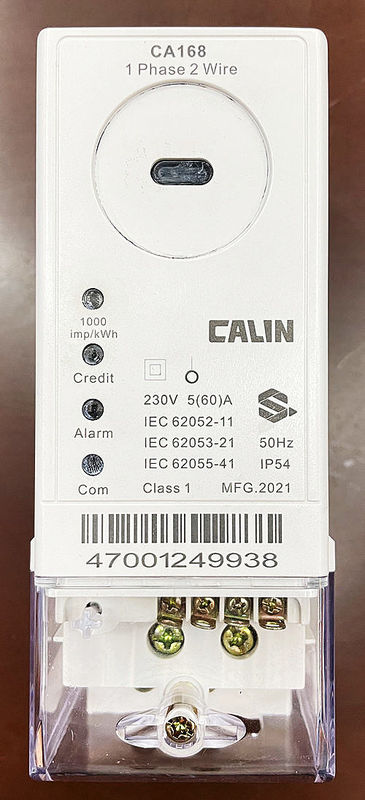

SIngle phase DIN rail energy meter with PLC/RF wireless communication


Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.


IEC Prepaid Electricity Meters 0


Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption

  2. Detection of significant reverse energy (SRE)

  3. IEC62056-21 compliant port allowing for easy data interrogation

  4. Disconnects on overload and no credit

  5. Dual power source working on both prepaid and credit mode

  6. Programmable load limit and low credit warning

  7. Detection and record tamper event such as cover open, reversal, black-out, etc.

  8. Easy access to 12 months historical consumption data and last 5 token entered

 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications

  2. RF / PLC/ GPRS wireless communication with a head-end AMR/AMI server

  3. Time of Use (TOU), multi-tariff, holiday setting.

  4. Advanced load control and disconnection features



Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II



IEC Prepaid Electricity Meters 1IEC Prepaid Electricity Meters 2



IEC Prepaid Electricity Meters 3


1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.


2. Are OEM and ODM available?

* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.


  1. Q: What are your main products?
    A:Our main products are Electricity Meters.


4. How about your product warranty?

* We offer one-year warranty upon delivery.


5. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
