| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | Mini Grid Single Phase Prepaid Kwh Meter | Latch Relay: | Build-in |
|---|---|---|---|
| Consumption Rate: | 1000 Imp/kWh | Data Port: | Infrared Optical |
| Communication: | RF | Output Frequency: | 50/60Hz |
| High Light: | 20 Digit Electric Prepaid Meter,CE Single Phase Electric Meter,IEC Approved Electric Prepaid Meter |
||

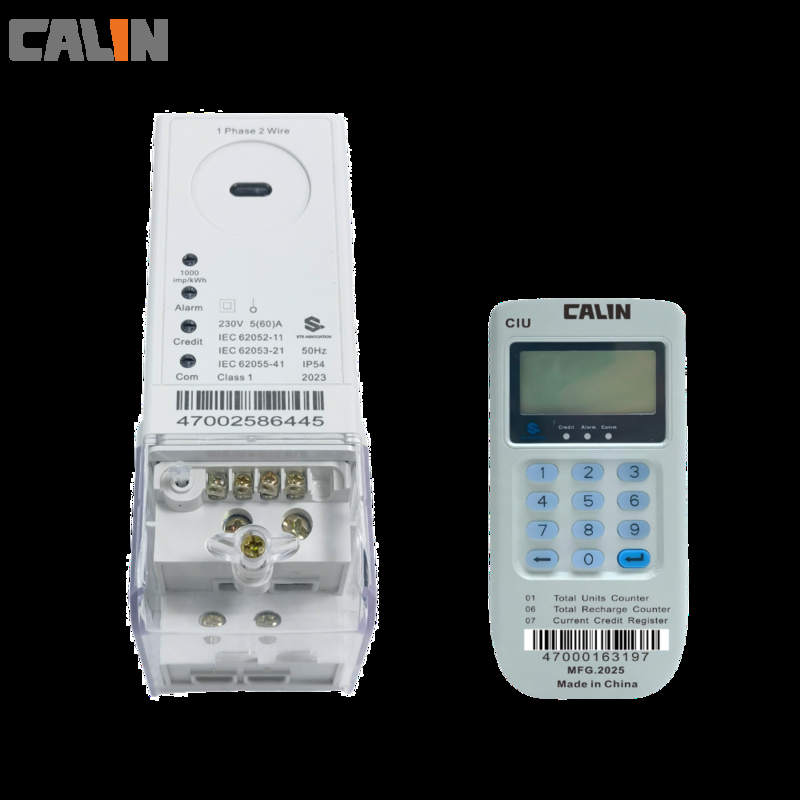

20 Digit CE SABS IEC Prepaid Electricity Meters With Plug In Modem
20 Digit Single Phase Smart Prepaid Kwh Meter with plug-in modem
Utility benefit
Easy connection to User Interface Unit (UIU) for split type applications
RF / PLC/ GPRS wireless communication with a head-end AMR/AMI server
Time of Use (TOU), multi-tariff, holiday setting.
Advanced load control and disconnection features
Specifications:
| Nominal voltage Un | 220/230/240 V |
| Limited voltage | 70%~120%Un |
| Nominal frequency fn | 50-60Hz+5% |
| Basic current(Ib) | 5-10A |
| Maximum current(Imax) | 60-100A |
| Starting current(Ist) | 20mA |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | 25℃ to+70℃ |
| Storage temperature | 40℃ to+85℃ |
| Insulation level | 4kV rms for 1min |
| Impulse voltage withstand | 8kV, 1.2/50 μs |
| Air discharge | 16kV |
| Immunity to HF fields | |
| 80MHz to 2GHz with load | 10V/m |
| 100kHz to 1GHz without load | 30V/m |
| Fast transient burst test | 4kV |
| Meter shell Protection Rate | IP54(IEC60529) |
| Insulation System Classification | Protective Class II |
Application Of Single Phase Electric Meter
1. Measure, monitoring power distribution system parameters.
2. Collect energy consumption data that cost center analysis needs.
3. Limit monitor alarm(such as over voltage, power consumption).
4. Power quality analysis.
5. Green building or DC
Major Features
20 digit (Standard Transfer Specification) STS encryption
Detection of significant reverse energy (SRE)
IEC62056-21 compliant port allowing for easy data interrogation
Disconnects on overload and no credit
Dual power source working on both prepaid and credit mode
Programmable load limit and low credit warning
Detection and record tamper event such as cover open, reversal, black-out, etc.
Easy access to 12 months historical consumption data and last 5 token entered
