Product Details
Brand Name: Calin
Model Number: CA768
Payment & Shipping Terms
Minimum Order Quantity: 500
Delivery Time: 6-8

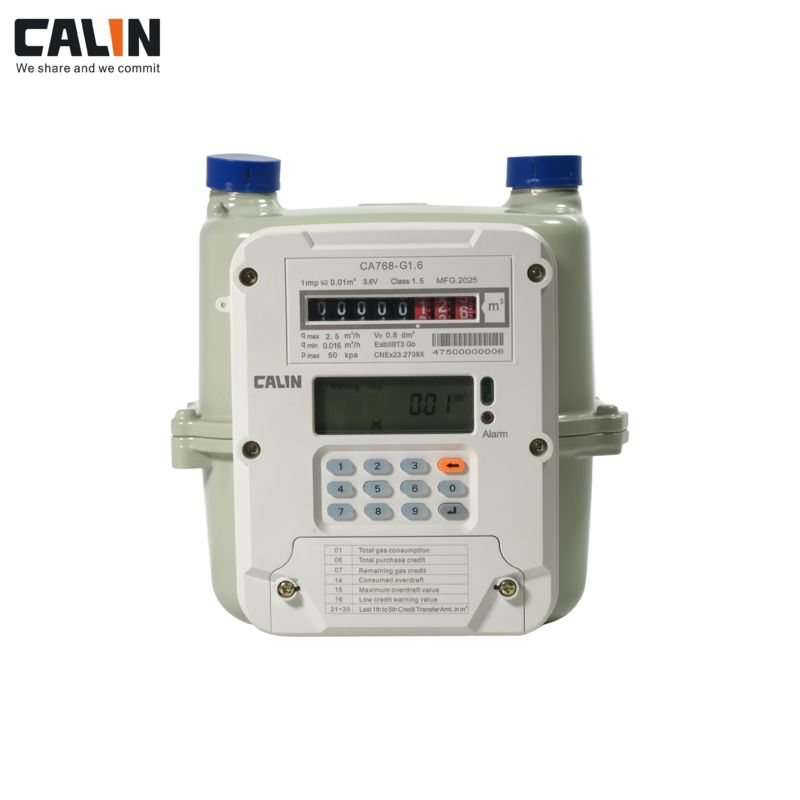

The CA768-K02 is a high-precision diaphragm gas meter engineered for diverse gas applications and outfitted with STS (Standard Transfer Specification) prepaid functionality. Notably, it boasts excellent resistance to corrosion, which guarantees durable performance over time. Constructed in accordance with stringent international standards, the CA768-K02 ensures both reliability and measurement accuracy.
Following installation, a Customer Interface Unit (CIU) featuring a keyboard is set up nearby for customer access. This CIU enables users to effortlessly monitor their account balance, examine past consumption data, and conveniently add credit.
In essence, the CA768-K02 delivers a dependable, precise, and user-centric approach to gas metering. Its key attributes include robust corrosion resistance, compliance with global standards, and an intuitive CIU that simplifies management for end-users.
Features:
·Battery life 10 years
·Data storage 10 years
·Optional valve leakage warning
·Low power usage and low failure rate
·LORAWAN/NB-IOT/GPRS/3G(optional
·Low credit warning and low battery alarm
·Meter body approved in accordance with MID by CMI ·Recharge by inputting20-digit token code via keypad
Metrological Parameters
| Type |
G1.6 |
G2.5 |
G4 |
| NominalFlowRatem³/h |
1.6 |
2.5 |
4 |
| MaximumFlowRatem³/h |
2.5 |
4 |
6 |
| MinimumFlowRatem³/h |
0.016 |
0.025 |
0.040 |
| Cyclicvolume dm³ |
0.7 |
1.2 |
2 |
| WorkingPressureKPa |
0.5-50KPa |
||
| Maximumpermissibleerror% |
Qmin<Q<0.1Qmax:±3;0.1Qmin<Q<0.1Qmax:±1.5 |
||
| Standardcompliance |
OIMLR137(2012)/EN1359:1998/A1:2006 |
||
| Pressure LosskPa |
<200 |
||
| MaximumReadingm³ |
99999.9 |
||
| Weight |
2.4kg |
||
