Model Number: DTS368-D
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |
3 Phase Din Rail Watt Hour Meter |
Mounting: |
35mm Din Rail |
Dimensions: |
125mm X 88mm X 73mm |
Measring Range: |
250 G |
Constant: |
200 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC62053-21,IEC62052-11 |
Product Name: |
3 Phase Din Rail Watt Hour Meter |
Mounting: |
35mm Din Rail |
Dimensions: |
125mm X 88mm X 73mm |
Measring Range: |
250 G |
Constant: |
200 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC62053-21,IEC62052-11 |
Four Wire Three Phase Kilowatt Hour Meter Rtu Protocol Prepay Electricity Meter

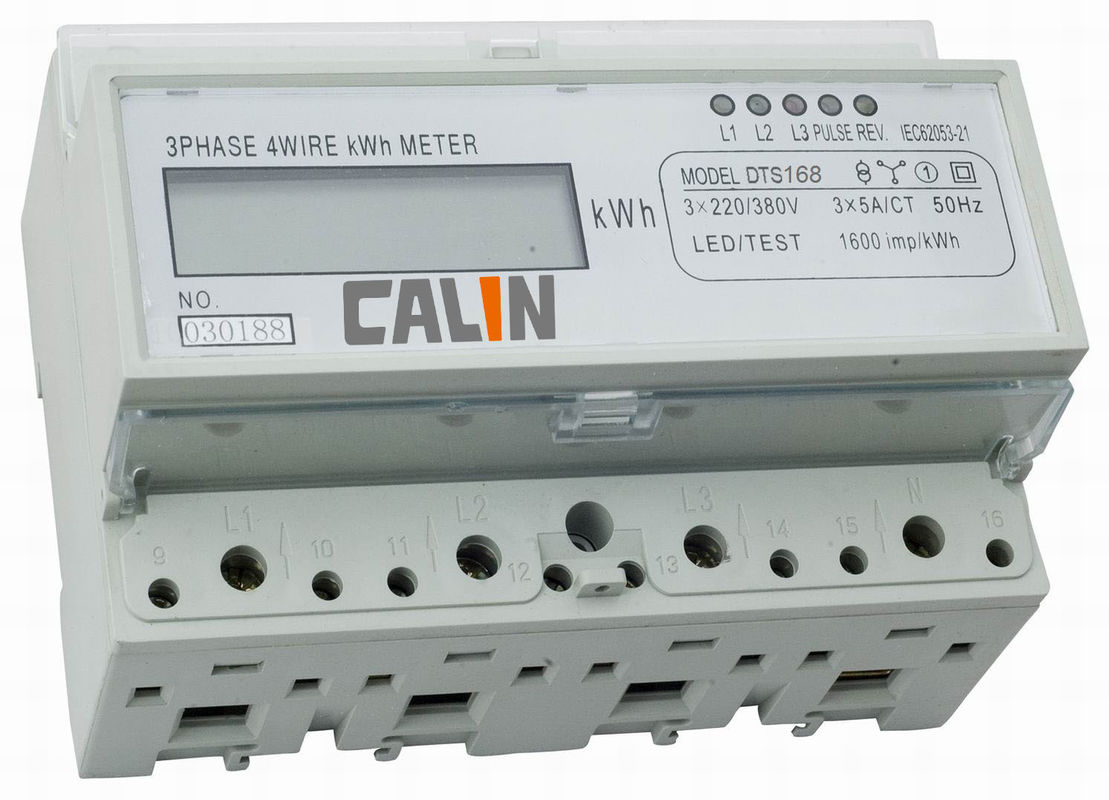

The DTS368-D is a three phase three wire or four wire DIN-rail meter for active & reactive energy consumption measurement. The Din Rail energy meter is a new modern smart meter: three-phase ( 7modular ), using advanced technology, ensure quality and stability, also has good resistance electromagnetic interference performance, low power consumption, with international standards, which has following advantages: small size, light weight, high precision, suitable for office building and shipping mall, Air port, Distribution box.
Main feaures
♦35mm standard DIN rail installation, comply with standard DIN EN50022.
♦7 modular 125mm width.
♦LCD display ( 6+2 digits six integers, and two decimal ) maximum display 999999.99 kWh
♦Standard IEC62053-21,IEC62052-11 compliant
♦Highly reliable and calibration free
♦LED indicates phase A, B, C, ,impulse and reverse.
♦Automatically detect direction of load current, If the LED
♦Measure three phase three wire active energy or three phase four wire active energy.
♦Direct connect operation maximum 100A or CT operation ( 1.5-6A )
♦Meter reading via RS485 Modbus RTU protocol
♦Three phase voltage ( V ), Current(A), Active power ( KWH ), Reactive power ( KVARH ), Power factor ( COS )
♦Multi Function ( KVAR reactive energy consumption )
♦Multi RATE: Total electric energy, sharp(T1), peak(T2), flat(T3), valley(T4)
♦12 months historical active and reactive energy consumption record
Specifications:
|
|
CT connected meter |
|
Voltage(v) |
3×230/400V |
|
Operational voltage |
±70%Un |
|
Current(A) |
|
|
- Iref |
1.5A |
|
-Itr |
0.15A |
|
-Imax |
6A |
|
-Imin |
0.075A |
|
-Ist |
3mA |
|
Power consumption of current circuits(VA) |
< 0.01 |
|
Power consumption of voltage circuits(W) |
< 1.3W |
|
General data |
|
|
Frequency (Hz) |
50 |
|
Memory back-up |
EEprom |
|
Environment resistance to heat and fire |
Terminal 960°C Cover 650°C |
|
upper |
ABS+PC |
|
lower |
ABS+PC |
|
Pulse output |
|
|
Pulse width(ms) |
80 |
|
Pulse constant(imp/kWh) |
6400 |
|
LED constant |
6400 |
|
Width (mm) |
126 |
|
Height (mm) |
104.5 |
|
Depth (mm) |
60 |
