| Product Name: | Mono Phase Mini Data Concentrator | Feature: | Communication Modular Unit |
|---|---|---|---|
| Dimensions: | 160x112x58mm | Display: | Backlit LCD 8 Digits + Icons |
| Network: | Self-routering Meshwork | Material: | ABS Blend With Fire Retardant |
| High Light: | gas prepayment meter,prepayment gas meter,Rf Prepaid Gas Meter |
||

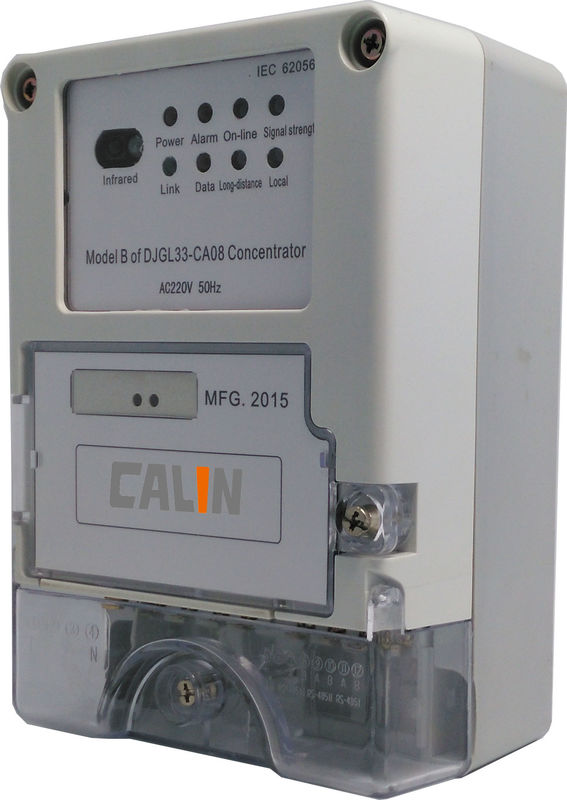

Data concentrator for RF Gas Meter and GasAMI Solutions Plug - in GPRS Module
The mini concentrator serves as a gateway between the head-end server system and the gas meters. It can handle upto 32 group metering points of over 200 pcs submeters. The mini DCU is a superb data collection device in villages, community blocks and multi-storey buildings. Its self-routering feature can establish a RF meshwork to manage the data exchange between the meter and the HES . The uplink to HES is available with GPRS or ethernet. The concentrator plays an important role in reducing the network burden, and backup the entire metering system structure.
In the places where many meters are situated within1 kilometer radiance, mini-concentrator is the most economic and reliable means of managing various meters.
Main Features
1) GPRS / Ethernet connectivity
2) IR optical and Lora-RF communication
3) Automated meter reading
4) Load balance control over sub-meters
5) Non-volatile memeory for data retention in absence of power
6) Comply with IEC 62056-21 and DLMS/COSEM standards
Utility benefits
1) Economic data connectivity solution
2) Low operational and maintenance cost
3) Flexible contractual setting with meters
5) On demand and load shedding intrusive control over consumers
6) 20 years' lifespan and auto update feature
Specifications:
|
Electrical parameters: |
|
|
Voltage |
|
|
Nominal voltage Un |
220V |
|
Extended operating voltage range |
80%~115%Un |
|
Limited voltage |
70%~120%Un |
|
Frequency |
|
|
Nominal frequency fn |
50Hz |
|
tolerance |
-6%~2% |
|
Current |
|
|
Basic current(Ib) |
1.5(6)A |
|
Maximum current(Imax) |
6A |
|
Starting current(Ist) |
3mA |
|
Active energy constant |
6400imp/kWh |
|
Measurement Accuracy |
|
|
Active energy |
1% |
|
Reactive energy |
2% |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<10W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Working temperature |
-30℃ to+70℃ |
|
Limited working temperature |
-40℃ to+80℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
|
|
|
Mechanical requirements |
|
|
Meter shell Protection Rate |
IP51 |
|
Protection |
classII |
