20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter

20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter

20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter
20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter
20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 20 Digits Token 3-Phase Prepaid Energy Meter, Low Credit Warning Tamper Protection Standard: SANS1524-1 , IEC62056-21 , IEC62053-11
Dimensions: 272x127x77mm Weight: 2.5kg
Display: LCD Accuracy: Class 1s
Communication: RS485/PLC /RF/GSM/GPRS Output Voltage: 220v/230v/240v
High Light:

IP54 3 Phase Energy Meter

,

IP54 Three Phase Energy Meter

,

SANS 1524-1 3 Phase Energy Meter

20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter



20 Digits Token Three Phase Energy Meters , Low Credit Warning Tamper Protection

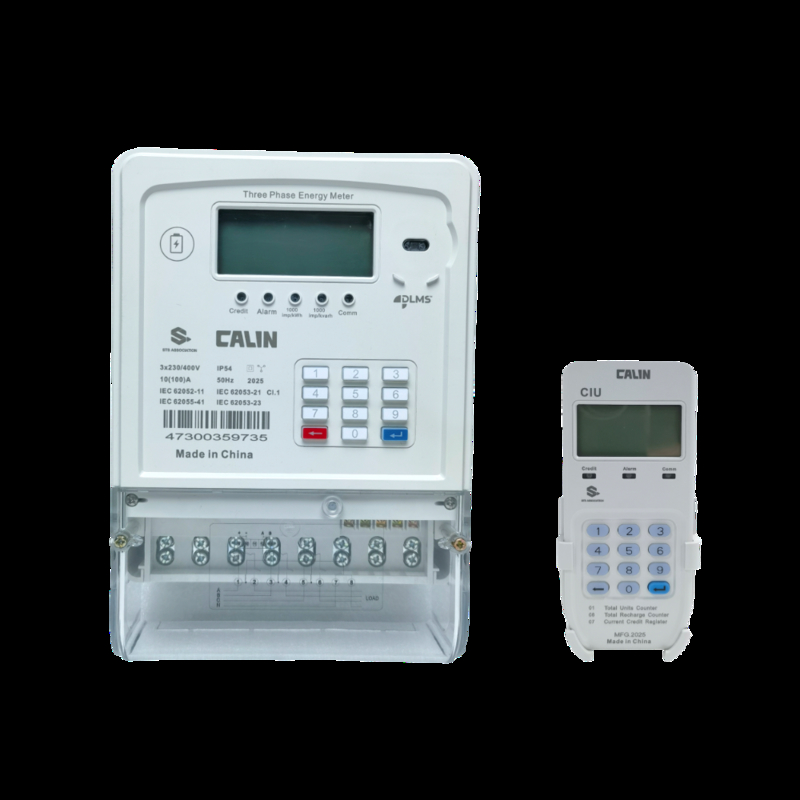

The CA368 is a three phase four-wire, compact design  keypad based and STS token operated prepayment meter. It is  in a compact BS housing and extrended transparent terminal cover. The meter is manufactured by  ISO9001 standard with IP54 protection rating. Thanks to a wide range of power supply ( Un -40% +20%) and improved RF immunity withstand of 30V/m,  it can operates in harsh environments.

The CA368 is ideal when separating accommodation; i.e. flats, apartments, houses offices where you have only one power supply. It is usually very expensive to pay a utility company to add extra supplies. Tiger Meters offer a low cost alternative and it allows you to keep control of your electricity usage.

Main Features

20 digits Token code topup
Up to 13kV/6.5kA surge protection for lightening and other line surges
IR optical & RS485 port allowing for easy data interrogation
Shut off when credit finishes
Programmable power limit and low credit warning
Tamper detection and event record such as opening cover, reverse connection, black-out
Dual power source working on both prepayment and credit mode
Maximum demand measurement and load profiling (on request)


User Benefit

Easy to install for both new reticulation and retrofitting due to BS mounting
Low operational and inventory cost
Can be ordered with PLC/ RF/ GPRS/GSM communication for AMR/AM I features
Meter provides various valuable information by punching in Calin's short codes
instant investment back, debt collection

Specifications:



Electrical parameters:

Electro Magnetic Compatibility



Nominal voltage Un

3x240 voltage

Electrostatic discharges



Limited voltage

60%~120%Un

Contact discharge

8kV

Frequency

50/60Hz+5%

Air discharge

16kV

Basic current(Ib)

10A

Electromagnetic RF fields



Maximum current(Imax)

100A

27MHz to 500MHz typical

10V/m

Starting current(Ist)

30mA

100kHz to 1GHz typical

30V/m

Active energy constant

400imp/kWh

Fast transient burst test

4kV

Accuracy



Mechanical requirements



Active energy to IEC62053‐21

Class1.0

Protection Rating

IP54

Reactive energy to IEC62053‐23

Class2.0

Insulation Classification

Protective Class II

Power Consumption



Maximum cable size

10 mm

Power consumption in Voltage circuit

<2W <8VA





Power consumption in current circuit

<1VA



Temperature range





Operation meter

25 to+70℃



Storage

40 to+85℃







Insulation strength



AC Insulation strength

4kV at 50Hz during 1min



Impulse voltage 1.2/50μs mains connections

8kV




20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter 0



20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter 1
20 Digits Token IP54 3 Phase Energy Meter Three Phase Energy Meter 2
