STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters

STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters

    • STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters
  • STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-g

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 3 Phase Electric Prepayment Meter Standard: IEC62053, DLMS
    Dimensions: 265x170x77mm Weight: 2.5kg
    Communication: GSM GPRS Ethernet Accuracy: Class 1s
    Com Port: Optical RS485 Bore Diameter: 10mm
    High Light:

    three phase energy meters

    ,

    3 phase kwh meter

    STS Commercial 3 Phase Electric Meter , Prepayment Electricity Meters

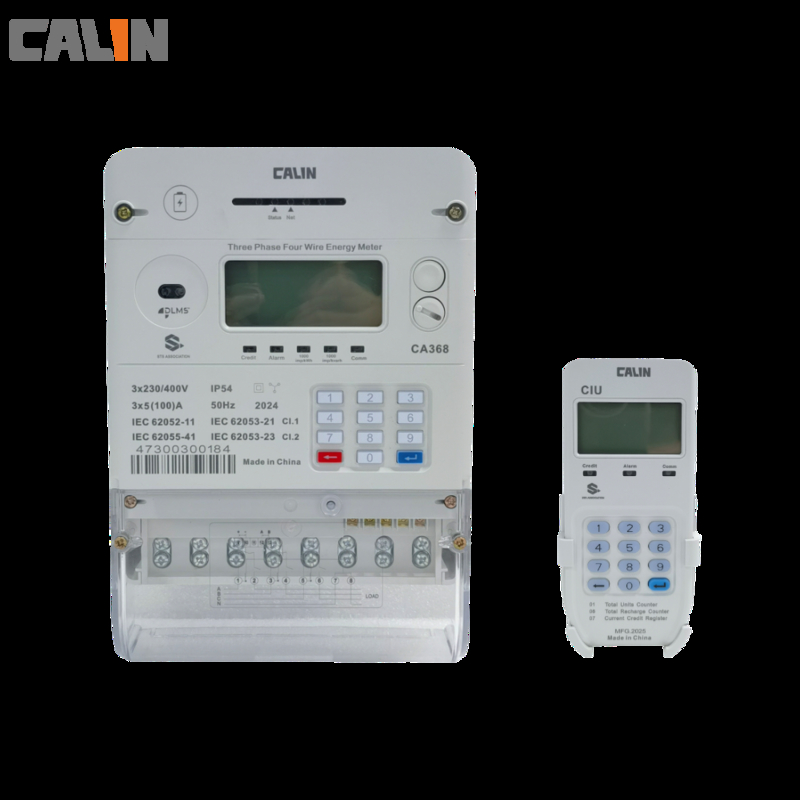

    The CA368-G is a GSM / GPRS operated three phase four wire electric smart meter for light commercial and industrial metering applications. It  supports state-of-art high profile real-time data collection as well as classic metering functions. The meter records four-quadrant load profile at preset intervals and  operates in prepayment and post payment mode as per command from the head-end server station.



    The meter is produced by ISO9001 standards and operates in very harsh outdoors and indoors environments , owing to its wide range ( Un -40% +20%) of voltage with  RF immunity of 30V/m. The CA368-G series is also intended  for  measurement of both active and reactive energy. A 2400 bps baud rate optical port for data interogation is a standard spec of entire series..



    The GSM / GPRS functions of CA368-G allows the meter to interact with  the head-end server  in a two-way communication via TCP/IP or vpn through local point-to-point GSM / GPRS networks.  This setup is making installation and fitting simpler and faster. A utility or service provider can remotely read and collect metering data by setting scheduled task with head-end server station. Local information can be toggled up to show by punching in different codes..



     Main Features

    1) Built for both direct connection and CT connection type

    2) Operate in prepayment and credit mode

    3) Load Profile record at adjustable intervals

    4) Maximum demand and load profiling record

    5) Tamper protection, magnetic immunity, data retention in power failure, cover open detection

    6) Multi-rate and multi billing cycles, Time of Use tariff management

    7) IEC 62056-21 and DLMS/COSEM compliant



     Key benefits

    a) Provide full house instantaneous metering data as KW, V, A, PF measurable

    b) Reduce operational and managementcost

    c) Real-time monitoring online

    d) Revenue protection by flexible consumer contractual control

    e) Build in load switch allows for load management on demand and remote

    f) Long life time design



    Specifications:





    Electrical parameters

    Nominal voltage Un

    3x220/230/240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
