Multi - Rate Power Three Phase Energy Meters Keypad Digital Electricity Meter

Multi - Rate Power Three Phase Energy Meters Keypad Digital Electricity Meter

  • Multi - Rate Power Three Phase Energy Meters Keypad Digital Electricity Meter
Multi - Rate Power Three Phase Energy Meters Keypad Digital Electricity Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 3 Phase Keypad Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053-21
Dimensions: 265x170x77mm Weight: 2.5kg
Display: 8-digit Backlit LCD Accuracy: Class 1s Active Class 2s Reactive
Com Port: Infrared Optical Bore Diameter: 10mm
High Light:

three phase energy meters

,

3 phase kwh meter

,

sts prepayment three phase meter

Multi - Rate Power Three Phase Energy Meters Keypad Digital Electricity Meter

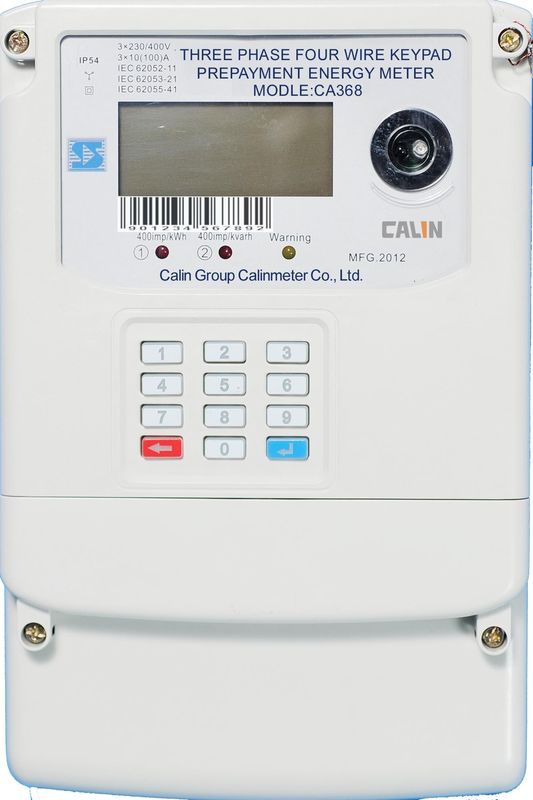

The CA368  is a keypad based STS prepayment three phase watt-hour energy meter. It is the basic type of Calin's poly / triple phase prepaid meters. The meter allows  100 Amp per phase and 30Vm withstand of rugged RF immunity, fitting into even very harsh environments. It is built in a compact BS footprint housing, ideal for both new and retrofitting installations. The meter is manufactured by  ISO9001 standards, and it is used for large residential houses, small commercial and industrial environments.



The CA368 allows the service provider and landlord to set starting value, up to 4 rates on Time of Use basis, free basic units, emergency units, extra charge and debt collection principles. The meter offers the utmost revenue protection and collection convenience.



The meter is also available with a split type of connection to a customer interface unit as CIU. CIU is a keypad based display unit. It is installed with customer's premises with main meter locked away . This feature greatly  lowers the tamper and fraud by managing many main meters in one place away from the customers.



Major Features

a) Operates in four wires and three wires networks

b) Multiple measurement channels with full quadrant energy measurement

c) 20 digit (Standard Transfer Specification) STS encryption

d) RS485 and infrared optical for data extraction

e) Disconnects on overload and no credit

f) Programmable power limit and low credit warning

g) Tamper and fraud detection such as opening cover, reverse connection, black-out

h) Recall 12 months historical usage data and last 5 entered token



Utility Benefits

1) Easy to install and deploy, especially for retrofitting installations

2) Communication port prepared for AMR AMI functions

3) Build-in clock allows for time based multi-rates

4) Retrieve historical data locally and remotely

5) Full house metering data for better management



Specifications:





Electrical parameters

Nominal voltage Un

3x240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm
