LCD Display STS Prepaid 3 Phase Electric Meter With Automatic Meter Reading System

LCD Display STS Prepaid 3 Phase Electric Meter With Automatic Meter Reading System

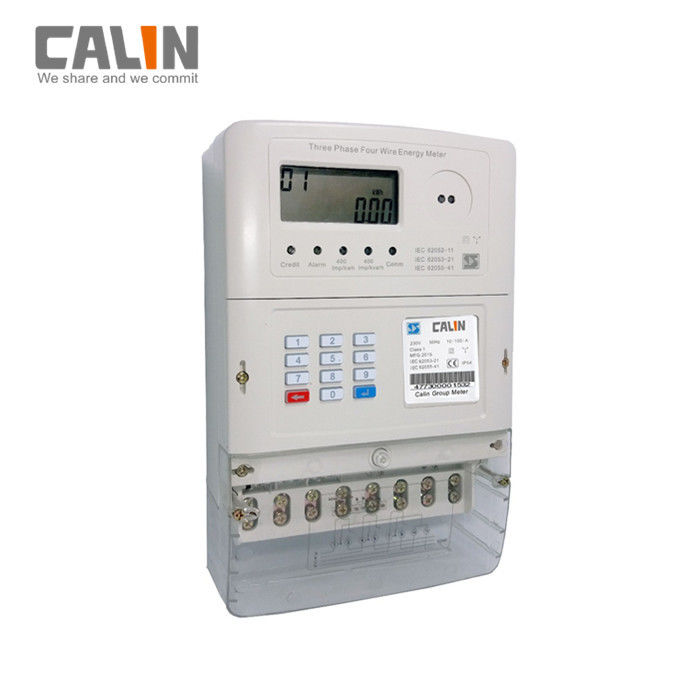

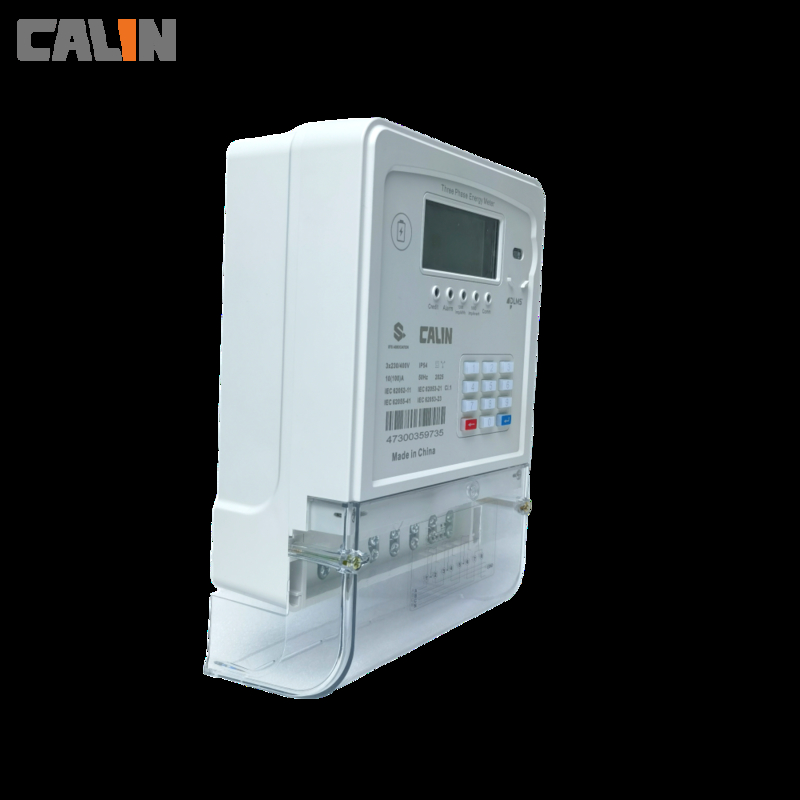

The CA368 is a three phase four-wire, compact design  keypad based and STS token operated prepayment meter. It is  in a compact BS housing and extrended transparent terminal cover. The meter is manufactured by  ISO9001 standard with IP54 protection rating. Thanks to a wide range of power supply ( Un -40% +20%) and improved RF immunity withstand of 30V/m,  it can operates in harsh environments.

The CA368 is ideal when separating accommodation; i.e. flats, apartments, houses offices where you have only one power supply. It is usually very expensive to pay a utility company to add extra supplies. Tiger Meters offer a low cost alternative and it allows you to keep control of your electricity usage.

Main Features

• 20 digit (Standard Transfer Specification) STS encryption
• Up to 13kV/6.5kA surge protection for lightening and other line surges
• IR optical & RS485 port allowing for easy data interrogation
• Disconnects on overload and no credit
• Programmable power limit and low credit warning
• Tamper detection and event record such as opening cover, reverse connection, black-out
• Dual power source working on both prepayment and credit mode
• Maximum demand measurement and load profiling (on request)


User Benefit

• Easy to install for both new reticulation and retrofitting due to BS mounting
• Low operational and inventory cost
• Can be ordered with PLC/ RF/ GPRS/GSM communication for AMR/AM I features
• Meter provides various valuable information by punching in Calin's short codes
• Flexible payment control setting

Specifications:
